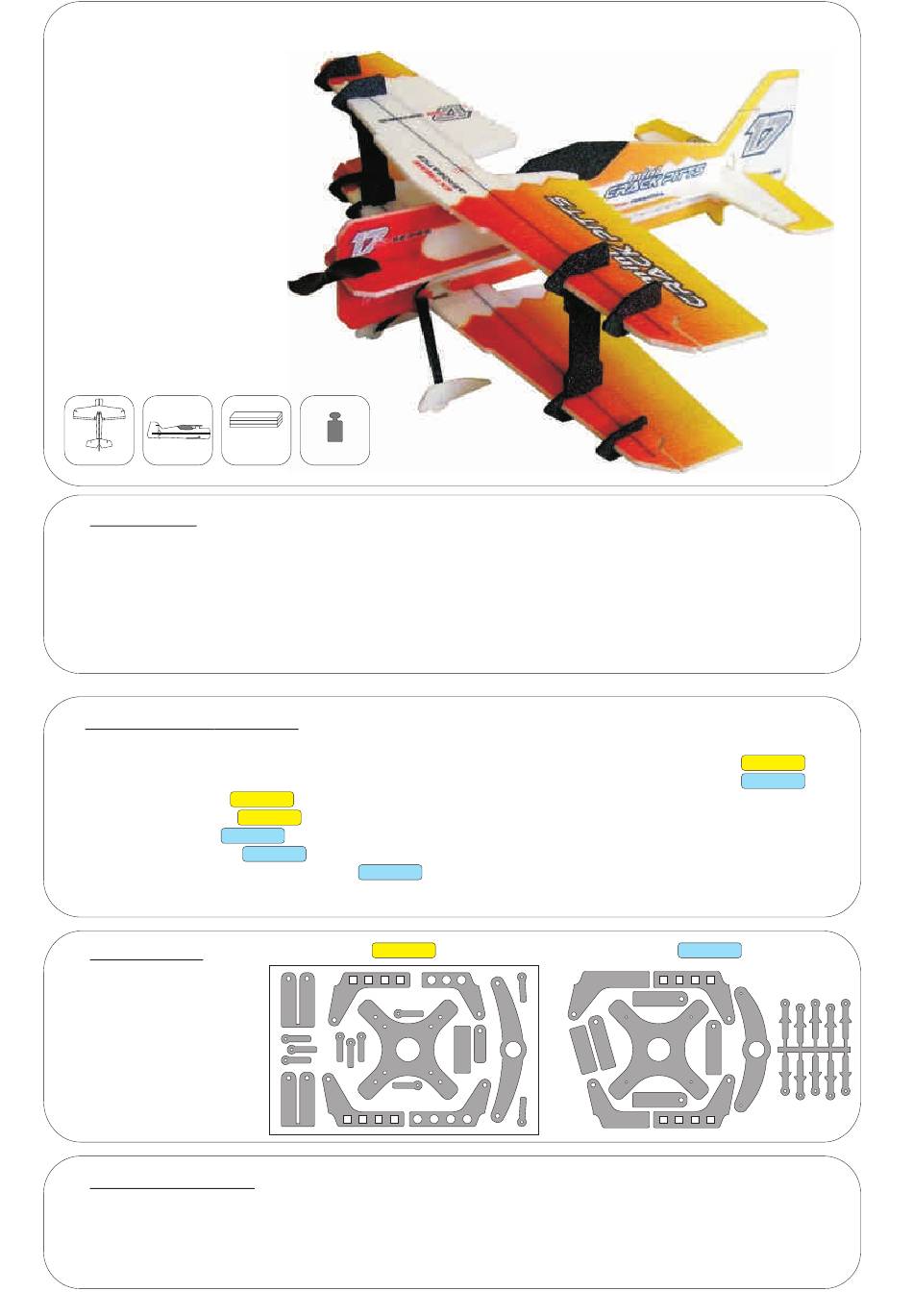

RC Factory Crack Pitts Mini Manual

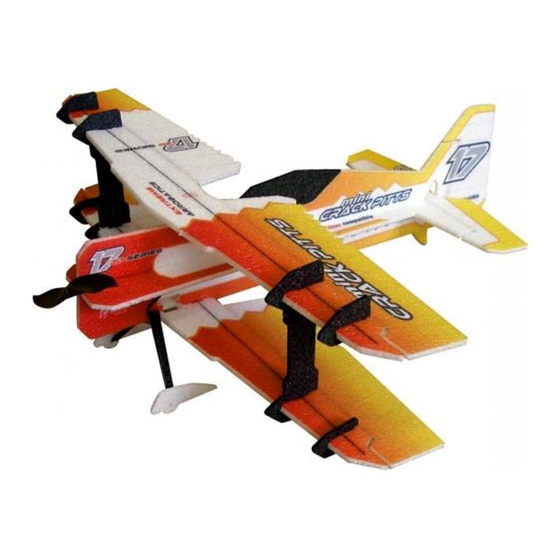

Crack Pitts Mini
240-320 mAh
560 mm 600 mm
2s Li-pol
Kit Contents:
*Fuselage
*Wings (Lower+Upper)
*Backbone
*Horizontal Stab
*Vertical Stab
*SFG's
Acessory Pack Contents:
Plywood reinforcement
Control/servo horn set - plastic frame
12x Plastic clevises
Variant A
Heatshrink tube 7cm
Variant A
6x Plastic clevises
Variant B
Heatshrink tube 6 cm
Variant B
4x Adjustable link + quicklock washer
Plastic frame:
1. Aileron servo horn
2. Aileron horns
3. Elevator horn
4. Rudder horn
5. Motor mount
6. Landing gear part
7. Stabs pushrod guides
8. Aileron connection
You Will Also Need:
* CA medium+thin, CA kicker
* Sharp hobby knife
* Screwdriver
80g
Variant B
Variant A
8 2
5
7
2
*Canopy
*Wing Strut
*Landing gear
* Acessory Pack
*Carbon reinforcements:
- 2x- o 0,8x330 ... Stabs pushrods
- 4x- 3x0,5x500 ... Wing spar
- 2x Carbon 1x60 ... Aileron pushrod o
- 2x Carbon 1x70 ... Aileron pushrod o
- 2x Carbon 3(4)x0,5x150 ... Landing gear
- Carbon 3x0,5x100 ... Elevator reinforcement
- 2x Carbon 3x0,5x110 ... Wing strut
- 2x Carbon o1x120 ... Aileron connection
- 2x Carbon 3x0,5x110 ... Fuselage reinforcement
- 2x Carbon 3x0,5x70 ... Fuselage reinforcement
4
3
1
6
6
4
3
* Ruler
* Thread
Variant A
Variant B
Variant B
7
2
1
5 8
2
