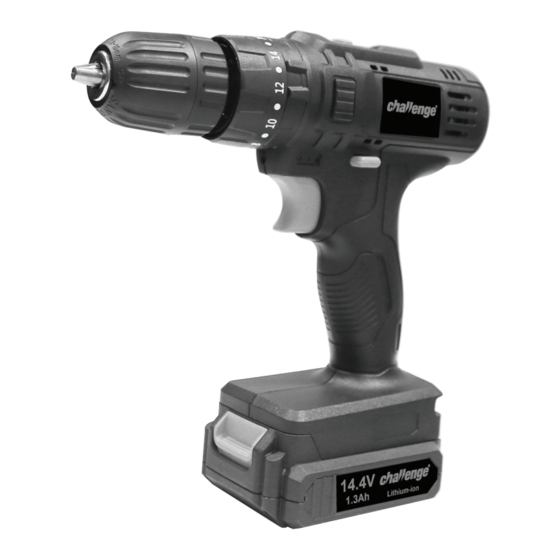

14.4v cordless drill/driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

CHALLENGE
14.4V Cordless Drill/Driver
Original Instruction Manual
Important
- Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from your drill,
ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0345 640 0800
After Sales Support
UK/Ireland 0345 640 0800
SS20CHAMD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS20CHAMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Challenge SS20CHAMD

Summary of Contents for Challenge SS20CHAMD

  • Page 1 CHALLENGE 14.4V Cordless Drill/Driver SS20CHAMD Original Instruction Manual After Sales Support UK/Ireland 0345 640 0800 Important - Please read these instructions fully before starting assembly These instructions contain important information that will help you get the best from your drill, ensuring it remains safe to operate.

  • Page 2: Table Of Contents

    Contents Safety Information.....................3 In The Box........................8 Accessories.......................8 Operating Instructions....................9 Trouble Shooting......................12 Maintenance......................13 Technical Data......................13 Environmental Protection..................14 Guarantee........................15 Customer Helpline 0345 640 0800...

  • Page 3: Safety Information

    Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembling and operating the power tool. To reduce the risk of injury, Please read the instruction manual Warning Wear ear protection Wear eye protection...
  • Page 4 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 5 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
  • Page 6 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
  • Page 7 Safety Information Important - Please read these instructions fully before starting assembly Safety Warnings for battery pack p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly.

  • Page 8: In The Box

    In The Box Parts FORWARD/REVERSE BUTTON CHUCK SOFT GRIP TORQUE SETTING RING BATTERY PACK RELEASE BUTTON TWO SPEED BUTTON BATTERY PACK SIGHT LIGHT DOUBLE END SCREWDRIVER BIT HOLDER ON/OFF SWITCH Accessories DOUBLE END SCREWDRIVER BIT (SL5.5+PH2) CHARGER Customer Helpline0345 640 0800...

  • Page 9: Operating Instructions

    Operating Instructions NOTE: Before using the tool, read the instruction book carefully. Intended Use This tool is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. 1. CHARGING PROCEDURE A) BEFORE OPERATING, CHARGING THE BATTERY NOTE: a) Do not use any charger other than that specifically provided for use with the equipment.
  • Page 10 Operating Instructions 2. INSTALLING AND REMOVING THE BATTERY PACK (SEE FIG B) a) TO REMOVE THE BATTERY PACK Press the Battery Pack Release Button (8) firmly first and then slide the Battery Pack out from your tool. b) TO INSTALL THE BATTERY PACK Slide the fully charged Battery Pack onto the tool with sufficient force until it clicks into position.
  • Page 11 Operating Instructions 7. CHUCK ADJUSTMENT (SEE FIG. D) To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction. Ensure the drill bit is in the centre of the chuck jaws.

  • Page 12: Trouble Shooting

    Operating Instructions 10. OVERLOAD PROTECTION When overloaded, the motor comes to a stop. Relieve the load on the tool immediately and release the on/off switch. Restart the tool as normal. 11. TEMPERATURE DEPENDENT OVERLOAD PROTECTION When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature is too hot, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

  • Page 13: Maintenance

    Maintenance Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place.

  • Page 14: Environmental Protection

    Technical Data Vibration Information Vibration total values (triax vector sum) determined according to EN 62841 Vibration emission value a = 6.125m/s² h, D Drilling into metal Uncertainty K = 1.5m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

  • Page 15: Guarantee

    Guarantee This product is selected for DOMESTIC USE ONLY and not for business use. This product is guaranteed against manufacturing defects for a period of 24 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorized modifications or alterations, or has been the subject of commercial use.
