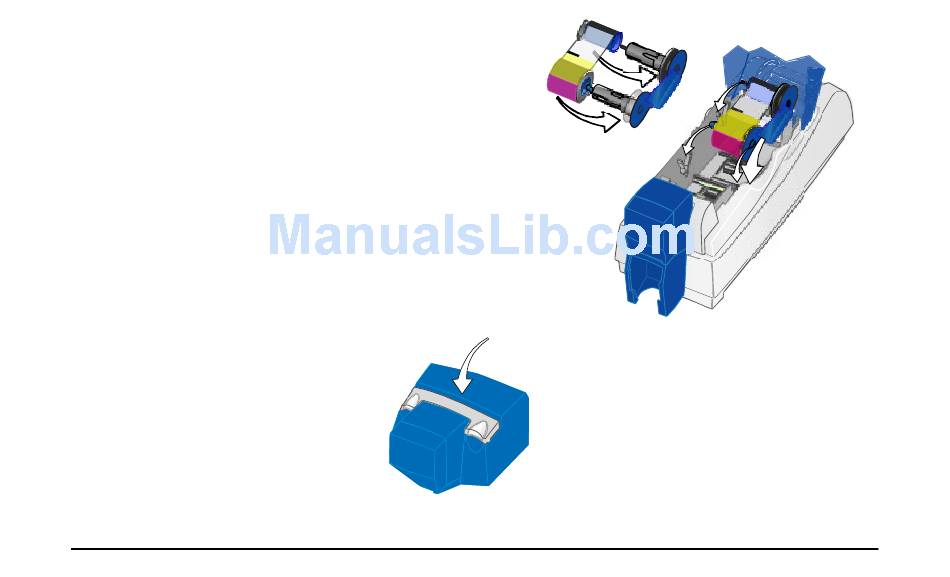

5 Load the new roll of print ribbon on the cartridge.
— Put the full spool of ribbon on the supply spindle of the
ribbon cartridge. Push until the spool clicks onto the
spindle.
— Put the empty take-up spool on the spindle with the
solid black gear. Push until the spool clicks onto the
spindle.
6 Replace the loaded ribbon cartridge in the printer.
— Make sure both spindles rest in the black supports on
the left side of the printer.
— Make sure the ribbon cartridge handle rests in the
supports on the right side of the printer.
— Make sure to install the full, new spool toward the input
hopper of the printer.
7 Close the printer cover. Press down firmly to latch it.
Page 8
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the SP55 Plus and is the answer not in the manual?
Questions and answers
I replaced the ribbon correctly, but when I attempt to print a card, it prints a portion of the top of the front of the card. The printer serial number is: H102552 Firmware version: 33.36
The issue may be caused by the print ribbon spools not being pushed completely onto the cartridge spindles. Push each print ribbon spool onto its spindle until it clicks into place. If the issue continues, contact your service provider.
