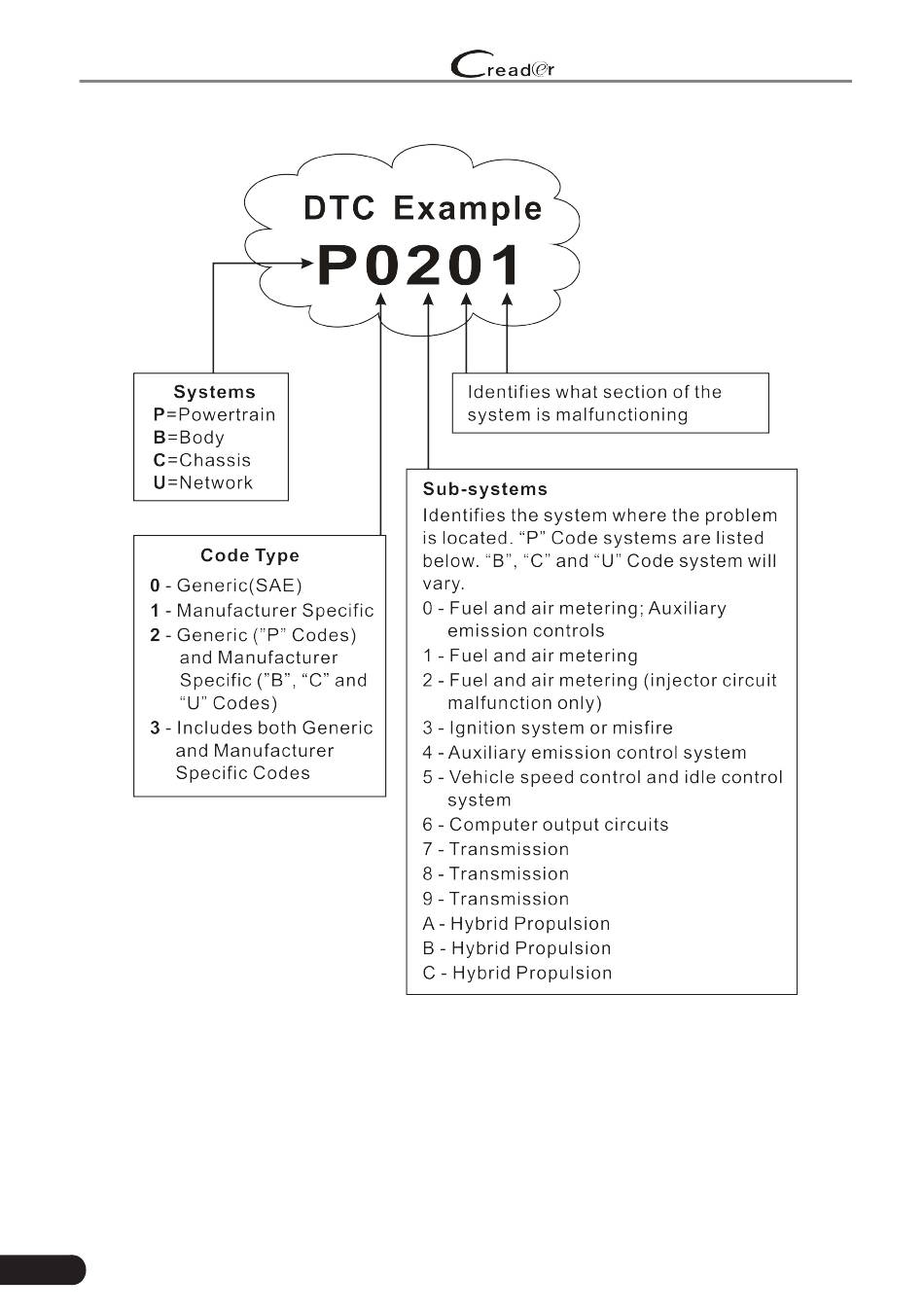

P0201 - Injector circuit malfunction, Cylinder 1

2.4 Location of the Data Link Connector (DLC)

The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-
pin connector where diagnostic code readers interface with the vehicle's on-
board computer. The DLC is usually located 12 inches from the center of the
instrument panel (dash), under or around the driver's side for most vehicles. If
