PINE
Monoblock Bathroom Sink Faucet
with Conventional Pop-up Drain
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended tools
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
1

INSTALL FAUCET

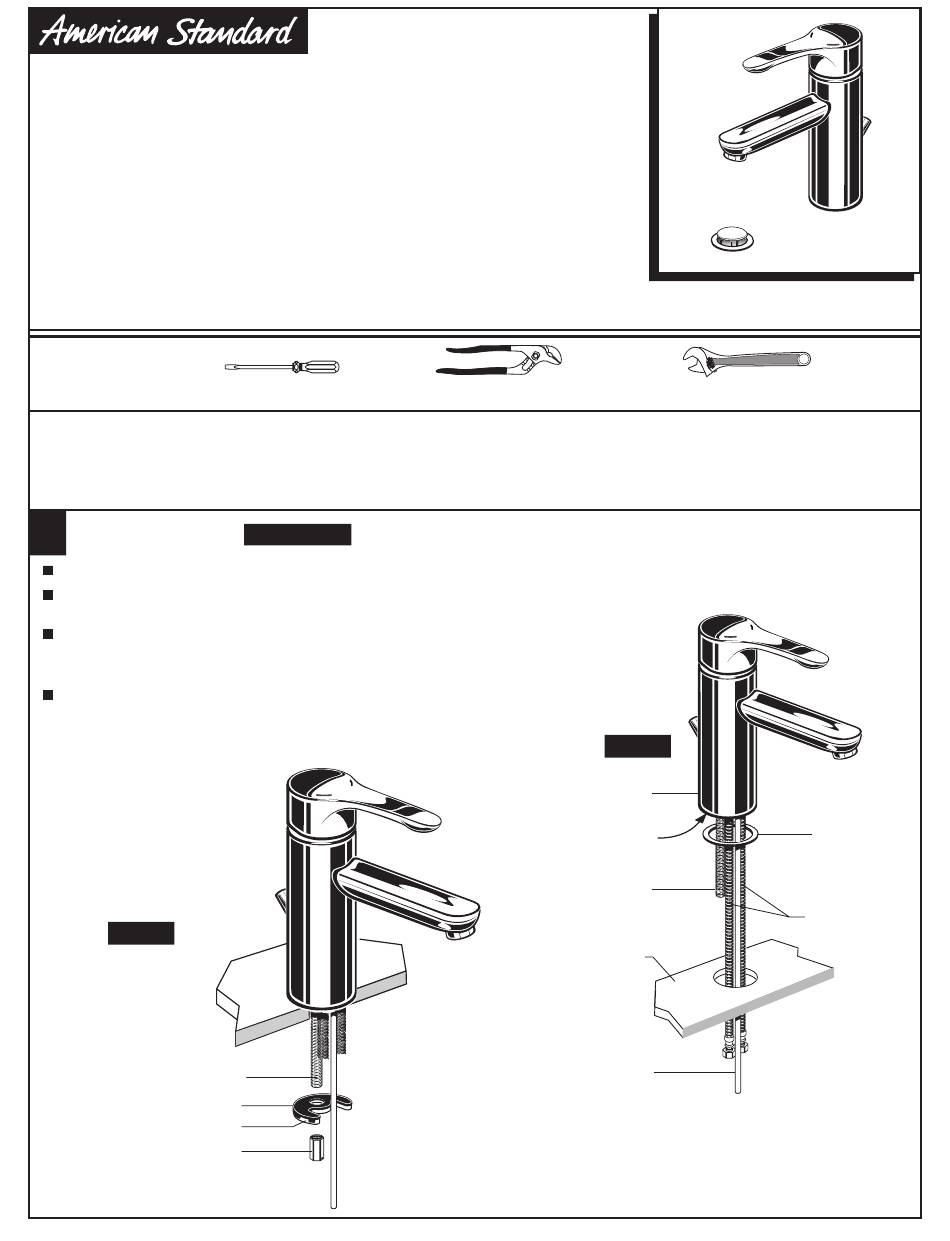

Seat SEAL (1) into under side of FAUCET BASE (2). Fig. A.
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and LIFT ROD (8)
through the mounting hole of lavatory or mounting surface. Fig. A.
From below, push GASKET (7) with RETAINING WASHER (5) onto
MOUNTING STUD (4). Install MOUNTING NUT (6)
onto MOUNTING STUD (4). Fig. B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Fig. B.
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
4
7
5
6
Installation
Instructions
2011.101
Channel Locks
Fig. A.
GROOVE
(FAUCET
BASE)
MOUNTING SURFACE
Certified to comply with ANSI A112.18.1
M965246 REV. 1.6
Adjustable Wrench
2
1
4
3
8
