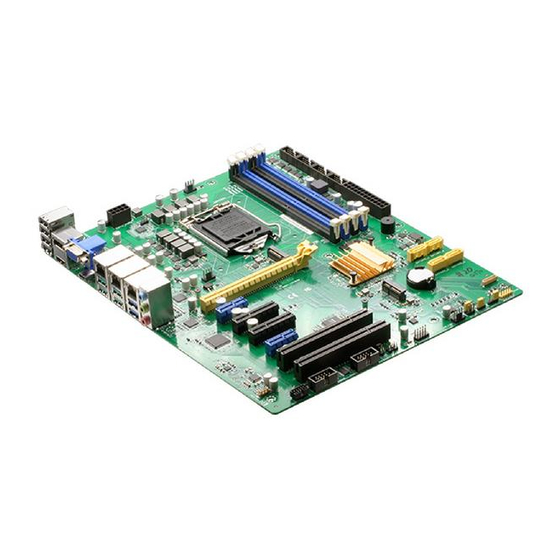

Aaeon ATX-Q370A Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ATX-Q370A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATX-Q370A and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon ATX-Q370A

Summary of Contents for Aaeon ATX-Q370A

  • Page 1 ATX-Q370A...
  • Page 2 E15810 First Edition August 2019 Copyright Notice This document is copyrighted, 2019. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Package contents................. 1-1 Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 Contents 3.3.7 AMT Configuration ............3-14 3.3.8 PCH-FW Configuration ..........3-14 3.3.9 Power Management ............3-14 3.3.10 Digital IO Port Configuration ......... 3-15 Chipset menu ................3-16 3.4.1 System Agent (SA) Configuration ......... 3-16 3.4.2 PCH-IO Configuration ........... 3-16 Security menu ................3-17 3.5.1 Administrator Password ..........3-17 3.5.2 User Password ..............

  • Page 5: Chapter 1 Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA Cable 1 x I/O Shield 1 x Support DVD 1 x COM port cable If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    Board size 9.6” x 9.6” (244mm x 244mm) Gross weight 1.76 lb (0.8 Kg) Operating 32~140°F (0~60°C) temperature Storage temperature -40°F ~185°F (-40°C ~85°C) Operating humidity 0%~90% relative humidity, non-condensing Power compliance Certificate CE/FCC (continued on the next page) ATX-Q370A...
  • Page 7 DISPLAY Chipset Intel Graphics Media Accelerator ® DisplayPort Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio HDMI Up to 4096 x 2160 @ 30 Hz Up to 1920 x 1200 @60Hz (via IT6516B) Storage 4 x SATA III (6.0Gb/s) ports support RAID 0/1/5/10 1 x M.2 2280 M-key (PCIe x 4/SATA3)
  • Page 8 ATX-Q370A...

  • Page 9: Chapter 2 Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

  • Page 10: Motherboard Layout

    LGA1151 Place this side LAN1_USB31_12 towards the rear of the chassis LAN2_USB31_34 CHA_FAN1 Intel PHY I219LM USB30_67 AUDIO1 2280 PCIEX16_1 BUZZER1 Intel I211AT ATX-Q370A PCIEX1_1 128Mb Intel ® BIOS Q370 Super SPI_1 PCIEX4_1 SATA6G_1 SATA6G_2 PCIEX4_2 SATA6G_3 SATA6G_4 PCIEX1_2 1083...
  • Page 11 Connectors/Jumpers/Slots Page CPU and chassis fan connectors (4-pin CPU_FAN1, 4-pin CHA_FAN1~2) 2-19 ATX power connectors (24-pin EATX_PWR1, 8-pin EATX_PWR2) 2-18 Intel LGA1151 CPU socket ® M.2 M-Key / E-Key slots 2-23 DDR4 DIMM slots 2-10 Serial port connectors (10-1 pin COM1~6) 2-22 BIOS programmable connector (8-pin SPI_1) 2-18 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4) 2-21 AT/ATX mode jumper (3-pin ATX_AT) 2-13 10. System panel connector (10-1 pin F_PANEL) 2-20 11. Chassis intrusion connector (4-1 pin CHASSIS) 2-14 12. Clear RTC RAM (CLRTC1) 2-12 2-15 13. Intel ® ME Jumper (3-pin DIS_ME) 14. USB 2.0 connectors (10-1 pin USB1112) 2-21 15. COM1 RS422/RS485 terminator (2-pin J1~4) 2-13 16.

  • Page 12: Screw Size

    Screw size 2.3.1 Component side REV. LTR DATE UPDA FIRST RELEASE ATX-Q370A MB COMPONENT SIDE 237.53 243.84 240.28 235.98 228.07 232.96 223.39 218.97 211.06 208.89 210.95 200.15 199.24 189.59 189.48 182.50 179.94 173.61 164.08 147.07 137.29 129.29 126.81 116.35 111.27 77.22...

  • Page 13: Solder Side

    2.3.2 Solder side 243.84 237.49 237.49 195.23 165.10 165.10 164.31 151.99 144.81 126.81 108.81 89.31 51.69 33.02 10.16 0.00 Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with a surface mount LGA1151 socket designed for the Intel Generation(Coffee Lake-S, Coffee Lake-S Refresh) Core™ i9/ i7/ i5/ ® i3, Pentium 14nm LGA 1151 socket Processor. ATX-Q370A ATX-Q370A CPU socket LGA1151 IMPORTANT: Unplug all power cables before installing the CPU. CAUTION! • Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. The manufacturer will shoulder the cost of repair only if the damage is shipment/transit-related. • Keep the cap after installing the motherboard. The manufacturer will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket.

  • Page 15: Installing The Cpu

    2.4.1 Installing the CPU CAUTION! Ensure that you install the correct CPU designed for LGA 1151 only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1151 socket. Chapter 2: Motherboard information...

  • Page 16: Cpu Heatsink And Fan Assembly Installation

    2.4.2 CPU heatsink and fan assembly installation CAUTION! Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary. To install the CPU heatsink and fan assembly ATX-Q370A...
  • Page 17 To uninstall the CPU heatsink and fan assembly Chapter 2: Motherboard information...

  • Page 18: System Memory

    System memory This motherboard comes with four Double Data Rate 4 (DDR4) Dual Inline Memory Module (DIMM) sockets. A DDR4 module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot. According to Intel CPU spec, DIMM voltage below 1.2 V is recommended to protect the ® CPU. ATX-Q370A ATX-Q370A 288-pin DDR4 DIMM sockets 2.5.1 Installing a DIMM ATX-Q370A 2-10...
  • Page 19 To remove a DIMM Chapter 2: Motherboard information 2-11...

  • Page 20: Jumpers

    Clear RTC RAM (CLRTC1) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. ATX-Q370A CLRTC1 Normal Clear RTC (Default) ATX-Q370A Clear RTC RAM To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTE: If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS,...
  • Page 21 COM1 RS422/RS485 terminator (2-pin J1~4) J1~4 ATX-Q370A RS232 RS485/RS422 with terminator (Default) ATX-Q370A COM1 RS422/RS485 Terminator (J1/J2/J3/J4) AT/ATX Mode selection (2-pin ATX_AT) ATX-Q370A ATX_AT ATX mode AT mode (Default) ATX-Q370A H/W AT/ATX mode selection Pins 1-2 (Default) ATX mode AT mode Chapter 2: Motherboard information 2-13...
  • Page 22 This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event. By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature. CHASSIS ATX-Q370A ATX-Q370A Chassis intrusion connector COM1 Ring/+5V/+12V selector (6-pin COM1_V1) COM1_V1 ATX-Q370A +12V Ring (Default) ATX-Q370A COM1 Ring/+5V/+12V Selection Setting Pins...
  • Page 23 Intel ME Jumper (3-pin DIS_ME) ® This jumper allows you to force the Intel Management Engine (ME) to boot ® from recovery mode when ME becomes corrupted. DIS_ME Enabled ME flash security(Default) ATX-Q370A Enabled ME flash security Disabled ME flash security ATX-Q370A Intel ME flash security selection ® Chapter 2: Motherboard information 2-15...

  • Page 24: Connectors

    BLINKING Data activity GREEN 1 Gbps connection LAN port Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources. Line Out port (lime). This port connects to a headphone or a speaker. Microphone port (pink). This port connects to a microphone. ATX-Q370A 2-16...
  • Page 25 USB 3.1 Gen 1 ports (Blue, Type-A). These 9-pin Universal Serial Bus (USB) ports connect to USB 3.1 Gen 1/2.0 devices. NOTES: • We strongly recommend that you connect USB 3.1 Gen 1 devices to USB 3.1 Gen 1 ports for a faster and better performance from your USB 3.1 Gen 1 devices. • Due to the design of the Intel 300 series chipset, all USB devices ® connected to the USB 2.0 and USB 3.1 Gen 1 ports are controlled by the xHCI controller. Some legacy USB devices must update their firmware for better compatibility. USB 3.1 Gen 2 ports (Blue, Type-A). These 9-pin Universal Serial Bus (USB) ports connect to USB 3.1 Gen 2 devices. NOTES: • We strongly recommend that you connect USB 3.1 Gen 2 devices to USB 3.1 Gen 2 ports for a faster and better performance from your USB 3.1 Gen 2 devices. • Due to the design of the Intel 300 series chipset, all USB devices ® connected to the USB 2.0 and USB 3.1 Gen 2 ports are controlled by the xHCI controller. Some legacy USB devices must update their firmware for better compatibility.

  • Page 26: Internal Connectors

    Power OK -5 Volts +5 Volts PIN 1 ATX-Q370A +5 Volts PSON# +3 Volts -12 Volts +3 Volts +3 Volts PIN 1 ATX-Q370A ATX power connectors IMPORTANT: • For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 330W. • We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate. BIOS programmable connector (8-pin SPI_1) Use this connector to flash the BIOS ROM.
  • Page 27 CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! Audio amplfier connector (4-pin AMP_CON1)  This connector is for an internal stereo amplifier speakers support (2W/4 via WtoB header). AMP_CON1 ATX-Q370A PIN 1 ATX-Q370A Audio Stereo Output with Amp connector Chapter 2: Motherboard information 2-19...
  • Page 28 System panel connector (10-1 pin F_PANEL) This connector supports several chassis-mounted functions. F_PANEL PWR LED PWR_BTN PIN 1 ATX-Q370A HDD_LED RESET ATX-Q370A Front panel connector • System power LED (2-pin PWR_LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and turns off when the system is in ACPI-S3/ S4/S5 mode by default. • Hard disk drive activity LED (2-pin HDD_LED) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD. • ATX power button/soft-off button (2-pin PWR_BTN) This 2-pin connector is for the system power button.
  • Page 29 ATA 6.0 Gb/s signal cables. SATA6G_1 SATA6G_2 ATX-Q370A SATA6G_3 SATA6G_4 ATX-Q370A Intel SATA 6 Gb/s connectors ® NOTE: When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.3 SATA Configuration for details. USB 2.0 connectors (10-1pin USB1112) These USB connectors comply with USB 2.0 specifications. ATX-Q370A USB1213 PIN 1 ATX-Q370A USB2.0 connectors Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard. Chapter 2: Motherboard information 2-21...
  • Page 30 PIN 1 COM4 COM2 COM1 PIN 1 PIN 1 PIN 1 COM5 PIN 1 COM6 ATX-Q370A PIN 1 ATX-Q370A Serial port (COM) connectors NOTE: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.6 SIO Configuration for details. Signal Signal DCD# (422TXD-/485DATA-) RXD (422TXD+/485DATA+) TXD (422RXD+) DTR# (422RXD-)
  • Page 31 M2_TYPE_M1 2280 M2_TYPE_E1 ATX-Q370A 2230 ATX-Q370A M.2(M-key)s NOTES: • The M.2 module is purchased separately. • The M.2 E-key slot supports type 2230 WI-FI devices and Intel CNVi ® WLAN module. • The M.2 M-key slot supports PCIe3.0 x4 and SATA mode design and type 2280 storage devices. 10. Digital I/O connector (10-pin DIO1) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. DIO1 ATX-Q370A PIN 1 ATX-Q370A Digitial I/O connector Chapter 2: Motherboard information 2-23...

  • Page 32: Chapter 3 Bios Setup

    Chapter 3 BIOS setup BIOS setup program Use the BIOS Setup program to configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 33: Bios Menu Screen

    The Main menu provides you an overview of the basic system information, and allows you to set the system date and time settings. 3.2.1 System Date [Day MM/DD/YYYY] Allows you to set the system date. 3.2.2 System Time [HH:MM:SS] Allows you to set the system time. ATX-Q370A...

  • Page 34: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. Case Open Warning [Disabled] Allows you to enable or disable the case open detecting function.

  • Page 35: Sata Configuration

    The BIOS automatically detects the presence of SATA devices. The Serial ATA Ports listed will display Empty if there are no Serial devices connected to the ports. SATA Controller(s) [Enabled] Configuration options: [Enabled] [Disabled]. The following items appear only when you set SATA Controller(s) to [Enabled]. ATX-Q370A...

  • Page 36: Usb Configuration

    SATA Mode Selection [AHCI] Allows you to set the SATA configuration. [AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.

  • Page 37: Hardware Monitor

    Selects fan stop duty mode. Configuration options: [Down to 0] [To Fan Out Stop Value] Fan Out Stop Value [100] The Fan Out value decreases to this value if the temperature reaches below the lowest temperature limit. Input value range: [0~255] ATX-Q370A...
  • Page 38 Fan Out Stop Time [60] Determines the amount of time it takes for the Fan Out value to fall from the stop value to zero. Input value range: [0~255] Critical Temperature [75] Determines the amount of time Fan Out takes to decrease its value by one step.
  • Page 39 Tolerance of Temperature [0] Input value range: [0~7] Fan Out Start-Up Value [127] Input value range: [0~255] Fan Stop Duty [To Fan Out Stop Value] Selects fan stop duty mode. Configuration options: [Down to 0] [To Fan Out Stop Value] ATX-Q370A...
  • Page 40 Fan Out Stop Value [100] The Fan Out value decreases to this value if the temperature reaches below the lowest temperature limit. Input value range: [0~255] Fan Out Stop Time [60] Determines the amount of time it takes for the Fan Out value to fall from the stop value to zero.
  • Page 41 The following items appear only when you set Fan Control Mode to [Thermal Cruise Mode]. Target Temperature [50] Input value range: [0~127] Tolerance of Temperature [0] Input value range: [0~7] Fan Out Start-Up Value [127] Input value range: [0~255] ATX-Q370A 3-10...
  • Page 42 Fan Stop Duty [Down to 0] Selects fan stop duty mode. Configuration options: [Down to 0] [To Fan Out Stop Value] Fan Out Stop Value [100] The Fan Out value decreases to this value if the temperature reaches below the lowest temperature limit. Input value range: [0~255] Fan Out Stop Time [60] Determines the amount of time it takes for the Fan Out value to fall from the stop value to zero.

  • Page 43: Sio Configuration

    [Use Automatic Settings] [IO=3F8h; IRQ=4;] [IO=3E8h; IRQ=7] Mode [RS232] Allows you to select the Serial Port mode. Configuration options: [RS232] [RS422] [RS485] [*Active*] Serial Port 2 Use this device [Enabled] Allows you to enable or disable this logical device. Configuration options: [Enabled] [Disabled] ATX-Q370A 3-12...
  • Page 44 Possible [Use Automatic Settings] This item appears only when you set Use this device to [Enabled] and allows you to select an optimal setting for Super I/O devices. Configuration options: [Use Automatic Settings] [IO=3E8h; IRQ=7] [IO=3F8h; IRQ=4;] Mode [RS232] Allows you to select the Serial Port mode. Configuration options: [RS232] [*Active*] Serial Port 3 Use this device [Enabled] Allows you to enable or disable this logical device.

  • Page 45: Amt Configuration

    Configuration options: [Disabled] [Enabled] 3.3.9 Power Management Power Mode [ATX Type] Shows the current power supply mode [ATX Type] or [AT Type] according to the position of ATX_AT jumper. The following items appear when the Power Mode is [ATX Type]. ATX-Q370A 3-14...

  • Page 46: Digital Io Port Configuration

    Restore AC Power Loss [Last State] [Last State] The system goes into either off or on state, whatever the system state was. [Always On] The system goes into on state after an AC power loss. [Always Off] The system goes into off state after an AC power loss. RI Wake Event [Disabled] Enable or disable system to wake up from RI#.

  • Page 47: Chipset Menu

    [Gen2] [Gen3] PCIEX4_1 Gen Speed [Auto] Configures the speed of PCI Express x4 slot. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] PCIEX4_2 Gen Speed [Auto] Configures the speed of PCI Express x4 slot. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] ATX-Q370A 3-16...

  • Page 48: Security Menu

    Security menu The Security menu items allow you to change the system security settings. 3.5.1 Administrator Password If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

  • Page 49: Boot Menu

    [UEFI CD/DVD] [UEFI USB CD/DVD] [UEFI USB Floppy][ USB Key] [Hard Disk] [USB Hard Disk] [Network] [USB Lan] [CD/DVD] [USB CD/DVD] [USB Floppy][ Disabled] 3.6.3 UEFI NETWORK Drive BBS Priorities This item specifies the boot device priority sequence from the available UEFI network drives. ATX-Q370A 3-18...

  • Page 50: Save & Exit Menu

    Save & Exit menu Save Changes and Reset Once you are finished making your selections, choose this option from the Save & Exit menu to ensure the values you selected are saved. When you select this option, a confirmation window appears. Select Yes to save changes and reset. Discard Changes and Exit This option allows you to exit the Setup program without saving your changes.
  • Page 51 ATX-Q370A 3-20...

  • Page 52: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. ATX-Q370A...
  • Page 53 印 刷 電 路 板 及 其 × ○ ○ ○ ○ ○ 電子組件 外 部 信 號 連 接 頭 × ○ ○ ○ ○ ○ 及線材 ○： 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363- 2006 標准規定的限量要求以下。 ×： 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標准規定的限量要求，然該部件仍符合歐盟指令 2002/95/ EC 的規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 ATX-Q370A...
