PEERLESS SR1M Installation And Assembly Manual

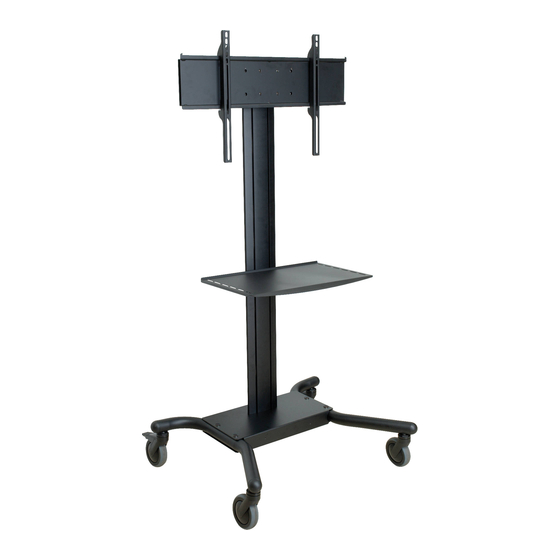

32" - 60" flat panel tv cart
Hide thumbs Also See for SR1M:

Advertisement

Quick Links

Download this manual

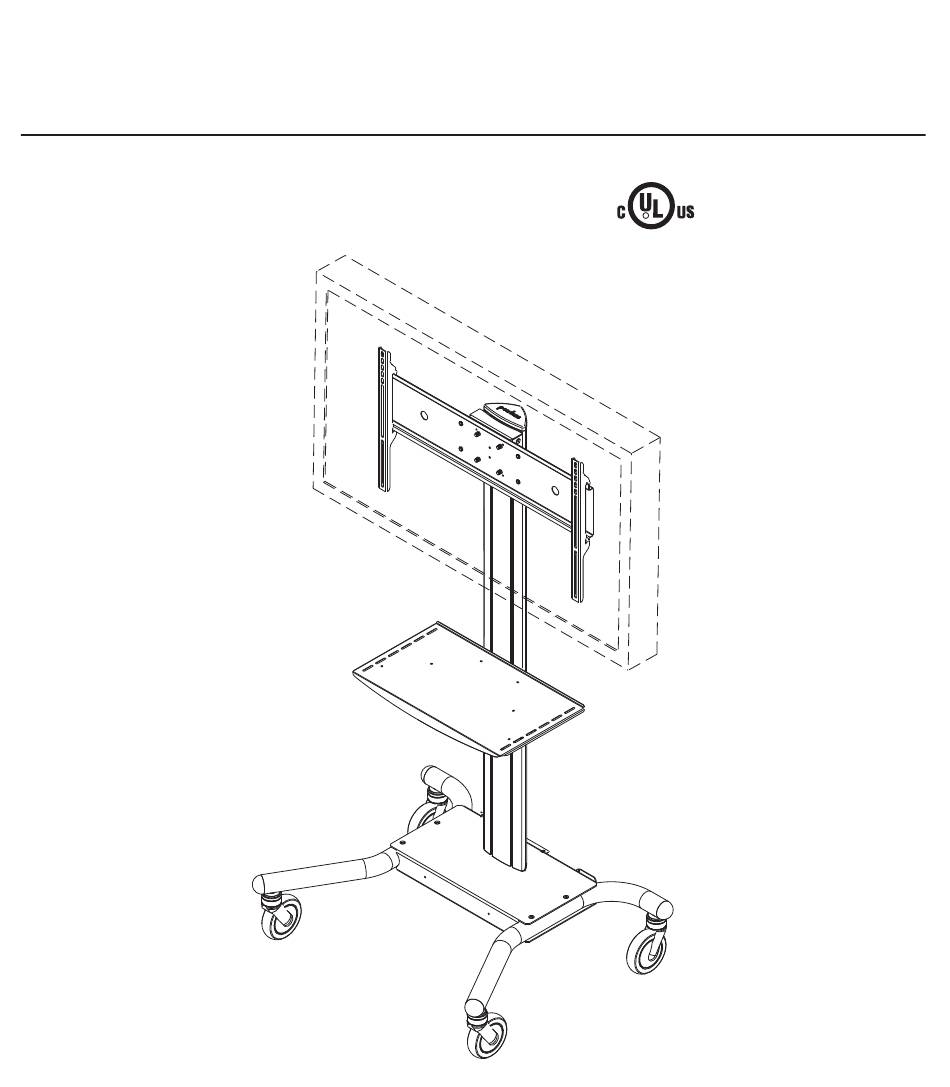

Installation and Assembly: 32" - 60" Flat Panel TV Cart
Models: SR1M, SR560M
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR1M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEERLESS SR1M

Summary of Contents for PEERLESS SR1M

  • Page 1 Installation and Assembly: 32" - 60" Flat Panel TV Cart Models: SR1M, SR560M This product is UL Listed. It must be installed by a qualified professional installer. Max UL Load Capacity: 150 lb (68 kg) screen 50 lb (22.7 kg) per shelf...

  • Page 2: Tools Needed For Assembly

    NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.

  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List SR1M SR560M Part Number Description Qty. Part Number 201-1156 screen mount bracket 201-1156 hook plate 201-1157 201-1157 shelf support...
  • Page 4 Parts List continued Universal Adapter Plate, Brackets and hardware included with model SR560M only Some parts may appear slightly different than illustrated.
  • Page 5 Insert four end caps (Y) into ends of left and right support legs (R & S) as shown. Guide right leg (S) towards base housing (D) as shown in fig.2.1. Then line up holes in base housing with holes in right leg.
  • Page 6 Insert and screw casters (U & T) into holes of support legs (R & S). Attach casters with brake (U) to the back of left and right support legs (R & S). Attach casters without brake (T) to front of support legs as shown. NOTE: Lock brakes on casters to avoid sudden movements during installation.
  • Page 7 Loosely attach four 1/4-20 x 12 mm screws (I), washers (K), and 1/4-20 nuts (J) to shelf support (C). Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in figure 6.1 and detail 1.
  • Page 8 Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to tighten six 8/32 nylock nuts (O).
  • Page 9 Loosely attach six 1/4-20 x 12 mm screws (I), Slide screen mount bracket (A) onto upright (G) so washers (K), and 1/4-20 nuts (J) to screen mount that 1/4-20 nuts (J) slide into slots of upright (G) as bracket (A). shown in figure 9.1 and detail 2.
  • Page 10 Note:Refer to instructions included with Dedicated Adapter Plate for assembly to screen. Once attached, proceed to step 12. Attach Universal Plate (E) or Dedicated Adapter Attach hook plate (B) to screen mount bracket (A). Plate to hook plate (B) using four M10 x 15 mm socket screws (OO).
  • Page 11 WARNING • Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. •...
  • Page 12 15.3 SCREEN MULTI-WASHER SCREW ADAPTER BRACKET (F) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2 15-4 for a full screen compatibility chart for this mount.

  • Page 13: Cord Management

    WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television. Hook adapter brackets (F) onto universal plate (E), then slowly swing screen in as shown. Turn screws of adapter plate (F) clockwise at least six times to prevent screen from being removed as shown in detail 4.

This manual is also suitable for:

Sr560m
