PEERLESS SR1M Installation And Assembly Manual

32" - 65" flat panel tv cart

Advertisement

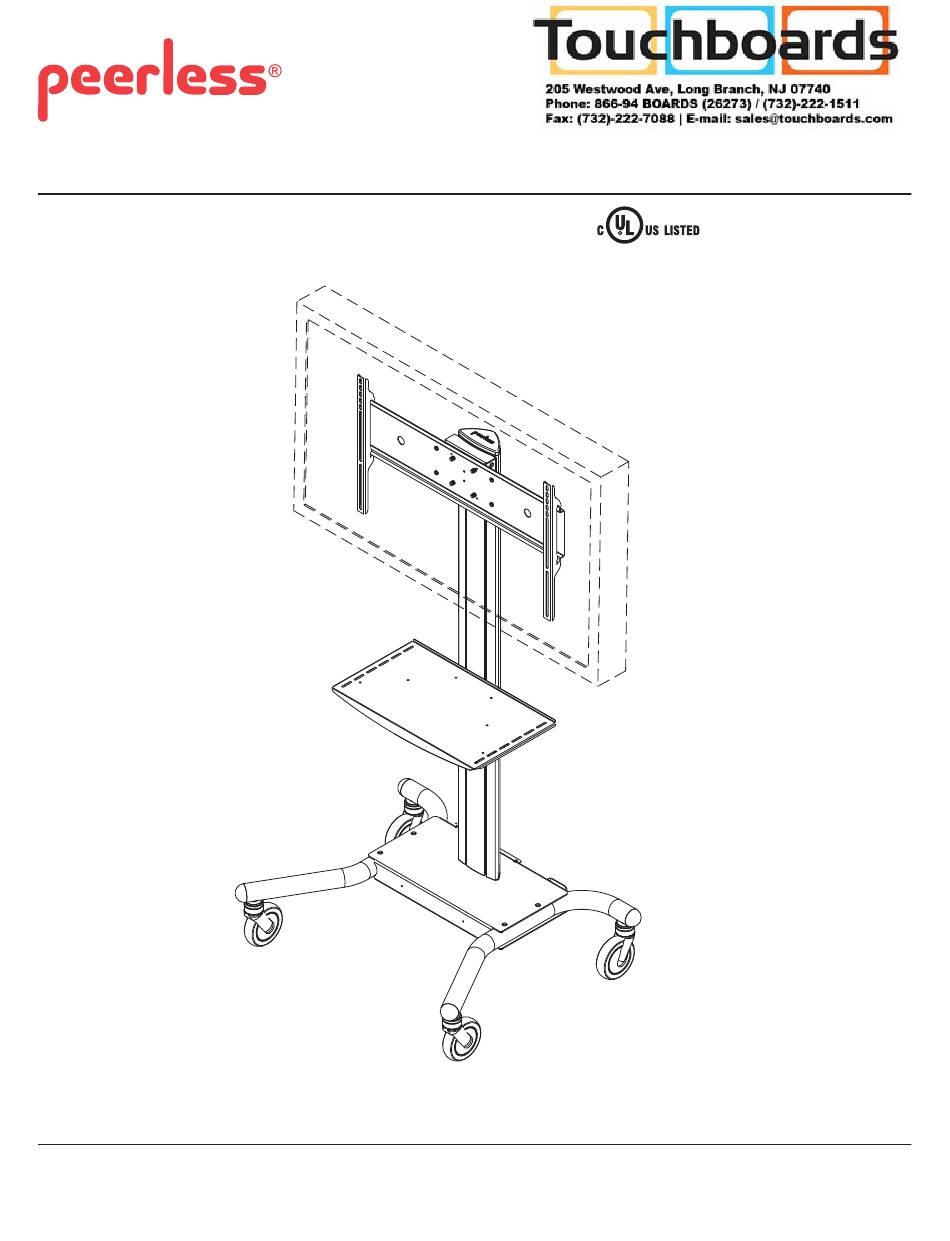

Installation and Assembly: 32" - 65" Flat Panel TV Cart
Models: SR1M, SR560M
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualifi ed professional
installer.
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf
ISSUED: 01-10-07 SHEET #: 009-9039-15 05-23-12

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR1M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PEERLESS SR1M

  • Page 1 Installation and Assembly: 32" - 65" Flat Panel TV Cart Models: SR1M, SR560M This product is UL Listed. It must be installed by a qualifi ed professional installer. Max UL Load Capacity: 150 lb (68 kg) screen 50 lb (22.7 kg) per shelf 2300 White Oak Circle •...
  • Page 2: Table Of Contents

    NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List SR560M SR1M Part Number Description Qty. Part Number screen mount bracket 201-1156 201-1156 201-1157 hook plate 201-1157 shelf support...
  • Page 4 Parts List continued Universal Adapter Plate, Brackets and Hardware included with model SR560M only Some parts may appear slightly different than illustrated. 4 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-15 05-23-12...
  • Page 5: Assembling Cart

    Insert right leg (S) into base housing (D) as shown in fi g. 1.1. Then align holes in right leg with holes in base housing (D). Fasten base housing to right leg using two 3/8-16 x 1.5" bolts (W) and two joint connectors (V). Tighten using 3/16"...
  • Page 6 Attach upright (G) to base (D), as shown in fi g 3.1 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID lock washers (X). Tighten screws using 7/32" allen wrench (M). NOTE: Be sure cord management holes are in the confi guration shown in fi g 3.2. fi...
  • Page 7 Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in fi gure 5.1 and detail 1. Slide shelf support to desired height, level, then tighten 1/4-20 x 12mm screws (I) using 4 mm allen wrench (N).
  • Page 8 Attaching Metal Shelf Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to tighten six 8/32 nylock nuts (O). WARNING • This shelf is intended for use with equipment weighing NO more than 50 lbs.
  • Page 9 Loosely attach six 1/4-20 x 12 mm screws (I) and Slide screen mount bracket (A) onto upright (G) so 1/4-20 nuts (J) to screen mount bracket (A). that 1/4-20 nuts (J) slide into slots of upright (G) as shown in fi gure 8.1 and detail 2. Slide screen mount bracket to desired position, level, then tighten 1/4-20 x 12 mm screws (I) using 4 mm allen wrench (N).
  • Page 10: Attaching Universal Adapter Plate Or Dedicated Adapter Plate

    Attaching Universal Adapter Plate or Dedicated Adapter Plate NOTE:Refer to instructions included with Dedicated Adapter Plate for assembly to screen. Once attached, proceed to step 11. Attach Universal Plate (E) or Dedicated Adapter Attach hook plate (B) to screen mount bracket (A). Plate to hook plate (B) using four M10 x 15 mm socket screws (II).
  • Page 11: Installing Adapter Brackets

    Installing Adapter Brackets to Universal Plate WARNING • Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
  • Page 12 SCREW ADAPTER BRACKET (F) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into 14-4 screen as shown below.
  • Page 13: Cord Management

    13 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-15 05-23-12 © 2012 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

Sr560m
