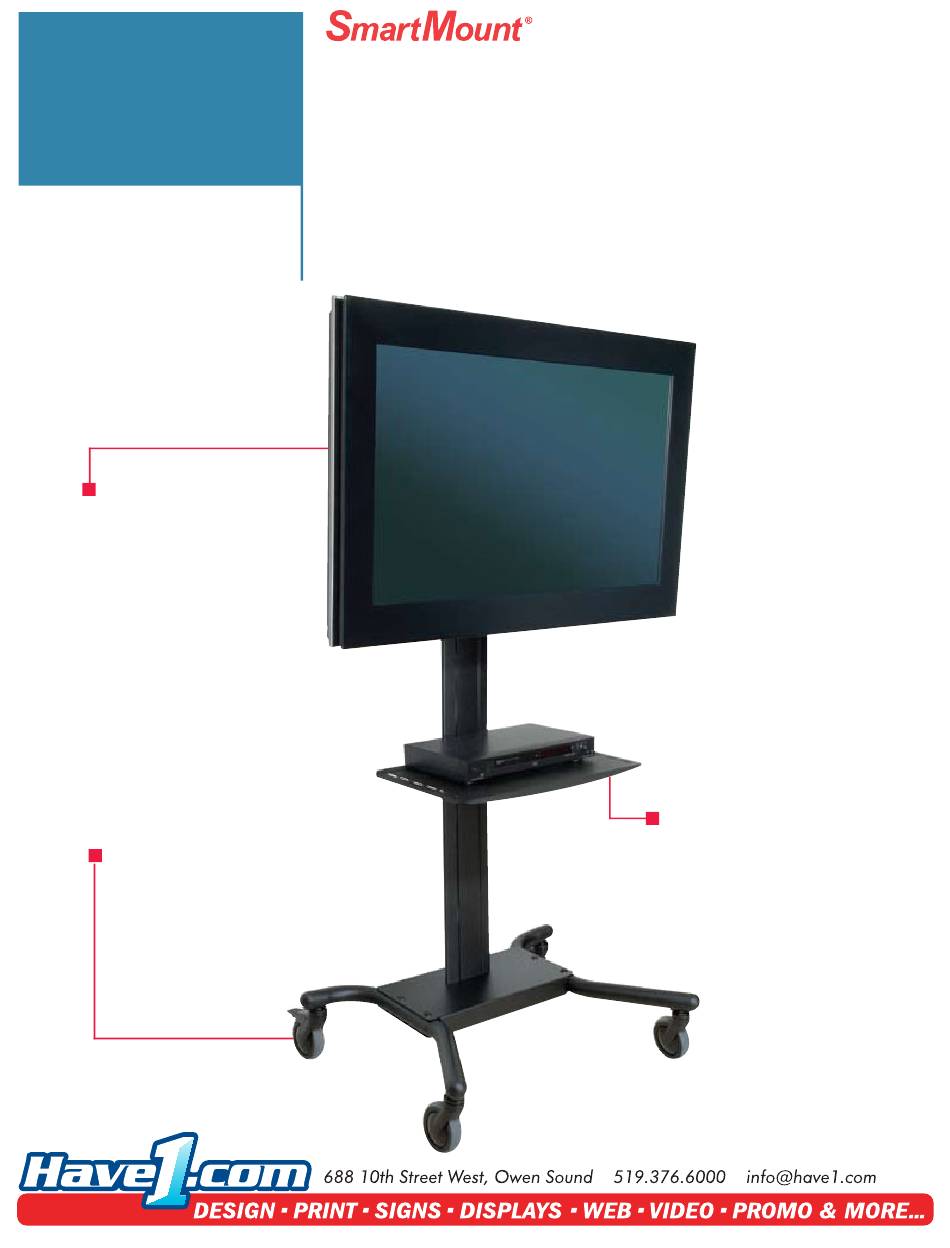

SR560G
with Glass Shelf
SR560M
with Metal Shelf
Incremental tilt of -2°, 0°
and +5° makes it simple
to set multiple angles for
preferred viewing and aids
in reducing screen glare
4" swivel casters enable safe
and easy maneuverability over
various flooring surfaces and
through doorways. Two locking
casters ensure complete stability
wherever the cart is placed.
Flat Panel TV Carts
For 32" to 65" LCD and Plasma Flat Panel Screens
Peerless' SmartMount
®
Flat Panel TV Carts offer the most complete mobile
solutions for any application. These versatile presentation carts allow you to
hold meetings with A/V support or simply to display information. Their full
line of accessories enable each cart to be fully tailored to meet your specific
requirements. Whether video conferencing from a boardroom or presenting on
a trade show floor, Peerless' Flat Panel TV Carts are the solutions you need.
Metal or tinted tempered glass
shelf provides storage space
for A/V components. These
shelves are designed to hold
up to 50 pounds each, ensuring
equipment and user safety.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PEERLESS SR560G
Summary of Contents for PEERLESS SR560G
- Page 1 Whether video conferencing from a boardroom or presenting on a trade show floor, Peerless’ Flat Panel TV Carts are the solutions you need. Incremental tilt of -2°, 0°...
- Page 2 Flat Panel TV Carts For 32" to 65" LCD and Plasma Flat Panel Screens Model Numbers SR560M: Universal cart with metal shelf SR560G: Universal cart with tinted glass shelf ....... Product Specifications • FEATURES Incremental tilt of -2°, 0° and +5° for desired viewing angle •...
- Page 3 Installation and Assembly: 32" - 65" Flat Panel TV Cart Models: SR1M, SR560M This product is UL Listed. It must be installed by a qualifi ed professional installer. © Max UL Load Capacity: 150 lb (68 kg) screen 50 lb (22.7 kg) per shelf 3215 W.
-
Page 4: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 5: Parts List
Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List SR560M SR1M Part Number Description Qty. Part Number screen mount bracket 201-1156 201-1156 201-1157 hook plate 201-1157 shelf support 201-1158 201-1158 base... - Page 6 Parts List continued Universal Adapter Plate, Brackets and Hardware included with model SR560M only Some parts may appear slightly different than illustrated. ISSUED: 01-10-07 SHEET #: 009-9039-14 01-11-11 4 of 13...
-
Page 7: Assembling Cart
Insert right leg (S) into base housing (D) as shown in g. 1.1. Then align holes in right leg with holes in base housing (D). Fasten base housing to right leg using two 3/8-16 x 1.5" bolts (W) and two joint connectors (V). Tighten using 3/16"... - Page 8 Attach upright (G) to base (D), as shown in g 3.1 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID lock washers (X). Tighten screws using 7/32" allen wrench (M). NOTE: Be sure cord management holes are in the con guration shown in g 3.2. fi...
- Page 9 Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in gure 5.1 and detail 1. Slide shelf support to desired height, level, then tighten 1/4-20 x 12mm screws (I) using 4 mm allen wrench (N).
- Page 10 Attaching Metal Shelf Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to tighten six 8/32 nylock nuts (O). WARNING • This shelf is intended for use with equipment weighing NO more than 50 lbs.
- Page 11 Loosely attach six 1/4-20 x 12 mm screws (I) and Slide screen mount bracket (A) onto upright (G) so 1/4-20 nuts (J) to screen mount bracket (A). that 1/4-20 nuts (J) slide into slots of upright (G) as shown in gure 8.1 and detail 2. Slide screen mount bracket to desired position, level, then tighten 1/4-20 x 12 mm screws (I) using 4 mm allen wrench (N).
-
Page 12: Attaching Universal Adapter Plate Or Dedicated Adapter Plate
Attaching Universal Adapter Plate or Dedicated Adapter Plate NOTE:Refer to instructions included with Dedicated Adapter Plate for assembly to screen. Once attached, proceed to step 11. Attach Universal Plate (E) or Dedicated Adapter Attach hook plate (B) to screen mount bracket (A). Plate to hook plate (B) using four M10 x 15 mm socket screws (OO). -
Page 13: Installing Adapter Brackets
Installing Adapter Brackets to Universal Plate WARNING • Tighten screws so adapter brackets are rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. - Page 14 SCREW ADAPTER BRACKET (F) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into 14-4 screen as shown below.
-
Page 15: Cord Management
13 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-14 01-11-11 © 2007 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
