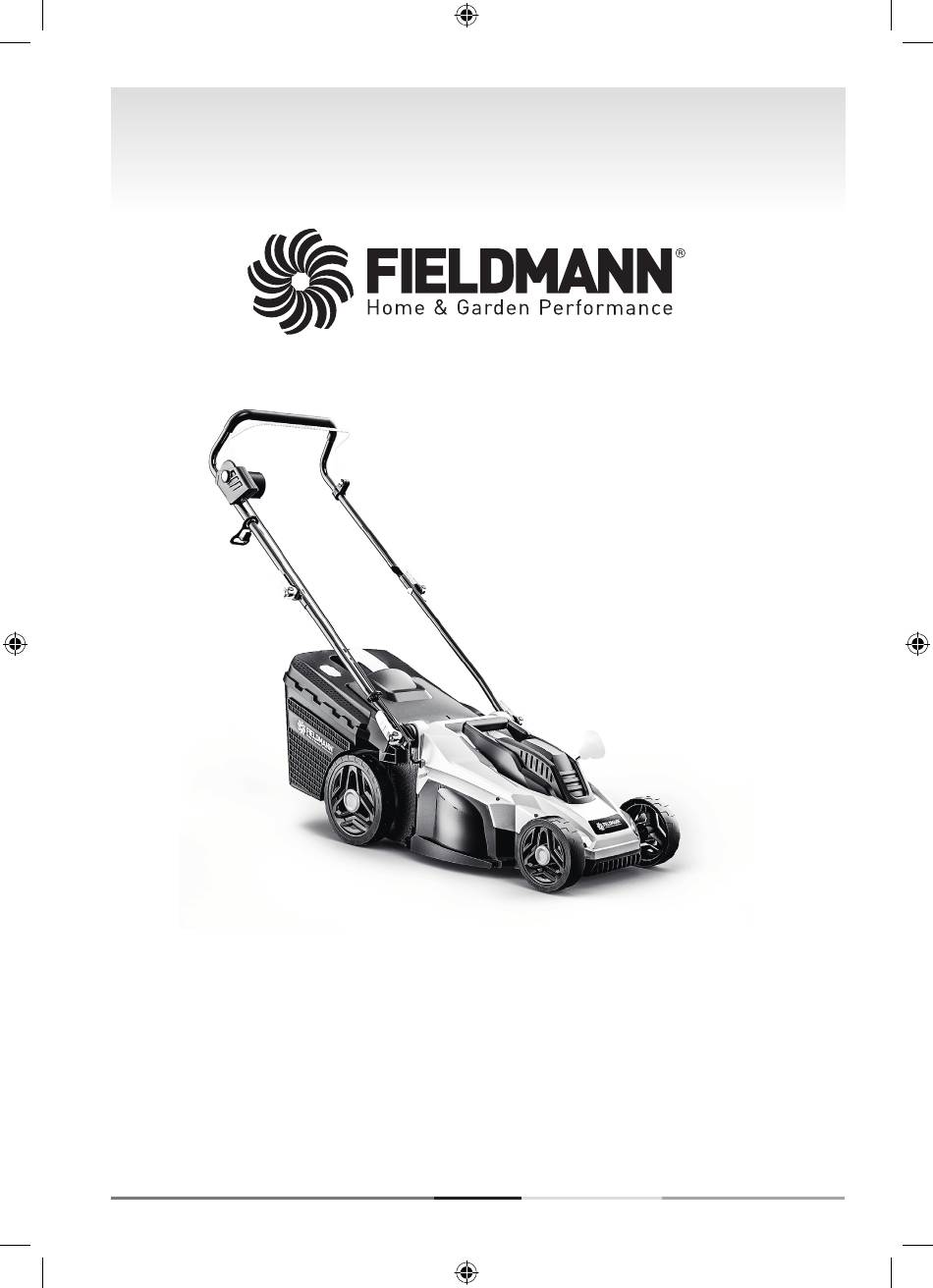

- Page 1 FZR 2033-E...
- Page 2 English ........................................3–17 Čeština........................................ 18–32 Slovenština ......................................33–47 Magyarul ......................................48–62 Polski ......................................... 63–77 FZR 2033-E...
-
Page 3: Table Of Contents
Table of Contents Electric Lawnmower USER’S MANUAL Thank you for purchasing this rotary electric lawnmower. Before you start using it, please, carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ..........................4 2. -
Page 4: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 2033-E... -
Page 5: Symbols
Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a sufficient distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cord is damaged, disconnect the power plug from the mains. -
Page 6: Description (Fig. 1)
2. Switch / brake lever 3. Safety button 4. Cable holder 5. Wing nut screw 6. Tray fill indicator 7. Grass catcher 8. Mowing height adjustment lever 9. Handle for transporting the lawnmower 10. Rear discharge cover 11. Power connection FZR 2033-E... -
Page 7: Fundamentals Of Work Safety
Fundamentals of work safety 4. FUNDAMENTALS OF WORK SAFETY Never use the machine if the power cord is damaged or visibly worn out. In the event that you connect the lawnmower using a damaged power cord to a power source and then touch the place that is uninsulated before the lawnmower is disconnected from the power source, you subject yourself to a risk of injury by electrical shock. -
Page 8: Before You Start Using The Lawnmower
OPERATION Only operate the machine during daylight hours or under sufficient artificial lighting. If possible, do not mow wet grass. Make sure that during work you always have firm support and a secure stance. FZR 2033-E... -
Page 9: Maintenance And Storage
Fundamentals of work safety Do not run when pushing the mower but rather walk at a normal pace. The following general rules apply for work with the lawnmower: When mowing vegetation on a slope, one does not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. -
Page 10: Assembly
II: Set correct height of cutting III: To start, press the switch button and then pull the switch lever towards you IV: You can start your work V: After end of your work storage your lawn mower in dry place FZR 2033-E... -
Page 11: Installing The Handle
Assembly 5.2 INSTALLING THE HANDLE 1) Assembling the mower according to the picture 2) Grass catcher assembly. Using the screw provided, attach the handle to the upper part of the grass catcher (point a), attach the upper part of the grass catcher to the lower part (point b), then attach the grass catcher to the lawnmower (point c) 3) After successful finish point 1 +2 you can start your working Note: the handle can be folded for storage purposes. -
Page 12: Operation
ATTENTION: Do not start the lawnmower when it is standing in a place with tall grass. Turning on: Please push safety start button and pull the handle towards you. Before it please insert the plug on the power cord into the power grid. FZR 2033-E... - Page 13 Operation Turning off: Release the handle. ATTENTION: The blade will rotate several seconds after the lawnmower is turned off. ATTENTION: Do not turn the lawnmower off and on in quick succession. 6.4 MOWING ATTENTION: Mow the lawn only when it is dry. Mowing wet grass causes undesirable clogging of the lawnmower and subsequent loss in power and reduced grass collection performance.
-
Page 14: Technical Specifications
33 cm Height of cut 25–70 mm, 5 Positions Collection bag capacity 30 l Type of protection (Protection against splashing water on all sides) IPx4 Protection class Weight lawn mower 10 kg Guaranteed sound power level LWA2) 96 dB(A) FZR 2033-E... -
Page 15: Maintenance
In the event that despite regular maintenance, the machine does not work, please contact our customer service, the potential repair should be carried out by our contractual partner in one of the specialised workshops of the Fieldmann brand. 8.1 BLADE REPLACEMENT For this task, we recommend that you contact an authorised service centre. -
Page 16: Disposal
This product meets all the basic requirements of EU directives related to it. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes. User s manual in the original language. FZR 2033-E... -
Page 17: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Product / brand: Electric Lawn Mower / FIELDMANN Type / model: FZR 2033-E as factory model EAL-21008-7 AC 230 V; 50Hz; 1400W; width 320 mm; Class II; IPX4 = 72 dB(A), L = 96 dB(A) Manufacturer: FAST ČR, a.s.
