Summary of Contents for Satel APS-724
- Page 1 APS-724 Power supply Firmware version 1.00 aps-724_en 10/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

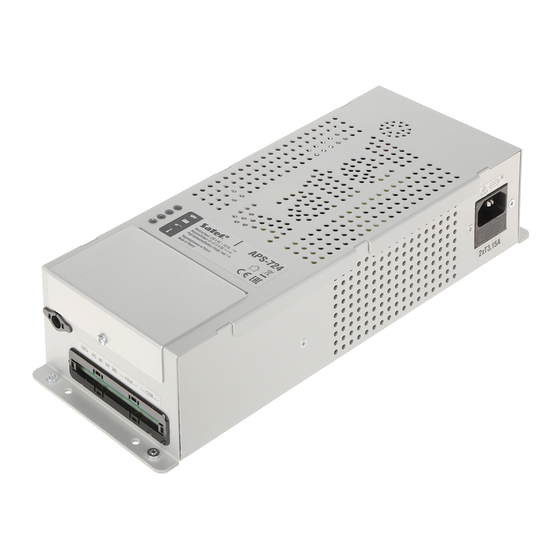

- Page 3 The APS-724 switch mode power supply is designed for devices requiring 24 VDC nominal voltage. 1. Features High efficiency. Nominal output voltage (according to IEC 38): 24 VDC. Output voltage stabilization. Battery status supervision and low battery disconnect system.
- Page 4 APS-724 SATEL 2. Power supply description terminals cover. LEDs indicating the power supply status: – red LED – power output status: OFF – normal operation, current consumption up to 6 A, flashing – overload, current consumption exceeds 6 A. – yellow LED – battery status if the mode of operation with battery is enabled: OFF –...
- Page 5 SATEL APS-724 2.1 Electronics board Fig. 3 shows the part of the power supply electronics board that is visible after removal of the cover (see Fig. 1). DIP-switches (see “Configuring the power supply”). MINI 7,5 A car fuse – battery charging circuit protection.
- Page 6 APS-724 SATEL 2.2 Configuring the power supply You can configure the power supply working parameters by using the DIP switches 1, 2, 4 and 5 (see Table 1). By factory default, all switches are set to OFF position. Switch number...
- Page 7 The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection. The sum of currents consumed by the devices to be supplied via the APS-724 power supply may not exceed: ...
- Page 8 APS-724 SATEL 5. To the trouble signaling outputs, you can, for example, connect LEDs, relays, or connect them to the inputs of control panel or other device which is to supervise the power supply operation. 6. Connect the battery to the - BAT + terminals.
