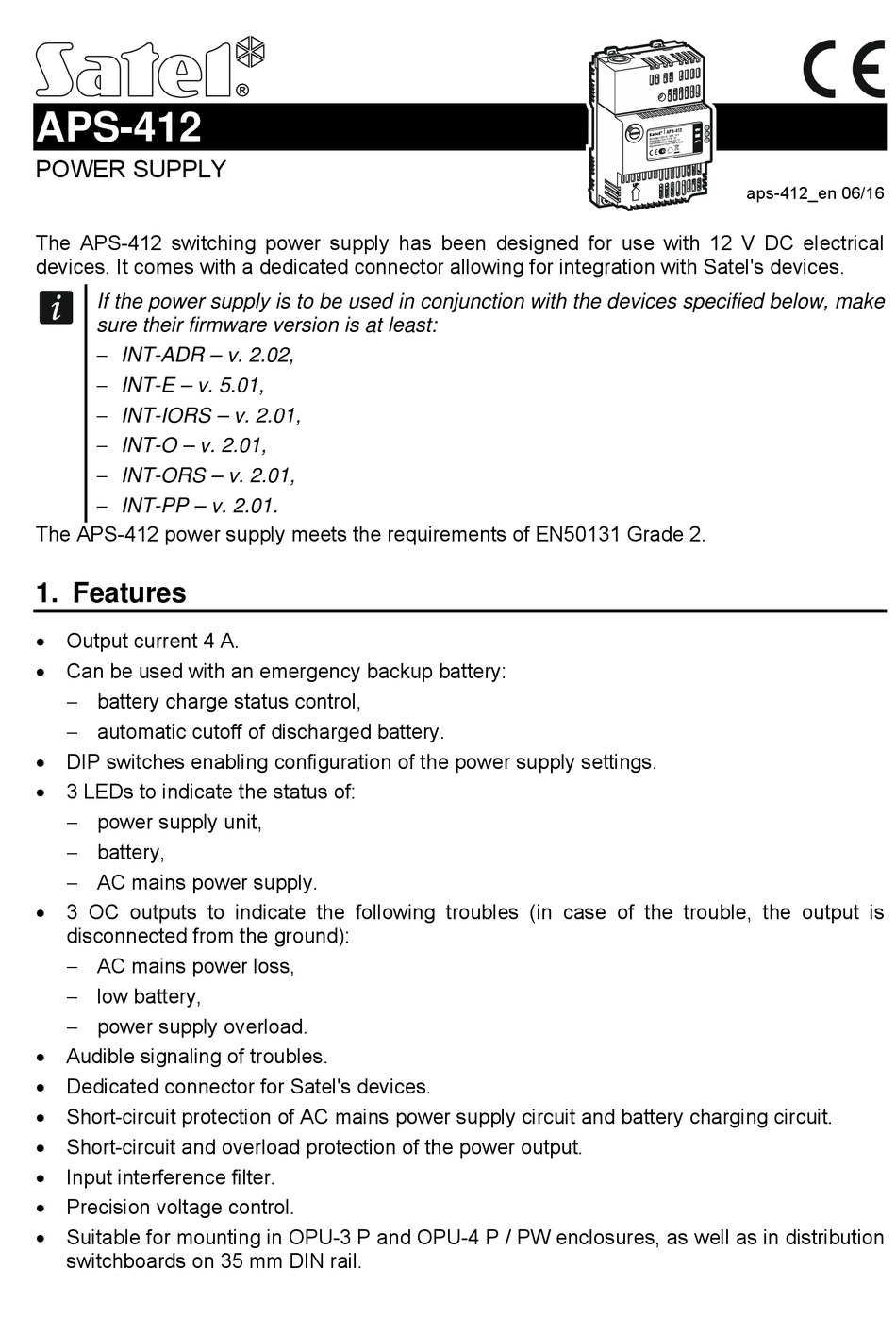

APS-412
POWER SUPPLY
The APS-412 switching power supply has been designed for use with 12 V DC electrical
devices. It comes with a dedicated connector allowing for integration with Satel's devices.
If the power supply is to be used in conjunction with the devices specified below, make
sure their firmware version is at least:
 INT-ADR – v. 2.02,
 INT-E – v. 5.01,
 INT-IORS – v. 2.01,
 INT-O – v. 2.01,
 INT-ORS – v. 2.01,
 INT-PP – v. 2.01.
The APS-412 power supply meets the requirements of EN50131 Grade 2.

1. Features

 Output current 4 A.
 Can be used with an emergency backup battery:
 battery charge status control,
 automatic cutoff of discharged battery.
 DIP switches enabling configuration of the power supply settings.
 3 LEDs to indicate the status of:
 power supply unit,
 battery,
 AC mains power supply.
 3 OC outputs to indicate the following troubles (in case of the trouble, the output is
disconnected from the ground):
 AC mains power loss,
 low battery,
 power supply overload.
 Audible signaling of troubles.
 Dedicated connector for Satel's devices.
 Short-circuit protection of AC mains power supply circuit and battery charging circuit.
 Short-circuit and overload protection of the power output.
 Input interference filter.
 Precision voltage control.
 Suitable for mounting in OPU-3 P and OPU-4 P / PW enclosures, as well as in distribution
switchboards on 35 mm DIN rail.
aps-412_en 06/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APS-412 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel APS-412

  • Page 1 POWER SUPPLY aps-412_en 06/16 The APS-412 switching power supply has been designed for use with 12 V DC electrical devices. It comes with a dedicated connector allowing for integration with Satel's devices. If the power supply is to be used in conjunction with the devices specified below, make sure their firmware version is at least: ...
  • Page 2 APS-412 SATEL 2. Description of the power supply Fig. 1. APS-412 power supply. Explanations for Fig. 1: F1 slow-blow fuse 3.15 A – AC circuit protection. LEDs indicating present status of the power supply: – red LED indicating current overload of the power supply: OFF –...
  • Page 3 SATEL APS-412 Fig. 2. Part of power supply PCB visible after removal of cover. Explanations for Fig. 2: socket for connecting cable to devices with dedicated connector. DIP-switches (see section "DIP switches"). battery connector. F3 slow-blow fuse 3.15 A – protection of battery charging circuit.
  • Page 4 Before proceeding to installation, estimate the current consumption by all devices which are to be supplied from the APS-412 power supply unit. The sum of currents consumed by these devices must not exceed: ...
  • Page 5 SATEL APS-412 2. Remove the cover of power supply terminals. 3. Configure the power supply using the DIP switches. 4. If the power supply is to be connected to a device provided with dedicated connector, connect the dedicated cable to the connector designated in Fig.
  • Page 6 APS-412 SATEL 11. Screw the wire fastening element. 12. Replace the cover of power supply terminals. 13. Replace the screw fastening the cover of power supply terminals. 14. Connect the battery to the dedicated leads (positive terminal to RED one, negative terminal to BLACK one).
  • Page 7 Enclosure dimensions..................77 x 122 x 59 mm Weight..........................306 g The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. + 48 58 320 94 00 www.satel.eu...
