APS-15
®
POWER SUPPLY
aps15_e 01/06
The ASP-15 power supply is designed for alarm, intercom or CCTV systems. The power
supply offered by our company has been designed and manufactured exactly for such
applications. Precision voltage regulation, microprocessor-based battery testing, and
automatic disconnection of the battery in case of overdischarge - all these features allow the
battery to be used for a longer period, without the risk of battery damaged. The power supply
has short-circuit and overload protection. It is provided with visual signaling of mains supply
and battery status. The detected troubles can be additionally indicated by audible signals.
Two additional OC type outputs make it possible to transfer information about failures to the
alarm system. A tamper contact on the electronics board allows for connection of the power
supply into the alarm system tamper circuit. Due to the use of the switching mode power
supply of high power efficiency, heat losses are minimized and reliability is enhanced. The
power supply should work with a 12V battery of 9Ah or 7Ah capacity.
This manual has been written for the device in 2.0 program version.

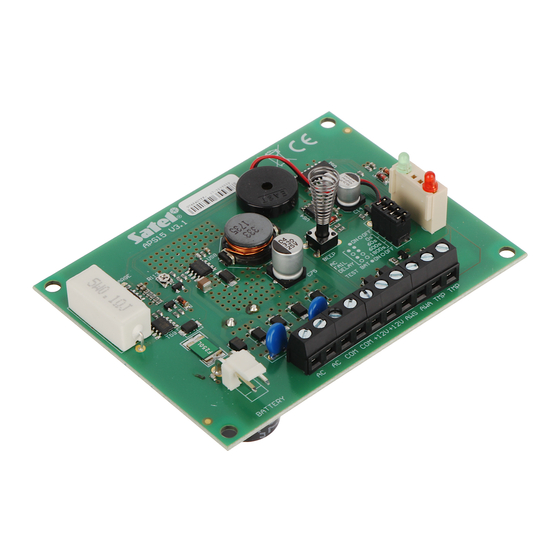

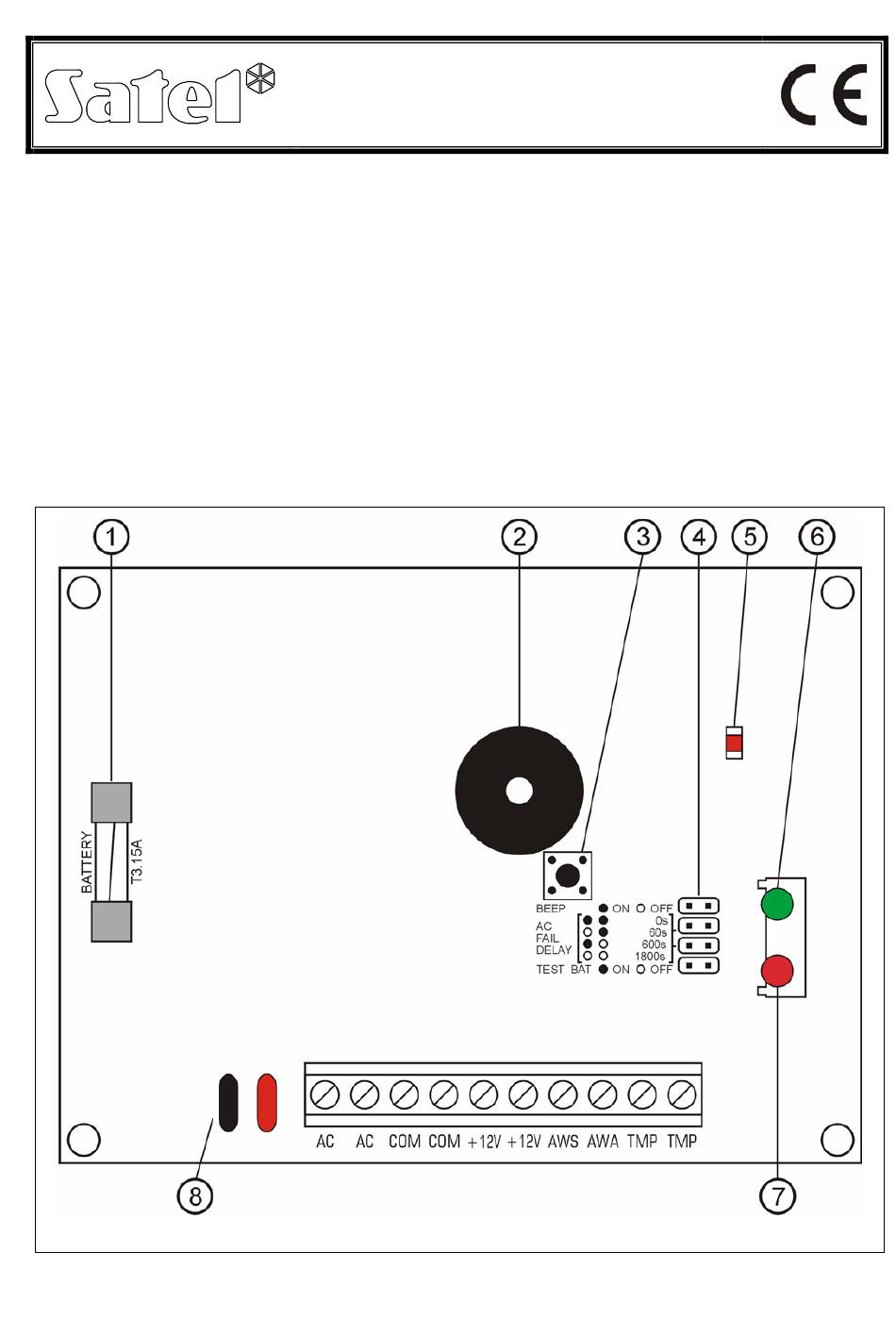

Fig. 1. View of the electronics board.
Advertisement
Table of Contents
Related Manuals for Satel APS-15
Summary of Contents for Satel APS-15
- Page 1 APS-15 ® POWER SUPPLY aps15_e 01/06 The ASP-15 power supply is designed for alarm, intercom or CCTV systems. The power supply offered by our company has been designed and manufactured exactly for such applications. Precision voltage regulation, microprocessor-based battery testing, and automatic disconnection of the battery in case of overdischarge - all these features allow the battery to be used for a longer period, without the risk of battery damaged.
- Page 2 SATEL APS-15 Legend to Fig. 1: 1 – fuse T3.15A. Protects the battery circuit. 1 – buzzer. Indicates troubles. 3 – tamper contact. 4 – pins for setting operating parameters of power supply unit. Symbol on the electronics board means that the jumper is on. Symbol means that the jumper is off.
- Page 3 APS-15 SATEL 4. Using the installed cables, connect the transformer output voltage (rated at 18V AC) to the AC terminals on the electronics board. 5. Connect the cables of receivers to the terminals +12V and COM of the terminal block on power supply board.
- Page 4 Operating temperature range (class I) ..............+5...+40°C Electronics board dimensions .................. 102x76mm Housing dimensions..................170x270x81mm Weight (without battery) ....................2,0kg The latest EC declaration of conformity and certificates are available for downloading on website www.satel.pl SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel.
