The APS-30 power supply is designed for alarm, intercom or CCTV systems. The power
supply proposed by our company has been designed and manufactured for such purposes.
Precision voltage regulation, microprocessor-based battery testing and automatic battery
disconnection in case of excessive discharging – all these features ensure that a battery can
be used for a longer period, without a risk of battery damage. Moreover the circuit of power
supply has a fuse of 3,15 A capacity. The power supply has short-circuit and overload
protection. It is provided with visual signaling of mains supply and battery conditions as well
as battery charging process. The detected failures can be additionally indicated by audible
signaling. Two additional OC outputs permit transferring information about failures to alarm
system. Due to the use of switching mode power supply of high power efficiency, heat power
losses are minimized, thus increasing reliability. The power supply should operate with
a 12 V battery of 17 Ah capacity.
5
®
POWER SUPPLY
AC
AC
COM COM COM

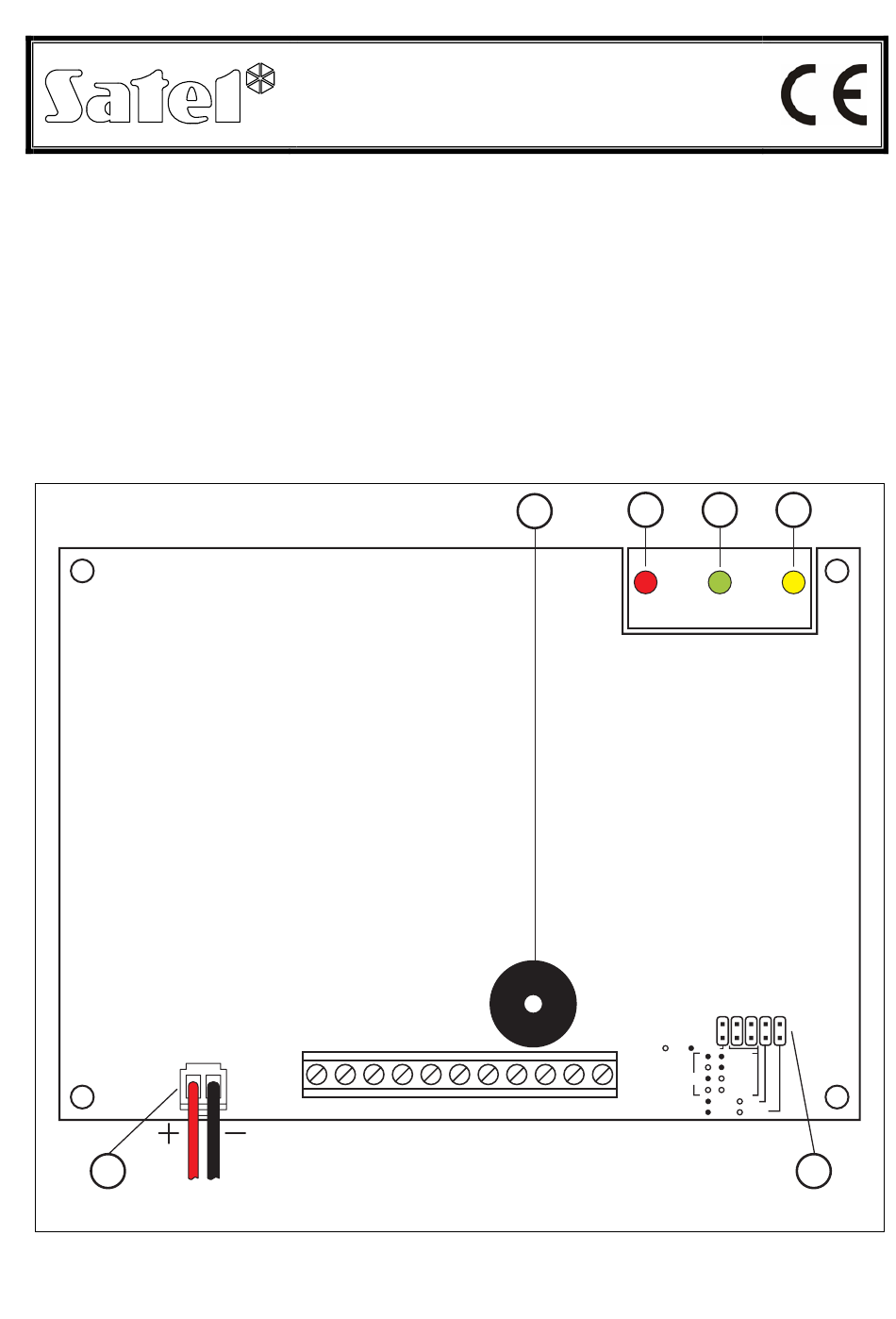

Fig. 1. View of electronics board.
