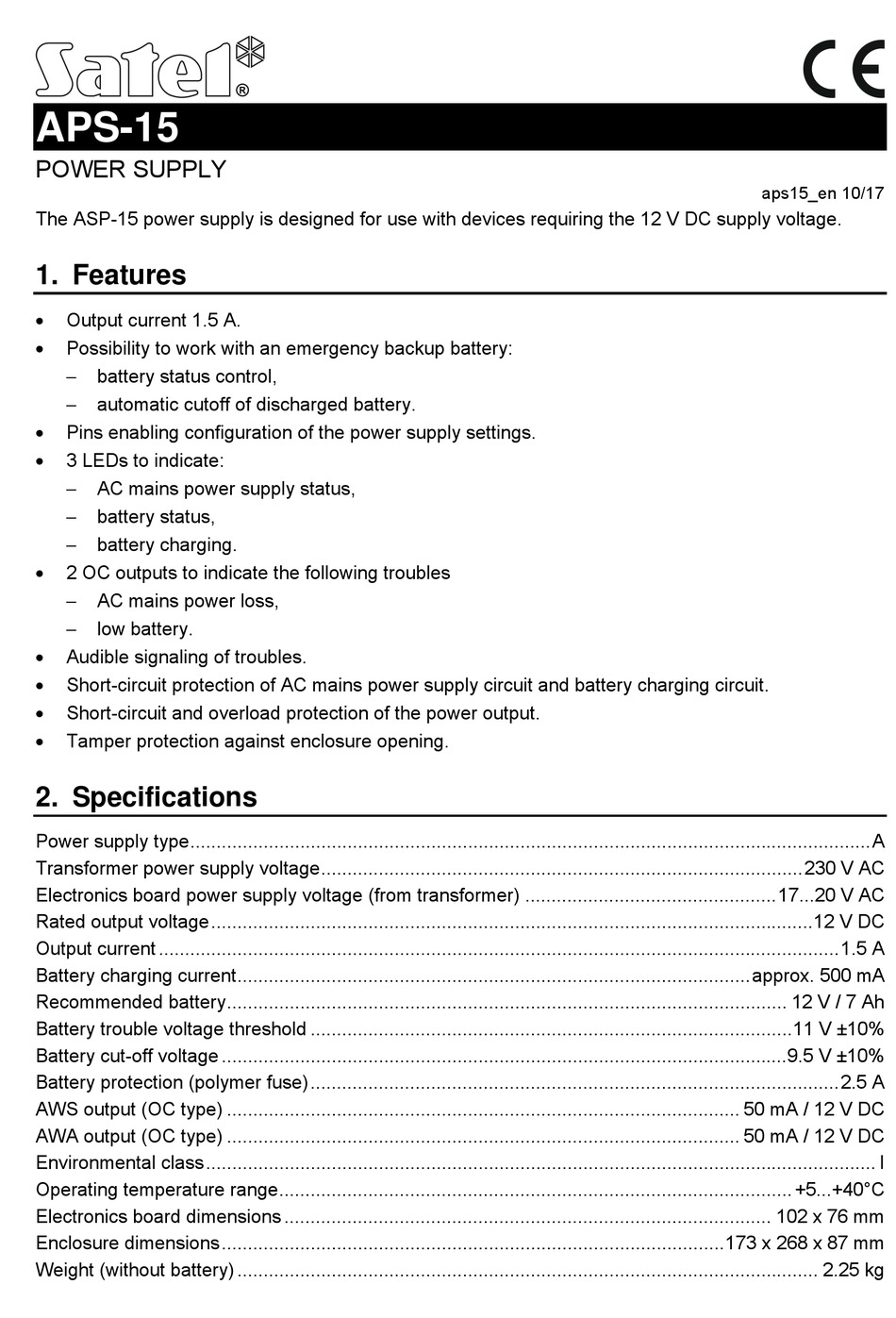

Satel APS-15 Manual

APS-15
POWER SUPPLY
The ASP-15 power supply is designed for use with devices requiring the 12 V DC supply voltage.

1. Features


Output current 1.5 A.

Possibility to work with an emergency backup battery:

battery status control,

automatic cutoff of discharged battery.

Pins enabling configuration of the power supply settings.

3 LEDs to indicate:

AC mains power supply status,

battery status,

battery charging.

2 OC outputs to indicate the following troubles

AC mains power loss,

low battery.

Audible signaling of troubles.

Short-circuit protection of AC mains power supply circuit and battery charging circuit.

Short-circuit and overload protection of the power output.

Tamper protection against enclosure opening.

2. Specifications

Power supply type..................................................................................................................................A
Transformer power supply voltage............................................................................................230 V AC
Electronics board power supply voltage (from transformer) ................................................17...20 V AC
Rated output voltage...................................................................................................................12 V DC
Output current ..................................................................................................................................1.5 A
Battery charging current..................................................................................................approx. 500 mA
Recommended battery........................................................................................................... 12 V / 7 Ah
Battery trouble voltage threshold ............................................................................................11 V ±10%
Battery cut-off voltage ............................................................................................................9.5 V ±10%
Battery protection (polymer fuse).....................................................................................................2.5 A
AWS output (OC type) .................................................................................................. 50 mA / 12 V DC
AWA output (OC type) .................................................................................................. 50 mA / 12 V DC
Environmental class................................................................................................................................ I
Operating temperature range.................................................................................................. +5...+40°C
Electronics board dimensions ............................................................................................. 102 x 76 mm
Enclosure dimensions................................................................................................173 x 268 x 87 mm
Weight (without battery) ............................................................................................................... 2.25 kg
aps15_en 10/17
