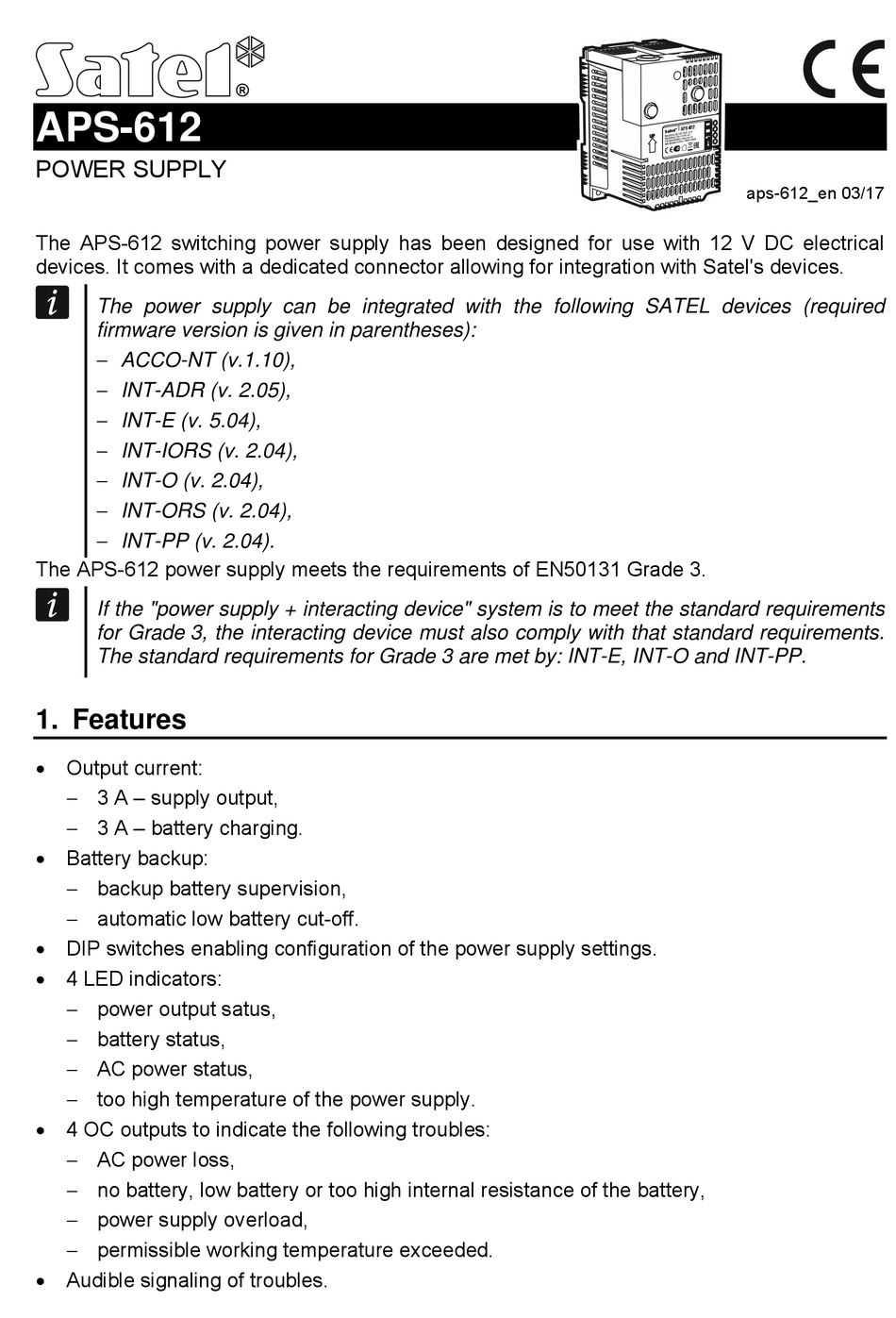

Satel APS-612 Manual

APS-612
POWER SUPPLY
The APS-612 switching power supply has been designed for use with 12 V DC electrical
devices. It comes with a dedicated connector allowing for integration with Satel's devices.
The power supply can be integrated with the following SATEL devices (required
firmware version is given in parentheses):
 ACCO-NT (v.1.10),
 INT-ADR (v. 2.05),
 INT-E (v. 5.04),
 INT-IORS (v. 2.04),
 INT-O (v. 2.04),
 INT-ORS (v. 2.04),
 INT-PP (v. 2.04).
The APS-612 power supply meets the requirements of EN50131 Grade 3.
If the "power supply + interacting device" system is to meet the standard requirements
for Grade 3, the interacting device must also comply with that standard requirements.
The standard requirements for Grade 3 are met by: INT-E, INT-O and INT-PP.

1. Features

 Output current:
 3 A – supply output,
 3 A – battery charging.
 Battery backup:
 backup battery supervision,
 automatic low battery cut-off.
 DIP switches enabling configuration of the power supply settings.
 4 LED indicators:
 power output satus,
 battery status,
 AC power status,
 too high temperature of the power supply.
 4 OC outputs to indicate the following troubles:
 AC power loss,
 no battery, low battery or too high internal resistance of the battery,
 power supply overload,
 permissible working temperature exceeded.
 Audible signaling of troubles.
aps-612_en 03/17
