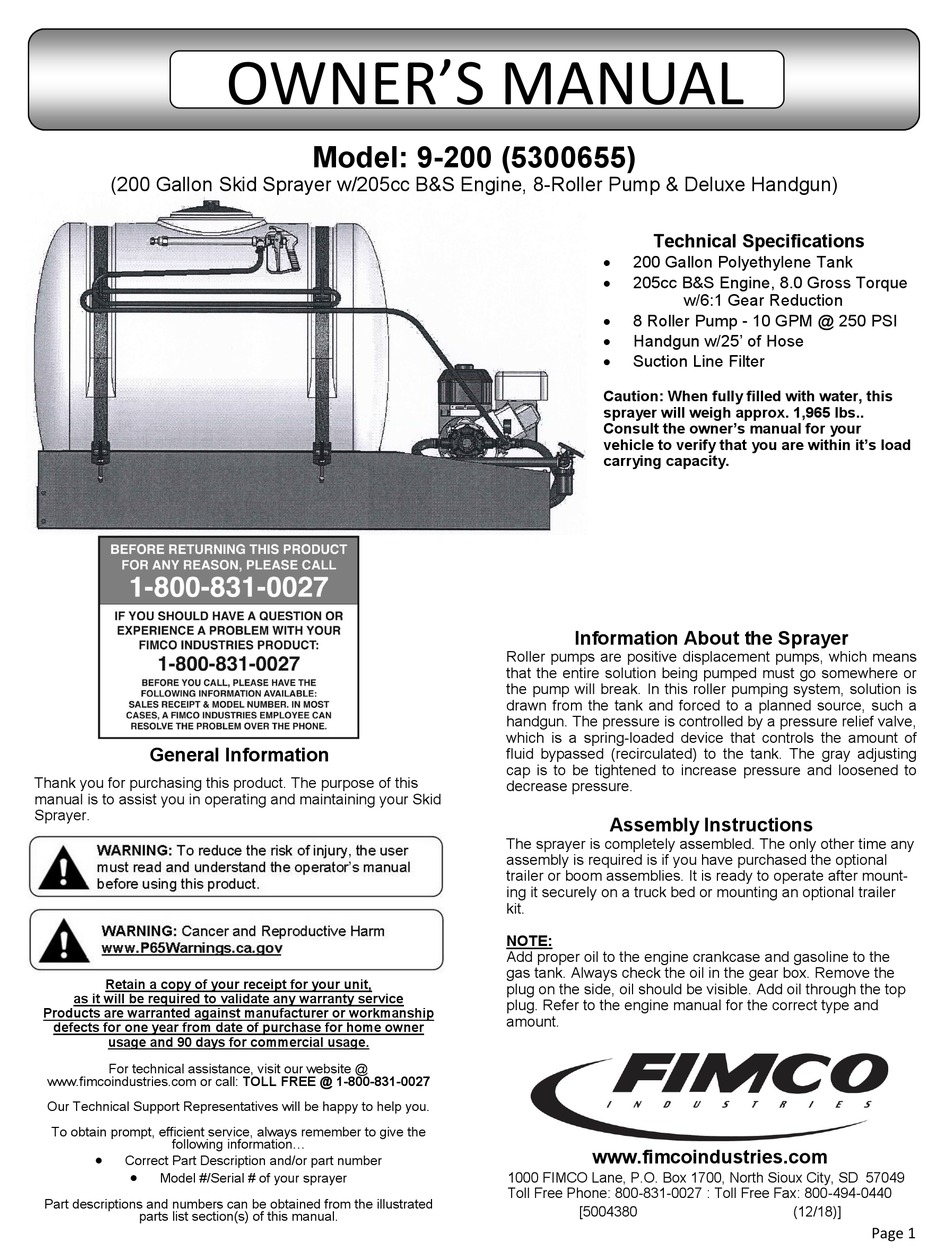

Fimco 9-200 Owner's Manual

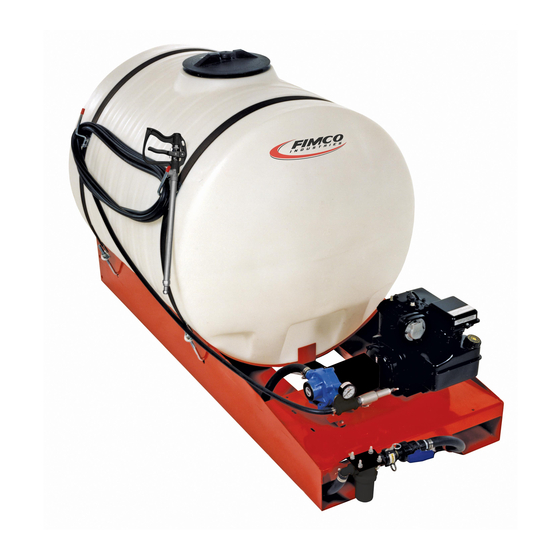

(200 Gallon Skid Sprayer w/205cc B&S Engine, 8-Roller Pump & Deluxe Handgun)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your Skid
Sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Model: 9-200 (5300655)
Technical Specifications

200 Gallon Polyethylene Tank

205cc B&S Engine, 8.0 Gross Torque
w/6:1 Gear Reduction

8 Roller Pump - 10 GPM @ 250 PSI

Handgun w/25' of Hose

Suction Line Filter
Caution: When fully filled with water, this
sprayer will weigh approx. 1,965 lbs..
Consult the owner's manual for your
vehicle to verify that you are within it's load
carrying capacity.
Information About the Sprayer
Roller pumps are positive displacement pumps, which means
that the entire solution being pumped must go somewhere or
the pump will break. In this roller pumping system, solution is
drawn from the tank and forced to a planned source, such a
handgun. The pressure is controlled by a pressure relief valve,
which is a spring-loaded device that controls the amount of
fluid bypassed (recirculated) to the tank. The gray adjusting
cap is to be tightened to increase pressure and loosened to
decrease pressure.
Assembly Instructions
The sprayer is completely assembled. The only other time any
assembly is required is if you have purchased the optional
trailer or boom assemblies. It is ready to operate after mount-
ing it securely on a truck bed or mounting an optional trailer
kit.
NOTE:
Add proper oil to the engine crankcase and gasoline to the
gas tank. Always check the oil in the gear box. Remove the
plug on the side, oil should be visible. Add oil through the top
plug. Refer to the engine manual for the correct type and
amount.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004380 (12/18)]
Page 1
