Texas Instruments DAC5652AEVM User Manual

Evaluation module
Hide thumbs

Advertisement

Quick Links

Download this manual

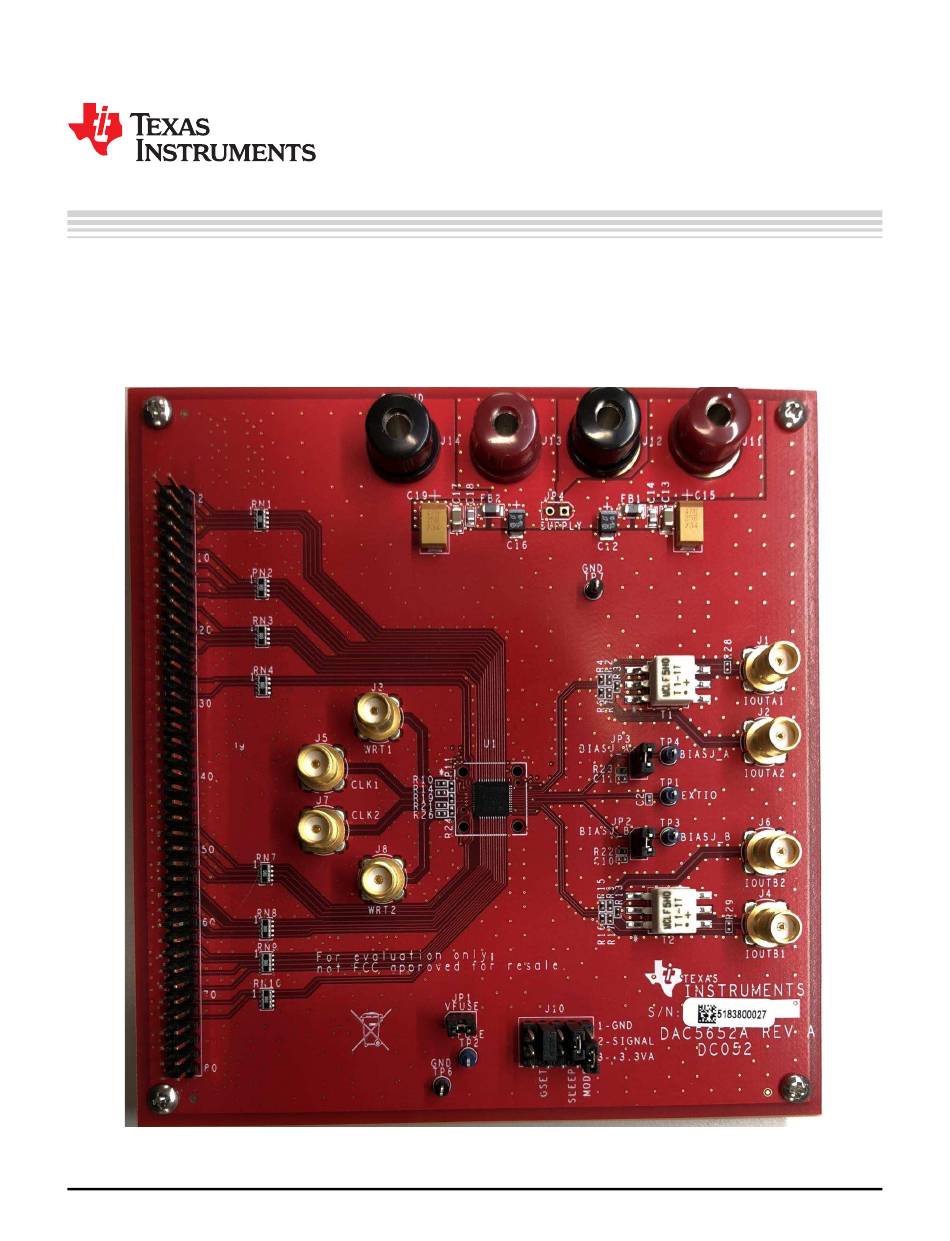

This user's guide describes the characteristics, operation, and use of the DAC5652A evaluation module
(EVM). This EVM is designed to evaluate the performance of the DAC5652A dual, 10-bit, 275-MSPS
digital-to-analog converter (DAC) in a variety of configurations. Throughout this document, the terms
evaluation board, evaluation module, and EVM are synonymous with the DAC5652AEVM. This document
includes a schematic, printed circuit board (PCB) layouts, and a complete bill of materials (BOM).
SLAU773 – May 2018
Submit Documentation Feedback
DAC5652AEVM User's Guide
Contents
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SLAU773 – May 2018
DAC5652AEVM User's Guide
1

Advertisement

loading

Related Manuals for Texas Instruments DAC5652AEVM

Summary of Contents for Texas Instruments DAC5652AEVM

  • Page 1 (DAC) in a variety of configurations. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DAC5652AEVM. This document includes a schematic, printed circuit board (PCB) layouts, and a complete bill of materials (BOM).

  • Page 2: Table Of Contents

    Input Data Mode ....................... Quick-Start Procedure List of Figures ................... DAC5652AEVM Setup Diagram List of Tables ......................Input Connector J9 ..................Transformer Output Configuration DAC5652AEVM User's Guide SLAU773 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 3: Dac5652Aevm Setup Diagram

    EVM to allow external reference to be provided to the DAC. Required Hardware and Software The following hardware and software are required to evaluate the DAC5652A device: • DAC5652AEVM: Main circuit board containing the DAC to be evaluated • TSW1400EVM: Hardware that generates digital patterns for the DAC: TSW1400EVM •...

  • Page 4: Power Requirements

    DAC5652AEVM Operation Procedure The DAC5652AEVM can be set up in a variety of configurations to accommodate a specific mode of operation. Before starting evaluation, the user must decide on the configuration and make the appropriate connections or changes. The demonstration board comes with following factory-set configuration: Single clock source mode using a clock input at J3.

  • Page 5: Input Connector J9

    Ground Ground 3.2.1 Output Signal The DAC5652AEVM can be configured to drive a doubly terminated 50-Ω cable or provide unbuffered differential outputs. 3.2.2 Transformer-Coupled Signal Output The factory-set configuration of the demonstration board provides the user with a single-ended output signals from channel A and B of the DAC at SMA connector J1 and J4.

  • Page 6: Device Modes And Settings

    R23 is used to set the output current of channel A and R22 is used to set channel B. Device Modes and Settings Sleep Mode The DAC5652AEVM provides a means of placing the DAC5652A into a power-down mode. This mode is activated by placing jumper J10 between pins 5 and 6. Gain Set The full-scale output current on the DAC5652A can be set two ways: both channels independently or simultaneously.
  • Page 7 6. Verify the output signal at J1 and J2 7. Adjust the channel 1 output delay on the HP8133A if needed to eliminate timing errors SLAU773 – May 2018 DAC5652AEVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
