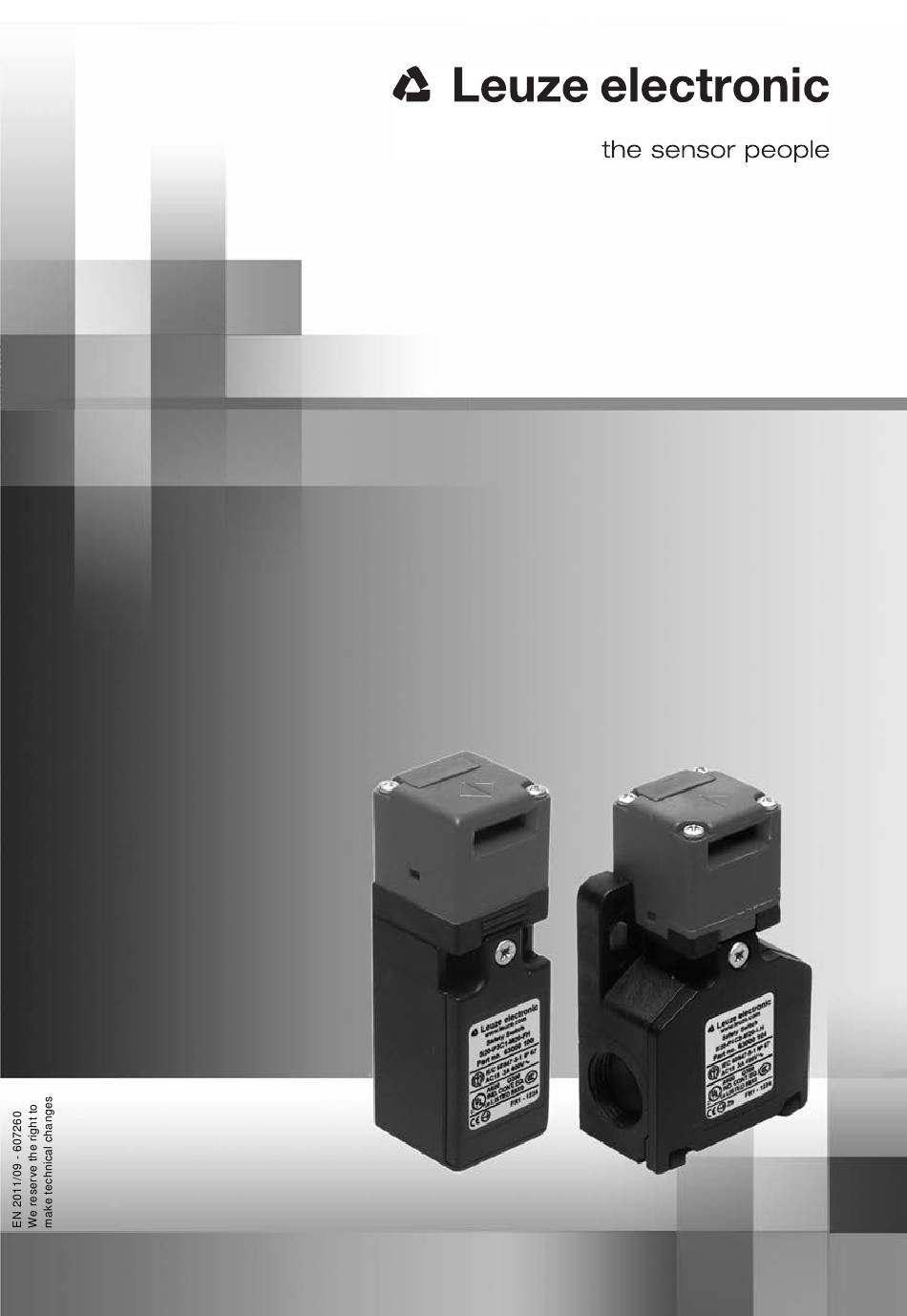

- Page 1 Safety Switches O r i g i n a l o p e r a t i n g i n s t r u c t i o n s Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 2: Table Of Contents
To be performed daily by the operating personnel ............26 Cleaning......................27 Disposing ......................28 Service and support ................... 29 Accessories ....................... 30 13.1 Accessory dimensional drawings ..................31 Technical data ....................35 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 3 EC Declaration of Conformity ................38 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 4: About This Document
About this document About this document Other applicable documents The information on the S20 Safety Switch is divided into two documents. Docu- ment "S20 Application information" contains only the most important safety notices. For the safe implementation, testing and operation, download document S20 Safe implementation and operation from Leuze website. -
Page 5: Used Symbols And Signal Words
Text passages with this symbol provide you with further information. Symbols for action steps Text passages with this symbol instruct you to perform actions. Placeholder in the product description for all variants Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 6: Safety
Before using the Safety Switch, a risk evaluation must be performed according to valid standards (e.g. EN ISO 12100-1, EN ISO 13849-1, EN ISO 14121). For mounting, operating and testing, document S20 Safe implementation and opera- tion, application information as well as all applicable national and international standards, regulations, rules and directives must be observed. -
Page 7: Approved Purpose And Foreseeable Improper Operation
S20 Safety Switches must be connected in such a way that a dangerous state can only be activated while the protective device is closed and so that the dangerous state stops upon opening of the protective device. -
Page 8: Foreseeable Misuse
Safety Furthermore, the S20 Safety Switch must not be used under the following condi- tions: • high concentration of dust particles in the surrounding area • rapidly changing ambient temperature (leads to condensation) • in the event of strong physical shocks •... -
Page 9: Competent Personnel
• regular testing by competent personnel Exemption of liability Leuze electronic GmbH + Co. KG is not liable in the following cases: • Safety Switch is not used as intended • safety notices are not adhered to • mounting and electrical connection are not properly performed •... -
Page 10: Device Description

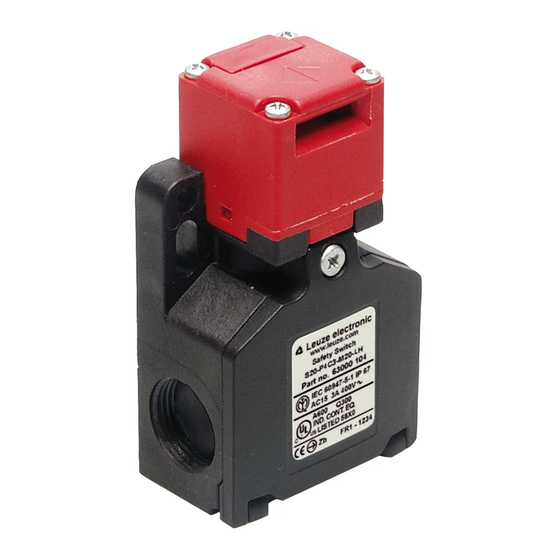

Device description Device description The Safety Switch of the S20 series is an electro-mechanical switching device in a housing made of glass-fibre-reinforced and non-combustible plastic; the device satisfies protection rating IP 67. The standard design facilitates easy replacement. By means of the funnel-shaped insertion opening, the actuator self-centers, even if the door is slightly misadjusted. - Page 11 63000106 2NC + 1NO, 1 cable entry / M12 plug 24.2 14.2 30.8 30.8 Figure 3.1: Dimensions of S20-P3C1-M20-FH, S20-P1C1-M20-FH30 and S20- P4C1-M20-FH in mm 14.2 M12x1 30.8 Figure 3.2: Dimensions of S20-P4C1-M12-FH in mm (M12 plug dimensions) Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 12 52.2 14.1 31.6 Figure 3.3: Dimensions of S20-P1C3-M20-LH and S20-P4C3-M20-LH in mm The deflection head can be turned in 90° increments and set to 5 approach direc- tions. A selection of different actuators ensures that the Safety Switch can be mounted in any position.
-
Page 13: Functions
(e.g. upon opening of the protective device). As a result, the machine can only be switched on if the protective device is closed. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 14: Applications
Applications The Safety Switch can be used for e.g. the following protective devices: • turning or swiveling moveable guards • laterally moveable protective gratings or sliding gates • protective flaps Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 15: Mounting
Protect the housing and deflection head from materials penetrating the enclo- sure (environmental conditions (see chapter 14)). Test to ensure proper function. Adjusting the deflection head Loosen the 2 screws on the deflection head. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 16: Mounting The Safety Switch
• Safety Switch and actuator can be well matched to one another mechani- cally and can be permanently mounted • accessible to qualified personnel for testing and replacement • difficult to access by operating personnel while the protective device is open Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 17: Mounting The Actuator
Prerequisites for proper function: • actuator is not deformed or damaged • actuator is suitable for the Safety Switch Proper function is ensured only with original accessories (see chapter 13). Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 18 Mounting Wrong Correct Align actuator. Play for the actuator in the closed state: 0.5–4.5 mm. Secure actuator with rivets or tamperproof screws so that it cannot be detached. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 19: Electrical Connection
• cable gland with appropriate protection rating • maximum current load is observed (see chapter 14) Figure 7.1: Contact block 2NC (S20-P3xxx) Figure 7.2: Contact block 1NC + 1NO (S20-P1xxx) Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 20 Electrical connection Figure 7.3: Contact block 2NC + 1NO (S20-P4xxx) Figure 7.4: Pin assignment of the 8-pin M12 plug (S20-xxx-M12-xxx) Unscrew the housing cover. Connect the contact block according to the circuit diagram. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 21 Electrical connection +24V +24V S20-P3C1-M20-FH MSI-SR4 Var. B Var. A Spark extinction circuit, suitable spark extinction provided Figure 7.5: Connection example S20-P3C1-M20-FH +24V +24V S20-P1C1-M20-FH MSI-SR4 S20-P1C3-M20-FH Var. B Var. A Spark extinction circuit, suitable spark extinction provided Figure 7.6: Connection example S20-P1C1-M20-FH Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 22 Electrical connection Tighten cable terminal screws with 0.6–0.8 Nm. Tighten the housing cover with 0.7–0.9 Nm. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 23: Setting The Device Into Service
• Safety Switch is mounted and connected according to these instructions • operating personnel have been trained in the correct use Test the function of the Safety Switch (see chapter 9). The Safety Switch is then ready for use. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 24: Testing
Testing Testing S20 Safety Switches are maintenance free. Nevertheless, they must be replaced after maximum 1,000,000 switching cycles. Always replace the entire Safety Switch including actuator. For the testing intervals, observe nationally applicable regulations. Document all tests in a comprehensible manner. -
Page 25: To Be Performed Daily By The Operating Personnel
Make certain that the machine cannot be started while the protective device is open. Close the protective device and start the machine. Test whether the machine stops upon opening of the protective device. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 26: Cleaning
• protective device is opened and machine is switched off • voltage supply to the Safety Switch is interrupted Periodically clean the Safety Switch while the protective device is opened (e.g. with vacuum cleaner). Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 27: Disposing
Disposing Disposing The nationally valid regulations for electro-mechanical components are to be observed when disposing. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 28: Service And Support
Return address for repairs: Service Center Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen - Teck / Germany Leuze electronic offers a regular safety inspection by a competent person. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 29: Accessories
Accessories Accessories Table 13.1: Actuators of the AC-AN series for the S20 Safety Switch Article Part No. Description AC-AN-S 63000700 Straight AC-AN-A 63000701 Angled AC-AN-F4 63000702 Straight, flexible in 4 directions AC-AN-F2J2 63000703 Straight, flexible in 2 directions, alignable in 2... -
Page 30: Accessory Dimensional Drawings
CB-M12-25000E-8GF 678063 PUR, 8-pin, 25 m, shielded, M12 coupling, straight, prefabricated on one end 13.1 Accessory dimensional drawings 14.5 Figure 13.1: AC-AN-S actuator Ø 4.5 14.5 Figure 13.2: AC-AN-A actuator Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 31 Accessories Figure 13.3: AC-AN-F4 actuator Figure 13.4: AC-AN-F2J2 actuator Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 32 Accessories 20.6 14.4 Figure 13.5: AC-AN-SL actuator 41.7 20.6 14.4 Figure 13.6: AC-AN-AL actuator Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 33 Accessories 14.4 Figure 13.7: AC-AN-F1J2 actuator 14.5 Figure 13.8: AC-AN-ASH actuator Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 34: Technical Data
S20-P3xxx: 10 N S20-P1xxx: 10 N S20-P4xxx: 10 N S20-P4C1-M20-FH30: 30 N Actuating path with forced separation S20-P3xxx: S20- min. 9.0 mm P1xxx: min. 7.2 mm S20-P4xxx: min. 7.8mm Mechanical life time according to 1,000,000 switching cycles IEC 60947-5-1 Actuation frequency in accordance with max. - Page 35 Protection rating IP 67 Contact protection protective insulation O Recoil tolerance 4.5 mm Contact allocation S20-P3xxx: 2NC S20-P1xxx: 1NC + 1NO S20-P4xxx: 2NC + 1NO Contact material silver alloy Switching principle slow-action contact Opening of contact positive-forced Rated insulation voltage with screw terminal...
- Page 36 IEC 60269-1 with M12 plug connection Table 14.3: Housing Housing material fiberglass-reinforced, thermo-plastic plastic, self-extinguishing Table 14.4: Connection Number of cable entries S20-P3C1-xxx: 1 S20-P1C1-xxx: 1 S20-P4C1-xxx: 1 S20-P1C3-xxx: 3 S20-P4C3-xxx: 3 Type of cable entry M20 x 1.5 Conductor cross-section (stranded) with 1 x 0.5 mm...
- Page 37 EC Declaration of Conformity EC Declaration of Conformity You can download this EC Declaration of Conformity as a PDF from Leuze website. Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
