Receiver Ports - CHCNAV i70+ User Manual

Getting started with i70+

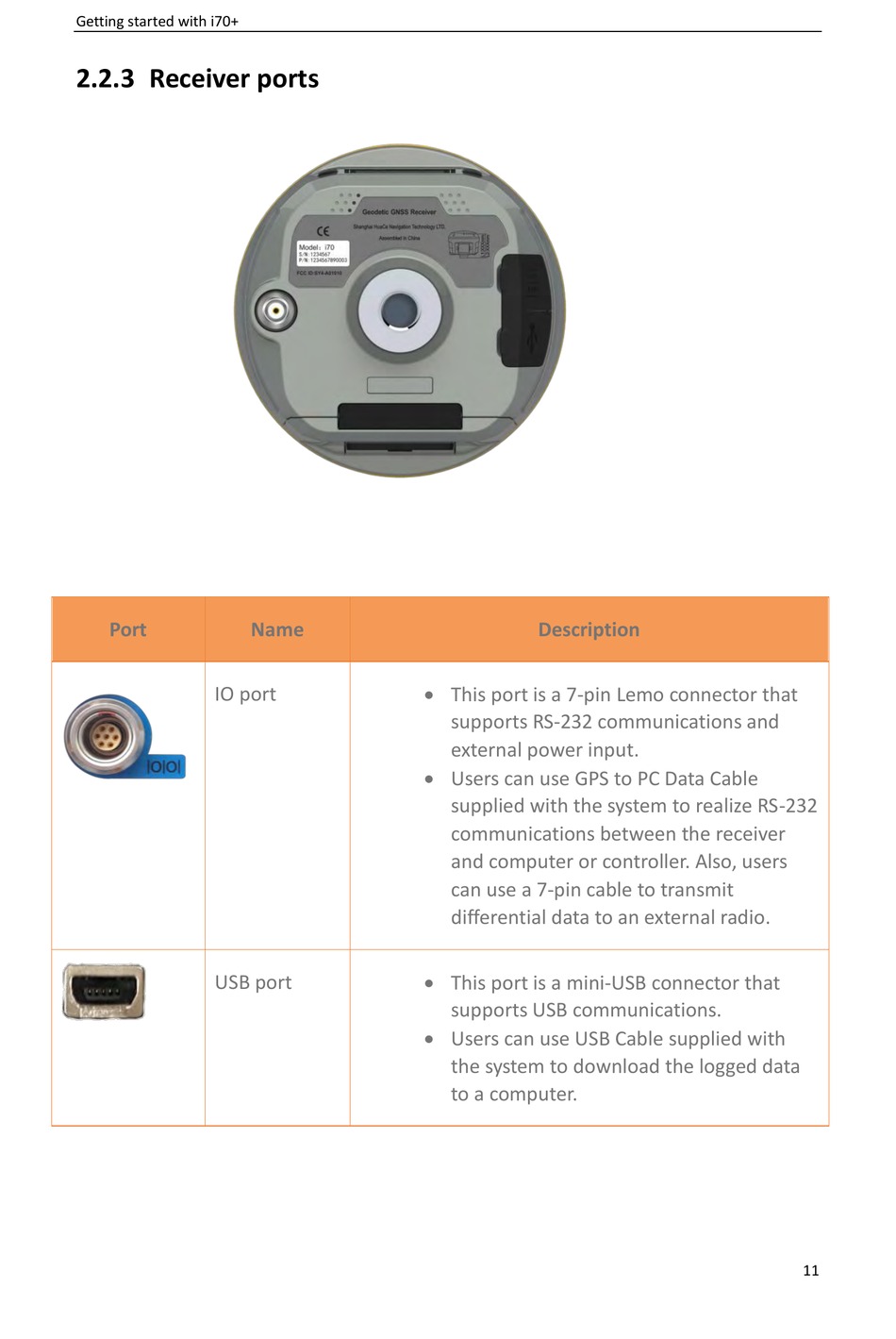

2.2.3 Receiver ports

Port
IO port
USB port
Name Description
 This port is a 7-pin Lemo connector that
supports RS-232 communications and
external power input.
 Users can use GPS to PC Data Cable
supplied with the system to realize RS-232
communications between the receiver
and computer or controller. Also, users
can use a 7-pin cable to transmit
differential data to an external radio.
 This port is a mini-USB connector that
supports USB communications.
 Users can use USB Cable supplied with
the system to download the logged data
to a computer.
11
