Power button (Red)

2.2.2 Lower Housing

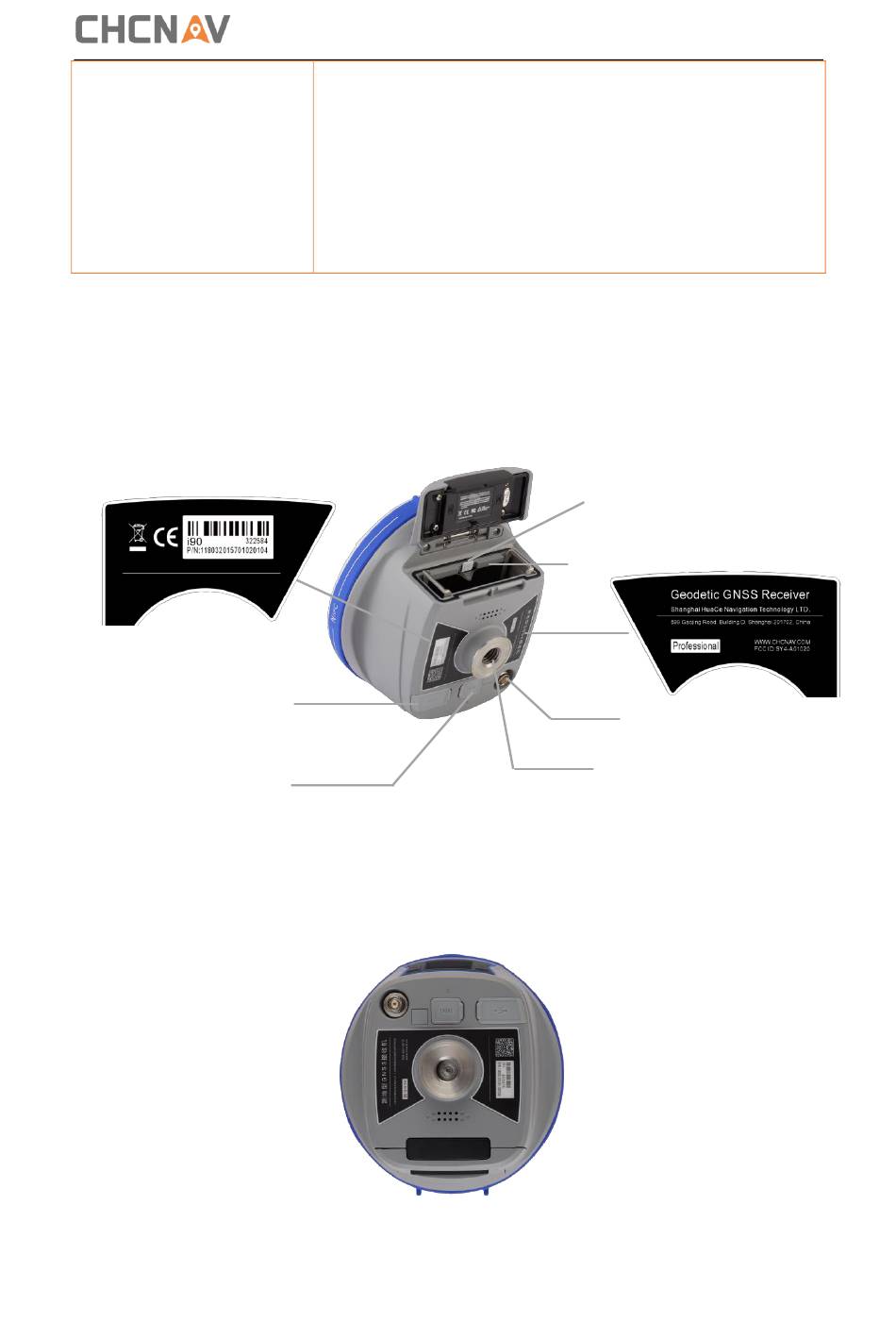

The lower housing contains one SIM card slot, two battery compartments, one TNC radio
antenna connector, two communication and power ports, one 5/8-11 threaded insert, and
two nameplates.
USB communication
and power in port
IO serial communication
and power in port

2.2.3 Receiver Ports

CHCNAV i90 GNSS USER GUIDE
• Works as a Power button:
• Press and hold this button for 3 seconds to turn
on or turn off the receiver.
• Works as a Confirmbutton
• Hold Fn button and press this button for 5 times
continuously to reset the mainboard.
| 2019-9
Getting Started with i90
SIM card slot
Battery compartment
TNC radio antenna connector
5/8-11 threaded
insert
