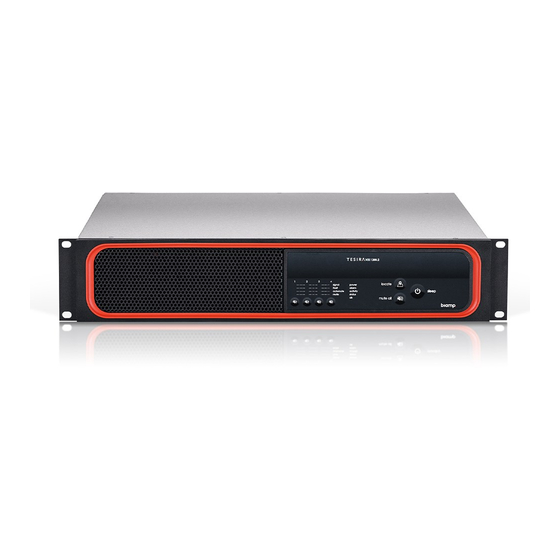

TesiraXEL 1200.2 AMPLIFIER
Installation & Operation Guide
4-channel, 2400W Network Amplifier
The TesiraXEL1200.2 is an AVB/TSN enabled,
digital networked, four-channel amplifier that
allows users to distribute available power to
any channel via a dual asymmetric power bank.
The TesiraXEL 1200.2 supports selectable
impedance (4Ω, 8Ω, 70V, or 100V) and delay
equalization per channel.
The TesiraXEL1200.2 is equipped with an
audible locate function on the front panel to
validate connected loudspeaker runs without
requiring the amplifier to be configured.
The TesiraXEL 1200.2 comes with a software-
configurable media interface, allowing
designers to choose their preferred network
topology. Redundancy, daisy chain, single-
cable, or separate control and AVB are all
supported.
The TesiraXEL 1200.2 also supports 802.1X
authentication for added security requirements.
Features
•
100% asymmetrical loading per channel
•
Selectable impedance per channel: 4Ω, 8Ω, 70V, 100V
•
Configurable media interface
•
Audible locate
•
Configurable via Tesira Software
•
Auto standby mode
•
Delay equalization per channel
•
Port authentication via IEEE 802.1X
Asymmetric Power Bank
The TesiraXEL 1200.2 amplifier features dual Asymmetric Power Banks which allow customized
distribution of power between pairs of loudspeaker channels, allowing for greater flexibility and
efficiency in sound system design.
Network Interface
The TesiraXEL 1200.2 amplifier is equipped with two network interface ports (RJ-45 connectors)
that may be configured as a redundant pair, separated media network and control, or used for
daisy-chaining multiple devices.
