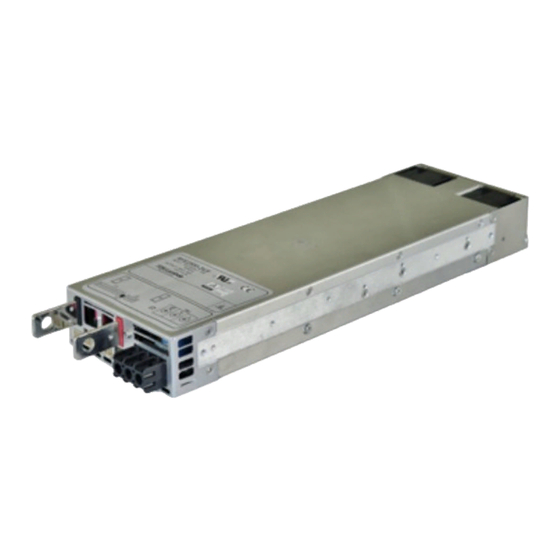

RFE2500 & RFE2500/S (PMBUS) SERIES INSTRUCTION MANUAL
RFE2500 & RFE2500/S (PMBus) SERIES SPECIFICATIONS......................................1
1.1
1.2
1.3
1.4
SAFETY APPROVALS ...........................................................................................7
2.1
SINGLE UNIT OPERATION ................................................................................. 11
3.1
3.2
POWER SUPPLIES CONNECTION ....................................................................... 16
4.1
4.2
PMBus INTERFACE OPTION .............................................................................. 18
5.1
5.2
5.3
RFE2500 rated output Current and Voltage versus Line Voltage. ............................. 3
RFE2500 Output Power vs. Temp derating. ............................................................... 4
RFE2500 Outline Drawing .......................................................................................... 5
Rear Panel IN/OUT Connector Pins Function Description ..................................... 6
Safety Instructions ...................................................................................................... 7
Rear Panel Indicator ................................................................................................. 11
Single unit operation ................................................................................................ 12
3.2.1
Basic configuration (Local Sense) ............................................................... 12
3.2.2
Basic configuration (Remote Sense) ........................................................... 12
3.2.3
ON/OFF Control by Enable .......................................................................... 13
3.2.4
Output Voltage Programming by Built-in Potentiometer .......................... 13
3.2.5
Output Voltage Programming by PMBus (Optional) .................................. 13
3.2.6
Output Voltage Programming by External Voltage .................................... 14
3.2.7
Current Programming by PMBus (Optional) ............................................... 14
3.2.8
Over Current Programming by External Voltage ........................................ 15
3.2.9
SUPERVISORY Signals (Typical Connection) ................................................ 15
Parallel Operation .................................................................................................... 16
Series Operation ....................................................................................................... 17
RFE2500/S Series I²C Specification ........................................................................... 18
5.1.1
PMBus Interface Option ............................................................................. 19
5.1.2
RFE2500 May Have Optional Power Management Bus Hardware ............. 19
5.1.3
Addressing (A2, A1, A0 Inputs) ................................................................... 19
5.1.4
Serial Clock .................................................................................................. 19
5.1.5
Serial Data ................................................................................................... 19
5.1.6
SMB Alert .................................................................................................... 20
5.1.7
PMBus Typical Connection ......................................................................... 20
PMBus Command Set ............................................................................................... 21
5.2.1
Read Status ................................................................................................. 21
5.2.2
Clear Faults ................................................................................................. 21
5.2.3
Operation (ON/OFF) ................................................................................... 21
5.2.4
Commands to Read Inventory Details ........................................................ 21
Programming and Monitoring Functions ................................................................. 22
5.3.1
Monitoring Output Voltage (READ_VOUT) ................................................. 22
5.3.2
Monitoring Output Current (READ_IOUT) .................................................. 23
5.3.3
Monitoring Supply Temperature (READ_TEMPERATURE_1) ..................... 23
5.3.4
Programming Output Voltage (VOUT_COMMAND) ................................... 23
5.3.5
Programmable Maximum Output Voltage (VOUT_MAX) ........................... 24
5.3.6
Programming Output Current Limit............................................................ 24
5.3.7
Enabling / Disabling Monitoring Filter ........................................................ 24
IA746-04-01 Rev. E
Advertisement
Table of Contents
Related Manuals for TDK-Lambda RFE2500 Series
Summary of Contents for TDK-Lambda RFE2500 Series
-
Page 1: Table Of Contents
RFE2500 & RFE2500/S (PMBUS) SERIES INSTRUCTION MANUAL CHAPTER 1: RFE2500 & RFE2500/S (PMBus) SERIES SPECIFICATIONS........1 RFE2500 rated output Current and Voltage versus Line Voltage......3 RFE2500 Output Power vs. Temp derating..............4 RFE2500 Outline Drawing ..................5 Rear Panel IN/OUT Connector Pins Function Description ........6 CHAPTER 2: SAFETY APPROVALS ...................7 Safety Instructions ...................... -
Page 2: Chapter 1: Rfe2500 & Rfe2500/S (Pmbus) Series Specifications
CHAPTER 1: RFE2500 & RFE2500/S (PMBUS) SERIES SPECIFICATIONS RFE2500-12 RFE2500-24 RFE2500-48 RFE2500 SERIES SPECIFICATIONS: RFE2500-12/S RFE2500-24/S RFE2500-48/S 1 Rated output voltage 2 Output voltage set point 12+/-1% 24+/-1% 48+/-1% 3 Output voltage range 9.6~13.2 19.2~29.0 38.4~58 4 Rated Output Current at 180 ≤ Vin ≤ 265Vac (*1) 5 Rated Output Current at 170 ≤... - Page 3 Measured from input-off until the output voltage drops under 5% from the nominal voltage. Open collector signal. Maximum sink current: 10mA, maximum voltage 15V. RFE2500 series considered as professional equipment and not intended for sale to general public. Refer to Output Power vs. temp derating (Paragraph 1.2).
-
Page 4: Rfe2500 Rated Output Current And Voltage Versus Line Voltage
RFE2500 rated output Current and Voltage versus Line Voltage. Iout 2496W Max 38.4~48V 31.25A 1500W Max 1200W Max 85Vac 100Vac 132Vac 170Vac 265Vac Figure 1–1: RFE2500-48; 48/S Iout 2304W Max 19.2~24V 79.4A 62.5A 1500W Max 1200W Max 85Vac 100Vac 132Vac 170Vac 265Vac Figure 1–2: RFE2500-24;... -
Page 5: Rfe2500 Output Power Vs. Temp Derating
RFE2500 Output Power vs. Temp derating. RFE2500-12, 48V RFE2500-24V Pout Pout 2400W 2300W 1500W 1500W 1350W 1350W 1200W 1200W 100Vac 132Vac 170Vac 265Vac 100Vac 132Vac 170Vac 265Vac 85Vac 85Vac Figure 1–4: Output Power at temp -10~50°C. RFE2500-12, 48V RFE2500-24V Pout Pout 1920W 1840W... -
Page 6: Rfe2500 Outline Drawing
RFE2500 Outline Drawing... -
Page 7: Rear Panel In/Out Connector Pins Function Description
Rear Panel IN/OUT Connector Pins Function Description J1 – Main Connector Pin # Function Description Referenced to Negative sense. J1-1, J1-15 -SENSE -SENSE The -SENSE signal should be connected to -V on Power Supply or Load side. Positive sense. J1-2 +SENSE +SENSE The +SENSE signal should be connected to +V on Power Supply or Load side. -
Page 8: Chapter 2: Safety Approvals
Einsatz können die im Gerät integrierten Schutzfunktionen beeinträchtigt werden. TDK-Lambda ist nicht haftbar für Schäden, die durch Missachtung dieser Sicherheitsvorschriften entstehen können. CAUTION: RFE2500-xy units are not authorized for use as critical component in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the managing director of TDK- Lambda. - Page 9 Erdungskonzept RFE2500-xy-Netzteile sind Produkte der Schutzklasse I. Um die Gefahr eines Stromschlags zu minimieren, müssen die RFE2500-xy-Netzteile an eine Schutzerde angeschlossen werden. Die Geräte müssen über ein dreiadriges Netzkabel an das Wechselstromnetz angeschlossen werden, wobei der PE-Anschluss fest mit einer elektrischen Masse (Schutzerde) an der Netzsteckdose verbunden sein muss.
- Page 10 Spannungsführende Teile Die Geräteabdeckung darf nicht durch Endanwender geöffnet werden. Interne Modifikationen, sowie Bauteileaustausch ist nur durch TDK-Lambda qualifiziertes Personal erlaubt. Vor Austausch von Bauteilen ist das Netzkabel bzw. die Versorgungsspannung zu trennen. Energieversorgungsanschlüsse sind immer zu trennen, um Personenschäden durch gefährliche Energieinhalte und Spannungen auszuschliessen.
- Page 11 SYMBOLS/ ZEICHEN: Caution, risk of danger. Instruction manual symbol. The instrument will be marked with this symbol when it is necessary for the user to refer to the Safety & Installation or Instruction manual. Achtung Gefahr. Symbol im Benutzerhandbuch. Das Gerät wird mit diesem Symbol gekennzeichnet, wenn der Benutzer auf das Sicherheits- &...
-
Page 12: Chapter 3: Single Unit Operation
CHAPTER 3: SINGLE UNIT OPERATION Rear Panel Indicator 1. DC OK – LED indicator: GREEN Output Voltage is above 90% ± 5% of set Output Voltage. Output Voltage is below 90% ± 5% of set Output Voltage. DC OK LED *Use UL approved Insulated Terminal Lugs Figure 3–1: Front Panel Indicator *J1 Mating connector comes with basic configuration settings. -
Page 13: Single Unit Operation
Single unit operation 3.2.1 Basic configuration (Local Sense) • ± SENSE have to be connected to the RFE2500 ± Local SENSE terminals prior to operating the supply. ENABLE input must be connected to SIGNAL RETURN in order for the supply to turn on. •... -
Page 14: On/Off Control By Enable
Potentiometer position Figure 3–6: Output Voltage Limits 3.2.5 Output Voltage Programming by PMBus (Optional) Output Voltage of RFE2500 Series can be programmed by PMBus between approximately 80%-120% for 24V, 48V and 80%-110% for 12V of nominal output. RFE2500 VOLTAGE PROG. J1-3... -
Page 15: Output Voltage Programming By External Voltage
3.2.6 Output Voltage Programming by External Voltage Output Voltage of RFE2500 Series can be programmed by external voltage source between approximately 80%-120% for 24V, 48V and 80%-110% for 12V of nominal output voltage (For Output voltage limits see Graph enclosed analog voltage programming 0.5V~5V) RFE2500 VOLTAGE PROG. -
Page 16: Over Current Programming By External Voltage
3.2.8 Over Current Programming by External Voltage Over Current Protection (OCP) can be programmed by external voltage source 0~5V. By changing the Current Programming Voltage OCP level could be decreased down to ~40% of Nominal Output Current. RFE2500 CURRENT PROG. J1-4 0~5V -SENSE... -
Page 17: Chapter 4: Power Supplies Connection
CHAPTER 4: POWER SUPPLIES CONNECTION Parallel Operation LOAD RFE2500 +SENSE J1-2 -SENSE J1-1 ENABLE J1-9 SIGNAL RETURN J1-8 VOLTAGE PROG. J1-3 • Up to 8 x RFE2500 units with the same rating (voltage and TRIM J1-13 current) can be used in parallel to increase the output CURRENT PROG. -
Page 18: Series Operation
Series Operation • Up to 2 units with the same rating (voltage and current) can be used in series to increase the output voltage. • Connect Main Output in series (as shown). • Diodes should be connected in parallel with each unit output to prevent reverse voltage. Each diode should be rated to at least the power supply rated output voltage and output current. -
Page 19: Chapter 5: Pmbus Interface Option
CHAPTER 5: PMBUS INTERFACE OPTION RFE2500/S Series I²C Specification 1. FEATURES 1.1 Output voltage measurement 1.2 Output voltage programming. 1.3 Output current measurement 1.4 Internal ambient temperature measurement 1.5 Product information 1.6 Status information 1.7 SMBus alert 1.8 Clock frequency: 100KHz 1.9 Address lines: 3 2. -
Page 20: Pmbus Interface Option
5.1.1 PMBus Interface Option The communications bus signals are powered by an external 3.3V power source pulled up with a 1.5kΩ resistor. 5.1.2 RFE2500 May Have Optional Power Management Bus Hardware The PMBUS interface in the RFE2500 (/S option) includes: Monitoring the Output Voltage, Current and Temperature. -
Page 21: Smb Alert
5.1.6 SMB Alert SMBALERT is used to indicate to the HOST about any Faults/Error Conditions. This line must be connected to +3.3V (referenced to Signal RTN) via a 1.5kΩ pull up resistor. This Signal is HIGH to indicate that no fault/error is present. If some fault/error occurs, the signal will go LOW. The Host system must poll multiple supplies after receiving SMBALERT to retrieve fault/warning information. -
Page 22: Pmbus Command Set
PMBus Command Set The interval between two consecutive commands to the power supply should be at least 25ms to ensure proper monitoring functionality. 5.2.1 Read Status This Command is used to read the status of the Power Supply. The Status information is stored in a special register called the “STATUS REGISTER”. -
Page 23: Programming And Monitoring Functions
Programming and Monitoring Functions ���� = ( �������� + ���� ) ∗ 10 ���� = �����∗10 −����� −���� ���� For Monitoring and Programming functions use the following equation. This is the direct data format. ���� Where Y - digital value sent or received from the supply. X is the normal value (V, A, °C) m, b, R - coefficients that are explained in Table 5-1... -
Page 24: Monitoring Output Current (Read_Iout)
5.3.2 Monitoring Output Current (READ_IOUT) The accuracy of the current reading is +/-10% The read back output current can be calculated using the “Direct data Format”. Refer to Table 5-1 for the Coefficients for calculating the Output Current. Command Used Type #Data Bytes Read Word... -
Page 25: Programmable Maximum Output Voltage (Vout_Max)
5.3.5 Programmable Maximum Output Voltage (VOUT_MAX) The output Voltage can be programmed using the “Direct data Format”. Please refer to Table 5-1 for the Coefficients to be used for calculating the Voltage Programming. Command Used Type #Data Bytes R/W Word Example: Power Supply RFE2500-24;...
