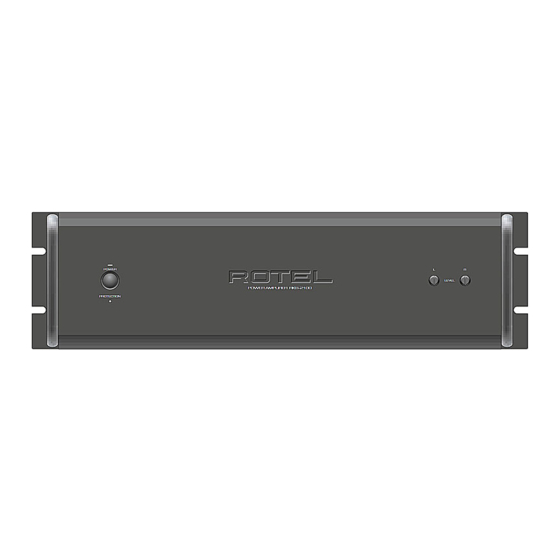

- Page 1 Owner’s manual RKB-2100 Power Amplifier POWER LEVEL POWER AMPLIFIER RKB-2100 PROTECTION...
-
Page 3: Important Safety Instructions
Use only accessories specified by the manufacturer. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Use Class 2 wiring for speaker connections to ensure proper installation and minimize the risk of electrical shock. -
Page 4: 1: Controls And Connections
RKB-2100 Power Amplifier 1: Controls and Connections � � POWER LEVEL POWER AMPLIFIER RKB-2100 PROTECTION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT WARNING 12V TRIG AC BREAKER SHOCK HAZARD—DO NOT OPEN. TO RAIN OR MOISTURE. -
Page 5: 2: Hook-Up Illustration
SHOCK HAZARD—DO NOT OPEN. TO RAIN OR MOISTURE. AVIS: RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR. SPEAKERS SIGNAL SENSE RIGHT LEFT INPUT ���� RIGHT LEFT RIGHT LEFT POWER AMPLIFIER MODEL NO. RKB-2100 SIGNAL OUTPUT POWER CONSUMPTION: 450 W LINK 4 OHMS MINIMUM... -
Page 6: Table Of Contents
RKB-2100 Power Amplifier Contents Important Safety Instructions ....3 1: Controls and Connections .........4 2: Hook-up Illustration .........5 About Rotel ..........7 Getting Started ........7 Features ..............7 A Few Precautions ..........7 Placement ............7 Rack Mounting ............7 Rack Handles ............8 Optional Fan Kit ..........8... -
Page 7: About Rotel
English About Rotel Features top of the RKB-2100. Don’t let any liquid fall into the unit. • Two-channel power amplifier, with 100 A family whose passionate interest in music led watts per channel output into 8 ohms. Likewise, remember the weight of the ampli- them to manufacture high fidelity components... -
Page 8: Rack Handles
Be sure the power switch on the front panel less of whether or not a trigger signal is threaded holes in the handle. If you do re- of the RKB-2100 is turned off. Then, plug one present. move the handles, use the rubber hole plugs end of the cord into the AC power connector supplied with the bracket hardware to fill the... -
Page 9: Signal Connections
Two controls on the front panel, one for each the output devices and shuts down the ampli- The RKB-2100 has two pair of speaker con- channel, provide input level adjustments. These fier if temperatures exceed safe limits. -
Page 10: Speaker Connections
Continuous Power Output into 8 ohms Most difficulties in audio systems are the result (20-20k Hz, < 0.03% THD) The RKB-2100 has one pair of color coded of poor or wrong connections, or improper 100 watts/ch into 8 ohms, all channels driven connections per channel. - Page 12 The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH...
