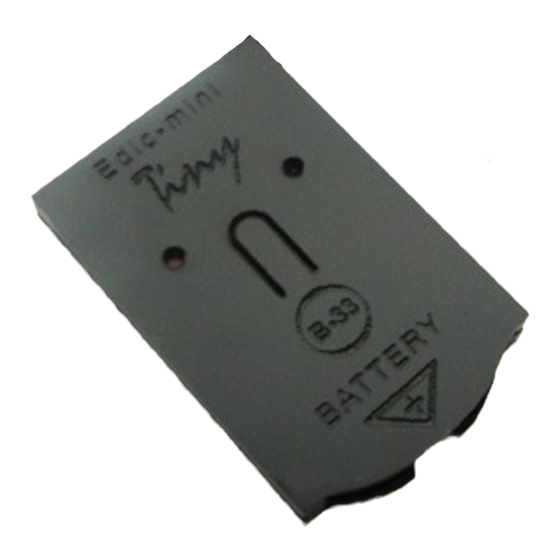

EDIC-mini Tiny model B33
150h/300h/600h/1200h/2400h
Specifications
- Plastic case
- Dimensions: 44x28x mm;
- Weight: <7 g (without a battery);
- Operating temperature range: 0...+40˚C
(32...+104˚F)
- Recording mode – mono;
- Built-in microphone's operating distance:
7...9 m (2-27ft);
- Recording duration: up to 2400 hours
- Battery life in record mode (sampling rate
8KHz, without compression): 67 hours
- Battery life in VAS mode (audio signals
below threshold): up to 90 hours
- In stand-by mode: up to 8.5 months
- Power supply: CR2032 battery (d=20mm,
h=3.2mm)
Advertisement
Table of Contents
Related Manuals for EDIC-mini Tiny B33
Summary of Contents for EDIC-mini Tiny B33
- Page 1 EDIC-mini Tiny model B33 150h/300h/600h/1200h/2400h Specifications - Plastic case - Dimensions: 44x28x mm; - Weight: <7 g (without a battery); - Operating temperature range: 0…+40˚C (32…+104˚F) - Recording mode – mono; - Built-in microphone’s operating distance: 7…9 m (2-27ft); - Recording duration: up to 2400 hours...
- Page 2 Package Content - Voice recorder; - USB cable; - Software CD; - User manual; - Two CR2032 batteries; - Small textile strap. Description Microphone Ring Universal connector Edic-mini Button B-33 BATTERY Battery compartment Figure 1...
- Page 3 Attention! Insert the battery as it is shown on the figure 2 (“plus” to the front side of the recorder). Otherwise, the recorder could be harmed. To insert/ take out the battery, twist the recorder lid and open/close it. Edic-mini B-33 BATTERY Figure 2...
- Page 4 Turning the Recorder on After you inserted the battery, press the button. Keep it pressed for 2- seconds and then release. The recorder will start self testing. While self testing, the recorder LED will flash three times and after a pause the fourth time (if fourth duration will not occur, the battery is uncharged or malfunctioning).
- Page 6 Start and Stop Recording To start/stop recording, keep the button pressed for -4 seconds while the LED does not signal. When the recorder starts recording, the LED flashes five times. When the recorder stops recording, the LED will flash once. While recording, the sequences of LED flashes show the charge of the battery (the first sequence: 1 flash –...
- Page 7 Designed and manufactured by the Telesystems Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries).
- Page 8 Edic-mini Tiny model B33 □ EM Tiny B - 50 h □ EM Tiny B - 00 h □ EM Tiny B - 600 h □ EM Tiny B - 200 h □ EM Tiny B - 2400 h Number __________________________________...
