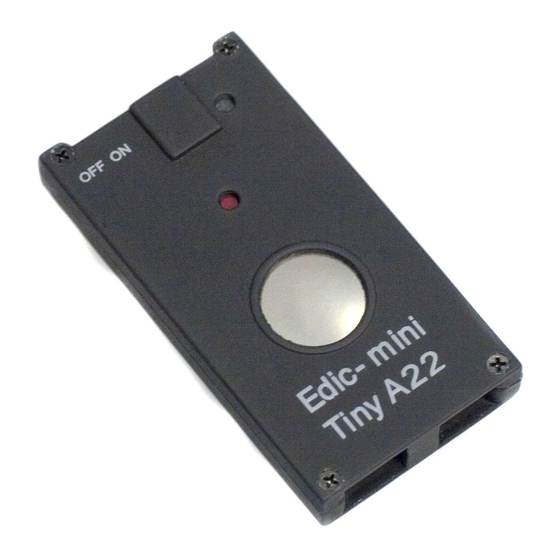

EDIC-mini Tiny model A22
1120/2240/4480/8960/17920/35840
Characteristics:
- Metallic case;
- Dimensions: 50x26x8 mm;
- Weight < 28 g (without a battery);
- Operating temperature range: 0...+40 ˚C
(32...+104˚F);
- Recording mode – mono;
- Recording duration - 600 hours;
- Built-in microphone's operating distance:
7-9 meters (2-27ft);
- Battery life in record mode (sampling rate
8KHz, without compression): 90 hours;
- Battery life in record mode with VAS (audio
signals below threshold): up to 300 hours;
- In stand-by mode: up to three years (up to
8 months);
- Power supply: rechargeable battery with
80 mA/hr capacity;
- Charging from USB computer port.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini Tiny A22 series
Summary of Contents for EDIC-mini Tiny A22 series
- Page 1 EDIC-mini Tiny model A22 1120/2240/4480/8960/17920/35840 Characteristics: - Metallic case; - Dimensions: 50x26x8 mm; - Weight < 28 g (without a battery); - Operating temperature range: 0…+40 ˚C (32…+104˚F); - Recording mode – mono; - Recording duration - 600 hours; - Built-in microphone’s operating distance: 7-9 meters (2-27ft);...
- Page 2 In Box: - Recorder; - USB cable; - Software CD; - Instructions. Button Power switch Universal connector Microphone Figure 1: Edic-mini Tiny model A22...
- Page 3 Turning the Recorder on After you set the power switch (7) into “ON” position, press the button (2). Keep it pressed for 2-3 seconds and then release. The recorder will start self testing. While self testing, the recorder LED will flash three times and after a pause the fourth time.
- Page 5 Charging The rechargeable battery’s charging is automatic after connecting to a USB computer port. Full charging takes three hours. While charging, the recorder LED flashes with 5 second intervals. When the rechargeable battery is charged, the LED will flash without intervals. Charge the rechargeable Li-ion battery every two months even if you do not use the recorder.
- Page 7 Designed and manufactured by the Telesystems Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries).
- Page 8 Edic-mini Tiny model A22 □ EM Tiny A22 - 1120 □ EM Tiny A22 - 2240 □ EM Tiny A22 - 4480 □ EM Tiny A22 - 8960 □ EM Tiny A22 - 17920 □ EM Tiny A22 - 35840...
