Operating Instructions
Bracken Hill
South West Industrial Estate
Peterlee
Co Durham
SR8 2SW
ENGLAND
Tel: +44(0)191 5863511
www.seaward.co.uk
sales@seaward.co.uk
service@seaward.co.uk
Part Number 305A550 Revision 3
January 2008
© 2008 Seaward Electronic Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PrimeTest 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seaward PrimeTest 300

Summary of Contents for Seaward PrimeTest 300

  • Page 1 Operating Instructions Bracken Hill South West Industrial Estate Peterlee Co Durham SR8 2SW ENGLAND Tel: +44(0)191 5863511 www.seaward.co.uk sales@seaward.co.uk service@seaward.co.uk Part Number 305A550 Revision 3 January 2008 © 2008 Seaward Electronic Ltd...
  • Page 2 PrimeTest 300 Operating Instructions - 2 -...

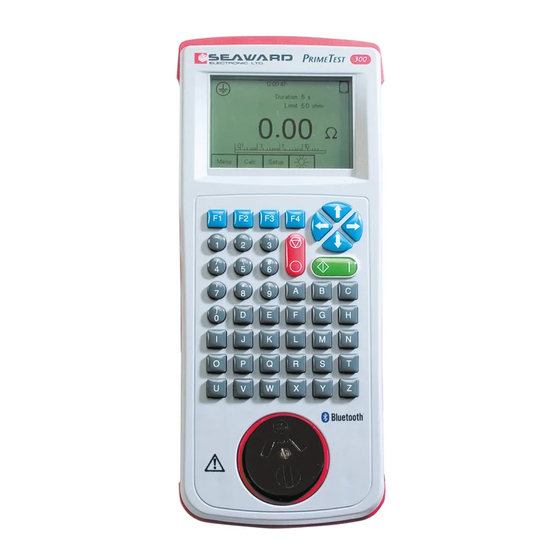

  • Page 3 PrimeTest 300 Operating Instructions Figure 1 PrimeTest 300 Front View Figure 2 PrimeTest 300 End View - 3 -...
  • Page 4 PrimeTest 300 Operating Instructions Figure 3 Earth Continuity Measurement Figure 4 Insulation Measurement (Class II) - 4 -...
  • Page 5 PrimeTest 300 Operating Instructions Figure 5 Protective Earth (PE) Conductor Current Measurement Figure 6 Touch Leakage Measurement - 5 -...
  • Page 6 PrimeTest 300 Operating Instructions Figure 7 RCD and Earth Loop Test Figure 8 IEC Lead Test - 6 -...
  • Page 7 SEAWARD Electronic Limited. This also applies to accompanying drawings and diagrams. Due to a policy of continuous development SEAWARD Electronic Limited reserves the right to alter the equipment specification and description outlined in this...
  • Page 8 PrimeTest 300 Operating Instructions Disposal of old product This product has been designed and manufactured with high quality materials and components that can be recycled and reused. When this symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

  • Page 9: Table Of Contents

    PrimeTest 300 Operating Instructions Table of Contents User Notes ............14 Safety Notes ...........15 Accessories ............16 Standard Accessories ......16 Optional Accessories .......16 Unit Description..........17 Getting Started ..........18 Charging New Batteries ......18 Power On..........18 How to Navigate Menus ......18 Battery Health Check .......19 Connecting to Accessories .......19...
  • Page 10 Bluetooth Connection to a PC ....65 Automatic Test Mode ........66 13.1 Entering an Asset ID ........66 13.2 Entering Site Information......68 13.2.1 Seaward Quick Text ......68 13.2.2 Selecting a Site using Quick Text..69 13.3 Entering Location Information....73 13.3.1 Selecting Location using Quick Text.73 13.3.2...
  • Page 11 Earth Loop Resistance ......95 15.7 RCD Trip Time.........95 15.8 IEC Lead Test..........96 Environmental Conditions ......97 Maintenance ...........98 17.1 Preparing to work on the PrimeTest 300...98 17.2 Securing the PrimeTest 300 .....98 17.3 Cleaning ..........99 17.4 Battery Replacement/Charging....99 17.5 Replacing All Fuses.......100 17.6...
  • Page 12 EMC and Safety Standards. product identified above conforms requirements of Council Directive 89/336/EEC and 73/23 EEC. Seaward Electronic Ltd is registered under BS EN ISO9001:2000 Certificate No: Q05356. - 12 -...
  • Page 13 PrimeTest 300 Operating Instructions Introduction The PrimeTest 300 is a hand held, battery powered, multifunction test instrument capable of performing a comprehensive range of safety tests, including: Earth Continuity Insulation Resistance Power socket wiring check Protective Earth (PE) Conductor Current...

  • Page 14: User Notes

    Note: The PrimeTest 300 is equipped with context sensitive help, providing useful advice and guidance on the safe use of this product. When help is available a HELP icon will appear above the function key F1.

  • Page 15: Safety Notes

    PrimeTest 300 Operating Instructions Safety Notes This PrimeTest 300 has been built and tested in accordance with: BS EN 61010-1: 2001. BS EN 61557 part 1, 2, 4 and 10. To ensure safe operation of the unit, all notes and warnings in these instructions must be observed at all times.

  • Page 16: Accessories

    PrimeTest 300 Operating Instructions Accessories Standard Accessories The PrimeTest 300 is supplied with the following items: 3.1.1 1 off PrimeTest 300 unit 3.1.2 1 off professional carry case 3.1.3 1 off Seaward mains cord 3.1.4 1 off 1.2m test lead black 3.1.5...

  • Page 17: Unit Description

    Operating Instructions Unit Description Refer to fig. 1 and fig. 2. The PrimeTest 300 is a hand held, multi function, instrument designed to perform electrical safety tests on Class I and Class II equipment as well as performing installation checks.

  • Page 18: Getting Started

    For further information about changing User and Password see section 10.3 – Change User & section 10.4 – Change Password. The PrimeTest 300 will now be ready to use in Manual mode. Refer to section 11 for more details. How to Navigate Menus Most of the functions within the PrimeTest 300 can be accessed from the menus.

  • Page 19: Battery Health Check

    Batteries must be re- charged. Connecting to Accessories Before using the PrimeTest 300 to perform tests it is necessary to ensure the unit is ready to work with the various accessories that the user has. Instructions for this can be found in section 12 - Bluetooth Functions.

  • Page 20: Data Transfer

    Data transfer is used to transfer records and configuration data to and from a PC. It is also used to load a logo in bitmap format for use with the Seaward Test ‘n’ Tag print system. The Data Transfer functions are accessed by pressing Menu (F4), selecting Data Transfer using the arrow keys and pressing OK (F4).
  • Page 21 PrimeTest 300 Operating Instructions favourite computer or RS-232. If using RS-232 make sure the PrimeTest 300 is connected to the correct serial port on your computer. Note: If there is no Favourite Computer configured then only the RS-232 option will be available as shown below.
  • Page 22 PrimeTest 300 Operating Instructions The PrimeTest 300 is now ready to transfer data. No. of assets shows the number of records that will be downloaded. Format shows the data format that will be used. Use the arrow keys to change to the correct format for your application.

  • Page 23: Upload From Pc

    (F4), select Data Transfer using the arrow keys, select Send/Receive Config Data and press OK (F4). The PrimeTest 300 will now attempt to connect to the Bluetooth Favourite PC. When a connection has been established the display will be as shown below.
  • Page 24 The baud rate will default to the correct value of 57600. The Send (F4) key will transfer the Site, Location, User and Comments list from the PrimeTest 300 to the PC as text which will appear in the DataTransfer.exe screen.

  • Page 25: Receive Config Data

    Open. The DataTransfer.exe application will now transfer the configuration file to the PrimeTest 300. When the transfer is complete the PrimeTest 300 screen will display a message as shown below. If the transfer is not successful, check that the format of the configuration file exactly matches that specified.

  • Page 26: Load Test'n'tag Logo

    [END] statement. Load Test’n’Tag Logo A bitmap logo can be transferred to the PrimeTest 300 for use with the Seaward Test ‘n’ Tag print system. The logo must be in .BMP with a maximum size of 320 pixels by 240 pixels.

  • Page 27: View Saved Data

    PrimeTest 300 Operating Instructions View Saved Data This function allows saved data to be reviewed and transferred to PC or Pass/Fail Label. From the main menu select View Saved Data and press OK (F4) to accept. The display will now show a list of previously saved results as shown below.

  • Page 28: Options

    PrimeTest 300 Operating Instructions Note: Filtered search can be used to selectively download or delete assets. Options The Options (F3) key allows operations to be performed on results returned from the Search function. This allows selected records to be transferred label, downloaded to PC or deleted from memory.

  • Page 29: Memory Options

    If the Erase (F4) key is pressed, a prompt is shown below. To erase the memory press Yes (F4). Note: The PrimeTest 300 has a total of 3Mbytes of memory for storing Test Results. This is typically enough for 8500 Assets.

  • Page 30: Configuration

    The configuration menu is located in the main menu list and presents the options shown below. Edit Test Sequences The PrimeTest 300 is supplied with 17 pre-configured test sequences covering a variety of type of electrical equipment. The test sequence editor can be used to modify test sequences or create new test sequences.

  • Page 31: Edit Sequence

    PrimeTest 300 Operating Instructions Note: The PrimeTest 300 can store a total of 50 sequences, some of these are the pre- configured ‘default’ test sequences. Press Menu (F4), select Edit Test Sequences and press OK (F4) to open the Edit Test Sequence window.

  • Page 32: Delete Sequence

    PrimeTest 300 Operating Instructions 9.1.3 Delete Sequence Sequences can be deleted if no longer required to make space for new sequences. A further prompt is presented to avoid accidental deletion. Note: If a sequence is accidentally deleted the factory Sequences can be restored by following the steps in section 9.5...
  • Page 33 Now scroll through the list of default tests until the required test is highlighted and press Select (F4). Note: A unique feature of the PrimeTest 300 is the ability to create User defined tests. For full details of this feature refer to section 9.1.5 If the selected test has user definable parameters the Edit New Test window will open e.g.

  • Page 34: User Tests

    Note: Tests are inserted into the sequence in the position above the highlight bar. 9.1.5 User Tests The PrimeTest 300 has the unique ability to create user-defined tests. When using the test sequence editor, these appear in the list of available tests as shown below.
  • Page 35 PrimeTest 300 Operating Instructions PATGuard software. To insert a User Test in a new sequence follow the step in section 9.1.4 to open the Inset a Test window and highlight User Test. Press Select (F4) to insert a User Test and display the Edit User Test screen shown below.
  • Page 36 PrimeTest 300 Operating Instructions An example test sequence created to measure microwave leakage is shown below. When this test sequence is run using the Automatic Test Mode described in section 13, the User Test will prompt for data input as shown below.

  • Page 37: Print Sequence

    PrimeTest 300 Operating Instructions The user is now required to enter a measurement and select a Pass or Fail for this measurement. The measurement and Pass or Fail information is now stored as part of the test record. 9.1.6 Print Sequence This feature allows test sequences to be sent to the Bluetooth Favourite printer.

  • Page 38: Set Date/Time

    PrimeTest 300 Operating Instructions Set Date/Time The Primetest 300 is equipped with a real-time clock. To alter the time or date press Menu (F4), select configuration, Set Time/Date and press OK (F4). Select the values to be changed using the arrow keys, enter the required value using the keypad and press OK (F4) to accept.

  • Page 39: User Options

    Operating Instructions User Options Each User has the option to customise aspects of the PrimeTest 300 in accordance with their needs or preferences. Changes to the set up of the unit will be stored against the name of the active User.

  • Page 40: Asset Id

    10.1.3 On Test Failure In the event of a test failure during an automatic sequence, the PrimeTest 300 can be configured to either End Test, which will terminate the test sequence or Fail Menu, which will present a list options.

  • Page 41: Earth Result

    PrimeTest 300 Operating Instructions New Test will auto save at the end of a test sequence and then open the Asset Details window ready for a new test. Download will auto save at the end of a test sequence and then open the Download to PC window. When the...

  • Page 42: Comments

    PrimeTest 300 Operating Instructions 10.1.6 Comments Press F3 to switch to the Comments screen. - can be set to open the comment window: always, if the result is a pass, if the result is a fail or never. 10.1.7 Comments Line...

  • Page 43: Preferences

    Use the left/right arrow keys to adjust. 10.2.3 Auto Off Time (mins) The PrimeTest 300 will power itself off after a period of inactivity. This time is set here. Use the left/right arrow keys to adjust the value between 1 minute and 10 minutes.

  • Page 44: Backlight Mode

    Keypad only. 10.2.5 Backlight Mode The backlight on the PrimeTest 300 can be set to either, never come on, stay on permanently or come on in Power Save mode. Power save mode ensures...
  • Page 45 PrimeTest 300 Operating Instructions The Change User option is used to change the active User. From the User Options menu, select Change User and press OK (F4). The screen will now be as shown below. Use the left/right arrow keys to change to an existing User Name or press New (F3) and type in a new name as shown below.
  • Page 46 PrimeTest 300 Operating Instructions Press OK (F4) to accept the new user name. This new user will have no password set as default. If a password is required see section 10.4 – Change Password. Press OK (F4) to finish. Note: If a User has been set up along with a...

  • Page 47: Change Password

    PrimeTest 300 Operating Instructions 10.4 Change Password Note: The default password for all Users is blank. First ensure that the required active User name has been selected as described in section 6.3. Press Menu (F4). Use the arrow keys to highlight and select User Options followed by Change Password.
  • Page 48 PrimeTest 300 Operating Instructions Use the arrow keys to move to the New Password field. Type the new password. Use the arrow keys to move to the Confirm New Password field. Enter the new password again. Press Enter (F4) followed by OK (F4) to finish.

  • Page 49: Manual Test Functions

    If an Earth Bond lead other than that supplied with the PrimeTest 300 is to be used for this test it’s resistance can be ‘nulled’ out by fitting the probe end into the EUT earth socket and pressing F2. The icon above will be displayed on the left side of the LCD to indicate this has taken place.

  • Page 50: Insulation Resistance

    PrimeTest 300 Operating Instructions Fit the Appliance mains plug into the EUT outlet. Connect the Earth Bond lead to the appliance metal part. Press the green START key to begin the test. The test will run for the duration set. To end the test before the test time expires press the red STOP key.

  • Page 51: Protective Earth (Pe) Conductor Current

    PrimeTest 300 Operating Instructions Press Class (F2) to set the class of the appliance under test. For a class II appliance the probe symbol will be displayed at the top of the LCD display. For both Class 1and Class II appliances fit the Appliance mains plug into the EUT outlet.

  • Page 52: Touch Current

    Press OK (F4) when complete. Esc (F2) will exit setup mode without saving changes. Fit the power lead supplied to the PrimeTest 300 and plug the other end into a suitable mains outlet. Fit the Appliance mains plug into the EUT outlet. Press the green START key to begin the test.
  • Page 53 Press OK (F2) when complete. Esc (F2) will exit setup mode without saving changes. Fit the power lead supplied to the PrimeTest 300 and plug the other end into a suitable mains outlet. Fit the Appliance mains plug into the EUT outlet. Connect the Earth Bond lead to the appliance metal part.

  • Page 54: Earth Loop Resistance

    The test duration for this test is fixed at approximately 10 seconds. Fit the power lead supplied to the PrimeTest 300 and plug the other end into the mains outlet under test. To start the test, press the green START button.

  • Page 55: Iec Lead

    PrimeTest 300 Operating Instructions Fit the power lead supplied to the PrimeTest 300 and plug the other end into the mains outlet under test. To start the test, press the green START button. The PrimeTest 300 will produce a test current of 30mA r.m.s in the protective earth of the supply.
  • Page 56 PrimeTest 300 Operating Instructions To start the IEC lead test, press the green START button. The earth continuity resistance for the lead is measured at ±200mA. The display indicates the highest resistance and the pass/fail status. If this resistance is less than the pass/fail limit, then the insulation resistance will be measured.

  • Page 57: Bluetooth Functions

    Bluetooth Favourites. 12.1 Bluetooth USB Adapter The PrimeTest 300 can be supplied with a Bluetooth USB Adapter. This device can be used to add Bluetooth connectivity to a PC or Laptop which is not already Bluetooth enabled. Full installation instructions are provided in the Bluetooth USB Adapter Setup guide.

  • Page 58: Bluetooth Favourites

    USB port until specifically requested to do so by the install program. 12.2 Bluetooth Favourites In order for the PrimeTest 300 to automatically connect to the correct Bluetooth accessory, details of that accessory must be entered into the Bluetooth Favourites list.
  • Page 59 Make sure that the device you want to add to your new favourites is switched on. Press Search (F1). The PrimeTest 300 will search for all discoverable Bluetooth devices within a 10m range. The time taken to perform the search will vary depending on the number of Bluetooth devices in range.
  • Page 60 PrimeTest 300 Operating Instructions In the example above, the search has identified Bluetooth devices named “GX30” and “My Laptop.” Note: If the required device is not shown, check that it is powered on with the Bluetooth function active then repeat the search.
  • Page 61 Del (F3). A PIN number can be entered if required by the device to be added to the Favourites list. Note: Seaward accessories do not require a PIN. For other Bluetooth devices refer to the manufacturers documentation. “My Laptop” has been added to the Computer field with Bluetooth ID.
  • Page 62 PrimeTest 300 Operating Instructions “My Laptop” is now a Bluetooth Favourite and the PrimeTest 300 will automatically establish a connection with “My Laptop” when using functions that communicate with a computer e.g. downloading records to PATGuard. Note: Press Esc (F2) to exit without saving changes.

  • Page 63: Bluetooth Connection To A Printer

    PrimeTest 300 Operating Instructions 12.3 Bluetooth Connection to a Printer The following shows how to add a Printer to Bluetooth Favourites. Use the up/down arrow keys to highlight the device type (in this case Printer) then press Setup (F3). - 63 -...
  • Page 64 PrimeTest 300 Operating Instructions If your printer is not already in the “New” list then you need to search for it now by pressing press Search (F1). Note: If the required device is not shown, check that it is powered on with the Bluetooth function active then repeat the search.

  • Page 65: Bluetooth Connection To A Pc

    PrimeTest 300 Operating Instructions 12.4 Bluetooth Connection to a PC When the PrimeTest 300 is required to download data to, or upload data from a PC it will automatically try to connect to the PC entered in the Bluetooth Favourites list (see 12.2 above). If the PC has been set up using the USB adapter supplied (see 12.1...

  • Page 66: Automatic Test Mode

    The Auto Mode is highlighted. Press OK (F4) or right arrow to open the Asset Details screen. 13.1 Entering an Asset ID If the PrimeTest 300 has been configured to accept data entry from a barcode scanner, the tester will now search for...
  • Page 67 Note: If the egg timer does not appear check that the PrimeTest 300 has been configured to accept data entry from a barcode scanner. Menu (F4), User Options, Preferences, Data Entry should be set to Barcode.

  • Page 68: Entering Site Information

    13.2 Entering Site Information Using the arrows, move the cursor to highlight the Site field as shown below. 13.2.1 Seaward Quick Text The PrimeTest 300 is equipped with Seaward Quick Text to greatly reduce the time taken to enter Site, - 68 -...

  • Page 69: Selecting A Site Using Quick Text

    PrimeTest 300 memory it will be displayed in a list of available Sites. The example below shows the display if the “N” key is pressed on a PrimeTest 300 that has been pre-configured with a list of Sites. - 69 -...
  • Page 70 PrimeTest 300 Operating Instructions The UP/DOWN can now be used to scroll through the Site list until the required Site is highlighted. Press Select (F4) to confirm selection - 70 -...
  • Page 71 PrimeTest 300 Operating Instructions Note: To see a list of all Sites currently stored in the PrimeTest 300 memory, simply press the left of right arrow key when the Site field is highlighted. Quick Text can then be used to find specific a...
  • Page 72 PrimeTest 300 Operating Instructions 13.1.2 Adding a new Site If the required Site is not already in memory, simply use the keypad to enter the new Site name. The Edit keys can be used to correct the entry. When the required data has been entered, press the Enter (F4) key to accept.

  • Page 73: Entering Location Information

    If the Location name is currently in memory it will be displayed in a list of available Locations. The example below shows the display if the “S” key is pressed on a PrimeTest 300 that has been pre-configured with a list of Locations. - 73 -...

  • Page 74: Adding A New Location

    Select the desired Location from the list using the UP/DOWN arrows and press Select (F4) to confirm. Note: Section 6.2.1 gives details on how to transfer Location lists from a PC to the PrimeTest 300 memory. 13.3.2 Adding a new Location...

  • Page 75: Selecting A Test Sequence

    Enter (F4) key to accept 13.4 Selecting a Test Sequence The test sequence is the set of tests that will be performed on the Asset. The PrimeTest 300 contains a number of pre-programmed sequences for a variety of electrical equipment.

  • Page 76: Frequency Of Inspection

    PrimeTest 300 Operating Instructions Pressing the Left or Right arrows will open the list of available test sequences Press the index letter next to the require test sequence name or use the UP/DOWN arrows to navigate through list. When the...

  • Page 77: Running The Test Sequence

    Now enter the required number of months and press Enter (F4) to accept. The Asset Details are now complete and the PrimeTest 300 is ready to perform the test. 13.6 Running the test sequence When the required Asset ID, Site, Location and Test Period details have been entered, press the OK (F4) key to initiate the test sequence.
  • Page 78 PrimeTest 300 Operating Instructions If the red STOP key is pressed during a test then the test is aborted and the abort menu appears as shown below: Restart Test will return to the beginning of the test that was aborted.
  • Page 79 PrimeTest 300 Operating Instructions The sequence will now progress to the Earth Continuity test as shown. This test will measure the resistance of the protective earth path. The START key icon is flashing, indicating that a key press is required to initiate the test. The probe icon is illuminated to indicate that the test probe is required for this test.
  • Page 80 At the end of the test duration, the PrimeTest 300 will compare the last reading with the Limit to determine the outcome of the test. If the last reading is lower than the Limit, a Pass result is recorded.
  • Page 81 PrimeTest 300 Operating Instructions If the Earth Continuity test results in a Fail and the On Test Failure is set to End Test the sequence is terminated. Note: On Test Failure is set in User Options – Test Options – On Test Failure.
  • Page 82 PrimeTest 300 Operating Instructions Note: In order to perform an Insulation Resistance measurement correctly, mains switch must be in the ON position. If the EUT mains switch is OFF, only the insulation of the power cord will be tested, as the test voltage cannot be applied beyond the mains switch.
  • Page 83 Note: Mains power is applied to the EUT for this test and hence the mains must be connected to the PrimeTest 300. The PrimeTest 300 will check for the presence of correct supply before starting a powered test. If there supply is not present the message shown below is displayed.
  • Page 84 PrimeTest 300 Operating Instructions The sequence will now progress to the Protective Conductor Current measurement. The display now shows the supply voltage and frequency measured prior to starting the test. The measured protective conductor current is shown in real time on both the digital display and the analogue bargraph.

  • Page 85: Options

    PrimeTest 300 Operating Instructions The Test Type field indicates whether the sequence was a visual inspection only or measured values were recorded during the test sequence. Test sequences that do not involve the recording of measured values have the Test Type is set to Visual.

  • Page 86: View Results

    13.7.2 Information This will display the asset description and comment as shown below. Note: Asset Description is entered using the Upload facility on Seaward PATGuard Plus - 86 -...

  • Page 87: Print Label

    Note: To print results the printer must be fitted with a paper roll. 13.7.5 Write RFID Tag This is used to write test records to Seaward RFID brain cells. Refer to Seaward Braincell wand operating instructions for details on how to use this feature.

  • Page 88: Printer Driver Specifications

    PrimeTest 300 Operating Instructions Printer Driver Specifications 14.1.1 Test n Tag Elite Note: The maximum number of characters that can be displayed on the Test n Tag Elite barcode is 11. If this limit is exceeded, the barcode will not appear on the display and will not be printed on the label.
  • Page 89 PrimeTest 300 Operating Instructions Note: In order to avoid damage to the print head, only genuine Seaward Test ‘n’ Tag Elite labels should be used. Use of incorrect labels will damage the print head and invalidate the printer warranty. A different logo can be specified for assets that have failed the safety tests.

  • Page 90: Citizen Cmp-10Bt

    PrimeTest 300 Operating Instructions 14.1.2 Citizen CMP-10BT Note: The maximum number of characters that can be displayed on a CMP-10 barcode is 12. If this limit is exceeded, the barcode will not appear on the display and will not be printed on the label.

  • Page 91: Test N Tag

    14.1.3 Test n Tag This allows Test ‘n’ Tag labels to be produced using the Seaward Test ‘n’ Tag thermal transfer print system. When selected, the image that will be transferred to the Test ‘n’ Tag label will be shown on the display.
  • Page 92 PrimeTest 300 Operating Instructions The text in the banner line can be edited to show up to 29 chosen characters. The default Pre Feed and Post Feed values are 0.25” and 1.50” respectively. You can change these values as necessary, or simply use the “Label Size” field to select “Cable Wrap / Panel”...

  • Page 93: Generic Ascii

    Bluetooth Favourites to set up a Generic ASCII Printer which has the Bluetooth address of your PC. Then when you print, the PrimeTest 300 will connect to your PC and the print data can be captured using DataTransfer.exe or HyperTerminal.

  • Page 94: Electrical Specifications

    PrimeTest 300 Operating Instructions Electrical Specifications 15.1 Earth Continuity Test Current (2Ω load) ±200 mA Test Circuit Voltage ± 4V min Test Duration 2, 5, 10, 20, 30 seconds Pass/Fail Limit User Defined Display Range 0.00 – 19.99Ω Measuring Range 0.01 –...

  • Page 95: Touch Current

    PrimeTest 300 Operating Instructions this may reduce the life of the unit. 15.4 Touch Current Test Voltage Mains supply 230V +10% / -15% Max Load Current Input Impedance 2KΩ As per IEC 61010-1 A.1 Test Duration 2, 5, 10, 20, 30 seconds...

  • Page 96: Iec Lead Test

    PrimeTest 300 Operating Instructions Test Current 30mA rms sinusoidal Test Duration 2000ms max Pass/Fail Limit None Display Range 0 – 2000ms Measuring Range 20 – 2000ms Resolution Accuracy ± 10% 15.8 IEC Lead Test This is a 3 part test is made up of: Earth Continuity –...

  • Page 97: Environmental Conditions

    IEC 61326-1. 16.7 Operating temperature range of 0°C to 40°C, without moisture condensation. 16.8 The PrimeTest 300 can be stored at any temperature in the range -25°C to +65°C (relative humidity up to 90%). The batteries should be taken out of the instrument for storage.

  • Page 98: Maintenance

    300 is disconnected from all voltage sources before maintenance work is carried out. 17.1 Preparing to work on the PrimeTest 300. Make the PrimeTest 300 voltage free as follows, before opening the instrument; Power the unit off using the red OFF button, ref fig. 1...

  • Page 99: Cleaning

    PrimeTest 300 Operating Instructions 17.3 Cleaning Clean the external case of the PrimeTest 300 with a clean dry cloth. Avoid using solvents and abrasive scouring agents to clean the external case of the PrimeTest 300. Check the battery contacts and compartment are free of electrolytic contamination.

  • Page 100: Replacing All Fuses

    PrimeTest 300 Operating Instructions Alkaline) into the supplied charger – charging time is around 8 hours. Insert the newly charged set of batteries into the battery compartment ensuring that the battery polarity matches the marking on the inside of the battery compartment.
  • Page 101 2 (8). Disconnect the EUT mains cable, from the EUT socket, ref fig. 1 (6). Position the PrimeTest 300 face down and release the captive screw in the battery compartment cover. Remove the battery compartment cover. Lift one end of the fuse out of the fuse holder with the help of a flat bladed screwdriver.

  • Page 102: Service And Calibration

    Seaward Service Agent. We recommend a recalibration period of one year. If a period of greater than 1 year has elapsed since the last calibration/validation a warning message will appear on the display every time the unit is powered up.

  • Page 103: Spare Parts

    PrimeTest 300 Operating Instructions Spare Parts. Seaward Part No Fuse 1¼ “ x ¼ “ 12.5A 250V Type T 27B111 Test Lead right-angle heavy duty 44B154 Carry Case 71G082 For Technical Support contact: Tel: (+44) 191 587 8718 For help or advice on Service and Calibration contact:...

  • Page 104: Useful Information

    PrimeTest 300 Operating Instructions Useful Information Parameter Default Earth Continuity P/F limit 0.10 0.01 Earth Continuity Duration Insulation Resistance P/F 0.01 limit Insulation Resistance Duration IEC Cord Earth Continuity 0.10 0.01 P/F limit IEC Cord Insulation P/F limit Touch Current P/F limit 0.25...
