Seaward PrimeTest 300 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Seaward Manuals
  4. Test Equipment
  5. PrimeTest 300
  6. Operating instructions manual

Seaward PrimeTest 300 Operating Instructions Manual

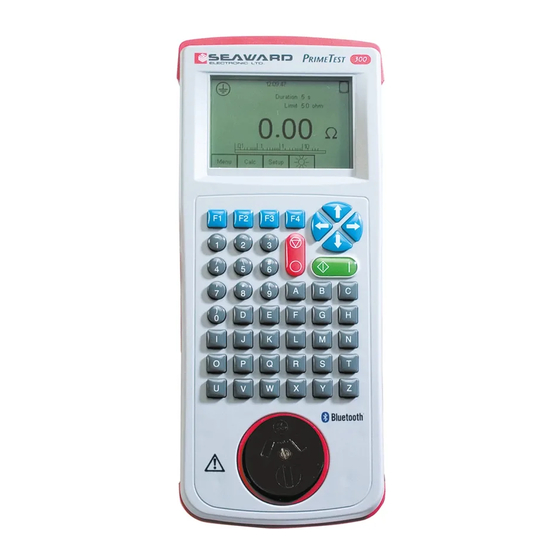

Portable appliance tester
Hide thumbs Also See for PrimeTest 300:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual

Operating Instructions

Bracken Hill
South West Industrial Estate
Peterlee
Co Durham
SR8 2SW
ENGLAND
Tel: +44(0)191 5863511
www.seaward.co.uk
sales@seaward.co.uk
service@seaward.co.uk

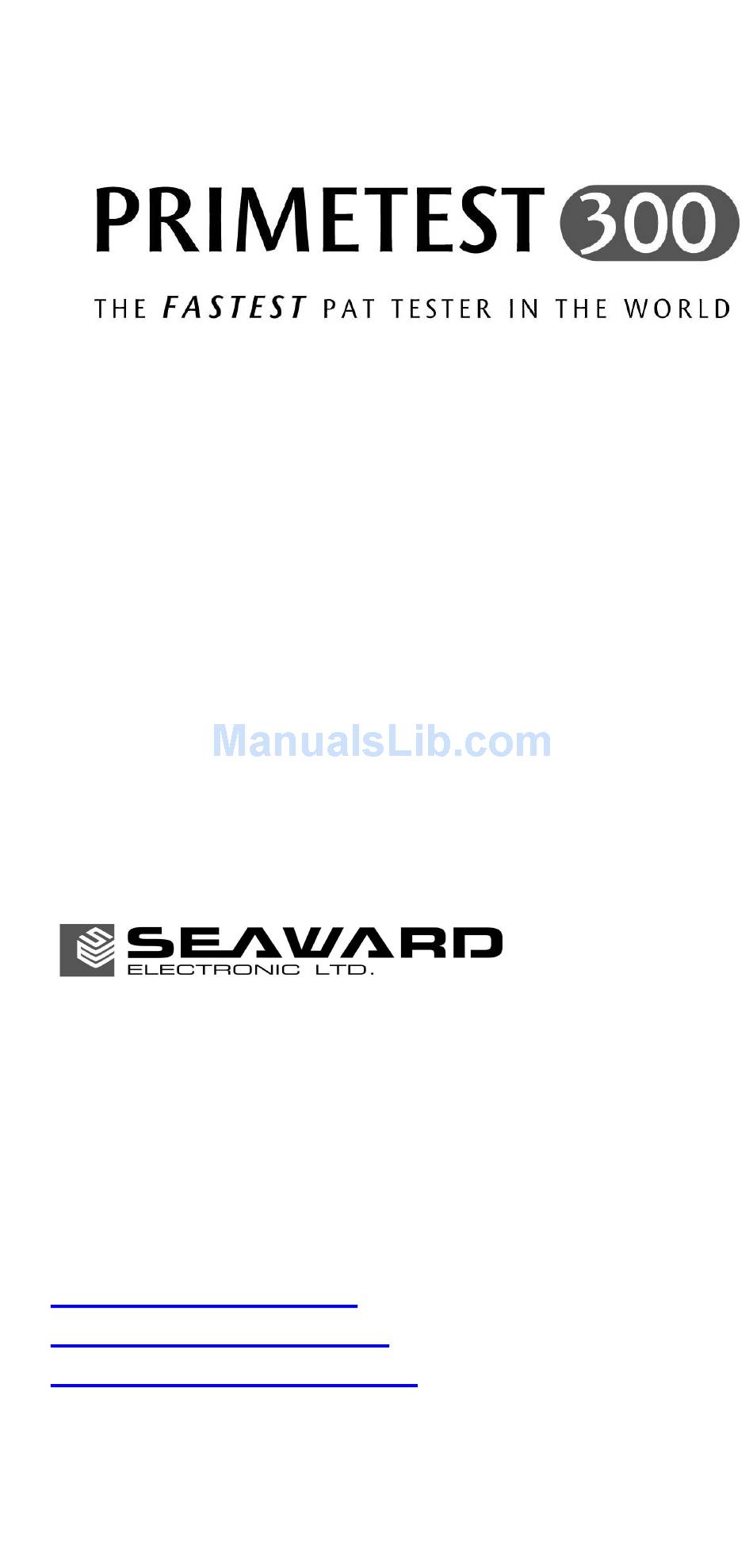

Part Number 305A563 Revision 3
December 2007
© 2007 Seaward Electronic Ltd
