D-Link DG-102S Quick Install Manual page 3

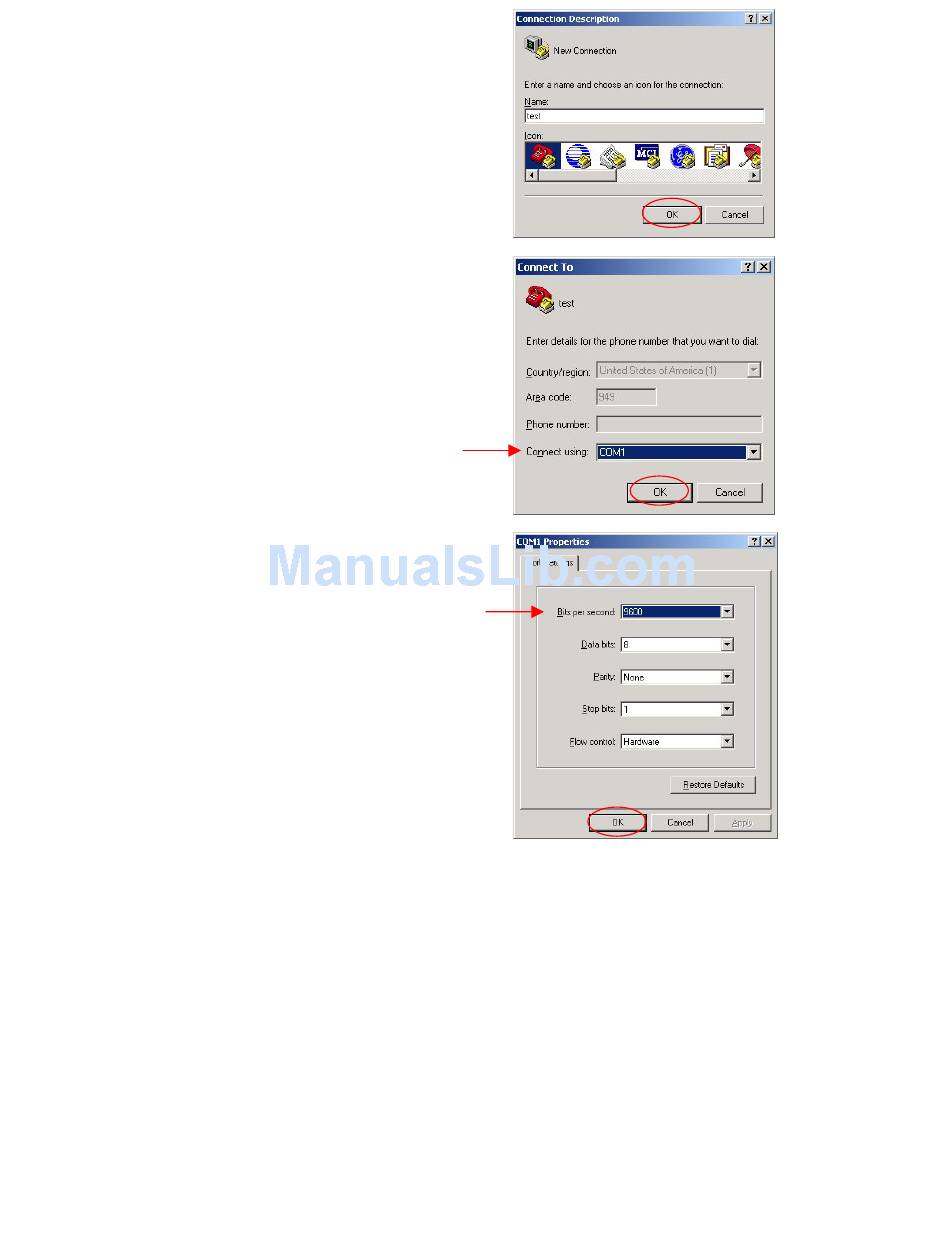

When the Connection Description screen
appears, it will prompt for a "Name" for the
New Connection. Enter any name you desire.
Click "OK"
The next screen will ask how to connect. In
the "Connect using" option, choose the COM
port that is in use by the serial port which the
RS-232 console cable is connected to.
Click "OK"
The COM port properties screen will then
appear. Select 9600 as the "Bits per second:"
Bits per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: Hardware
Click "OK"
There should now be an empty white HyperTerminal screen on your computer screen.
