QUICK START GUIDE
»
iAV2
1 Clock Setting Button
Press and hold for 2 seconds
until clock starts flashing to
start clock setting. Adjust with
+/– Buttons. Press again to
complete clock setting.
NOTE: Alexa cannot set clock
2/3 +/– Setting Buttons
Press and release to adjust
clock during setting (hold for
rapid adjust)
4 Dimmer Button
Press and release to adjust
display brightness from high
5 Backup Battery Compart-
ment
Unscrew door with Phillips
screwdriver. Insert 1 CR2450
battery as shown to maintain
clock setting during power
interruption.
6/7 AC adapter/DC Jack
Connect the included AC
adapter to the DC jack located
on the back of the unit and
connect the other end to a
working wall outlet.
8 USB Charge Device Port
Connect a standard USB cable
(not included) to charge
mobile devices.
»
TIP: Press the + and – Buttons on iAV2 together during clock setting to switch
display from standard 12 hour to 24 hour display.
»
USB cable
»
Universal voltage adapter
Amazon Echo Dot Dock
T R E S E T
E
T T E S T
9
Dot USB Charge Port
10 Hardwired Aux cable
TOP
BACK
S
E
R
S
E
T
6

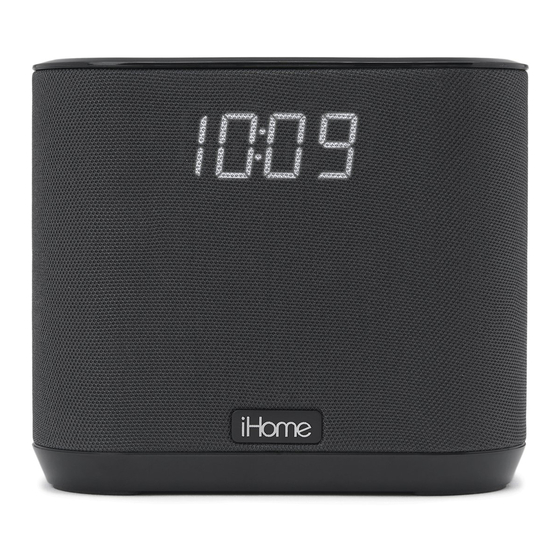

Bedside Speaker System
for Amazon Echo Dot
Model: iAV2
BOTTOM
NOTE: Remove Battery
pull tab before use
1
2
3
iAV2
Made for the Amazon Dot (2nd Gen)
Clock Backup:
DC
AC Adaptor:
DC
5
Service Number:
iAV2-A-A
Designed and Engineered in the USA
Manufactured & Serviced by SDI Technologies Inc.
Made in China
Patents: www.ihome.com/patents
www.ihome.com Toll Free: 1-800-288-2792
7
9
10
8
DC
12V, 1.5A
4
3V, CR2450 x 1
7.5V, 2A
Advertisement
Table of Contents
Related Manuals for iHome iAV2
Summary of Contents for iHome iAV2
- Page 1 Connect a standard USB cable 10 Hardwired Aux cable (not included) to charge mobile devices. » TIP: Press the + and – Buttons on iAV2 together during clock setting to switch display from standard 12 hour to 24 hour display.
- Page 2 FCC Information Model: iAV2 FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 12V, 1.5A » Align the rear of the Echo Dot (the side with the USB port and Aux Jack) with the opening in the iAV2 dock well and place with the ports facing the back. Powering Amazon Echo Dot BACK 12V, 1.5A...
- Page 4 NOTE: Backup battery only maintains clock settings during a power interruption. Unit does NOT operate on battery. Contact Us: 1• 800• 288 •2792 Amazon, Alexa, Echo Dot and all related logos are trademarks of For full warranty and full instructions visit: www.ihome.com/support...
