QUICK START GUIDE
»
iAV2v2
1 Clock Setting Button
Press and hold for 2 seconds
until clock starts flashing
to start clock setting. Adjust
with +/– Buttons. Press again
to complete clock setting.
NOTE: Alexa cannot set clock
2/3 +/– Setting Buttons
Press and release to adjust
clock during setting
(hold for rapid adjust)
4 Dimmer Button
Press and release to adjust
display brightness from high
to off.
5 Backup Battery Compartment
Unscrew door with Phillips
screwdriver. Insert 1 CR2450
battery as shown to maintain
clock setting during power
interruption.
6/7 AC adapter/DC Jack
Connect the included
AC adapter to the DC jack
located on the back of the
unit and connect the other
end to a working wall outlet.
8/10 USB Charging Ports
Connect a standard USB
cable (not included) to
charge mobile devices.
»
TIP: Press the + and – Buttons on iAV2v2 together during clock setting to switch
display from standard 12 hour to 24 hour display.
»
USB cable
»
Universal voltage adapter
Amazon Echo Device Dock
RESET
TEST
6
9 Hardwired AUX cable

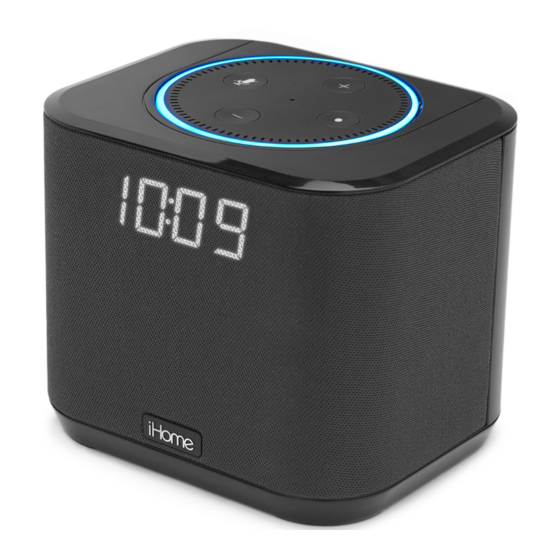

Bedside Speaker System
for Amazon Echo Devices
»
Docking adapter
TOP
10
8
9
DC 12V, 1.5A
7
Model: iAV2v2
BOTTOM
1
2
4
3
iAV2v2
Made for the Amazon Dot (2nd Gen)
Clock Backup:
DC
3V, CR2450 x 1
AC Adaptor:
DC
12V, 1.5A
Service Number:
iAV2v2-A-A
Designed and Engineered in the USA
Manufactured & Serviced by SDI Technologies Inc.
Made in China
Patents: www.ihome.com/patents
www.ihome.com Toll Free: 1-800-288-2792
5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iHome iAV2v2
Summary of Contents for iHome iAV2v2
- Page 1 8/10 USB Charging Ports Connect a standard USB cable (not included) to charge mobile devices. » TIP: Press the + and – Buttons on iAV2v2 together during clock setting to switch display from standard 12 hour to 24 hour display.
- Page 2 » Remove the included Echo Input adapter. Align the rear of the Echo Dot (the side with the USB port and Aux Jack) with the opening in the iAV2v2 dock well and place with the ports facing the back. Docking Your Amazon Echo Input...
- Page 3 DC 12V, 1.5A » Connect the built-in Aux-in cable on the back of the iAV2v2 to the Aux jack of your Echo device. » You can now ask Alexa to access all the functions of your Echo device and hear the audio through the iAV2v2.
- Page 4 FCC Information Model: iAV2v2 FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read and follow all safety and operating instructions carefully before installa- tion and use, and keep these instructions handy for future reference. - Page 6 For warranty and full instructions visit: www.ihome.com/support © 2018 SDI Technologies, Inc. All rights reserved. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free iAV2v2-180719-A Printed in China...
