iKN100 IB (English)
Size: 130 x 102 mm
Color: 1C + 1C (Black text on white paper)
20 pages,100gsm2 WF PAPER
Date: July 27, 2015
Model: iKN100
K3
portable stereo speaker system
with speakerphone and removable power
Questions?
Contact Customer Service at 1-800-288-2792
請留意排版
CHARGE
BEFORE
USE
instruction manual
P1
Advertisement
Table of Contents
Related Manuals for iHome Kineta K3
Summary of Contents for iHome Kineta K3

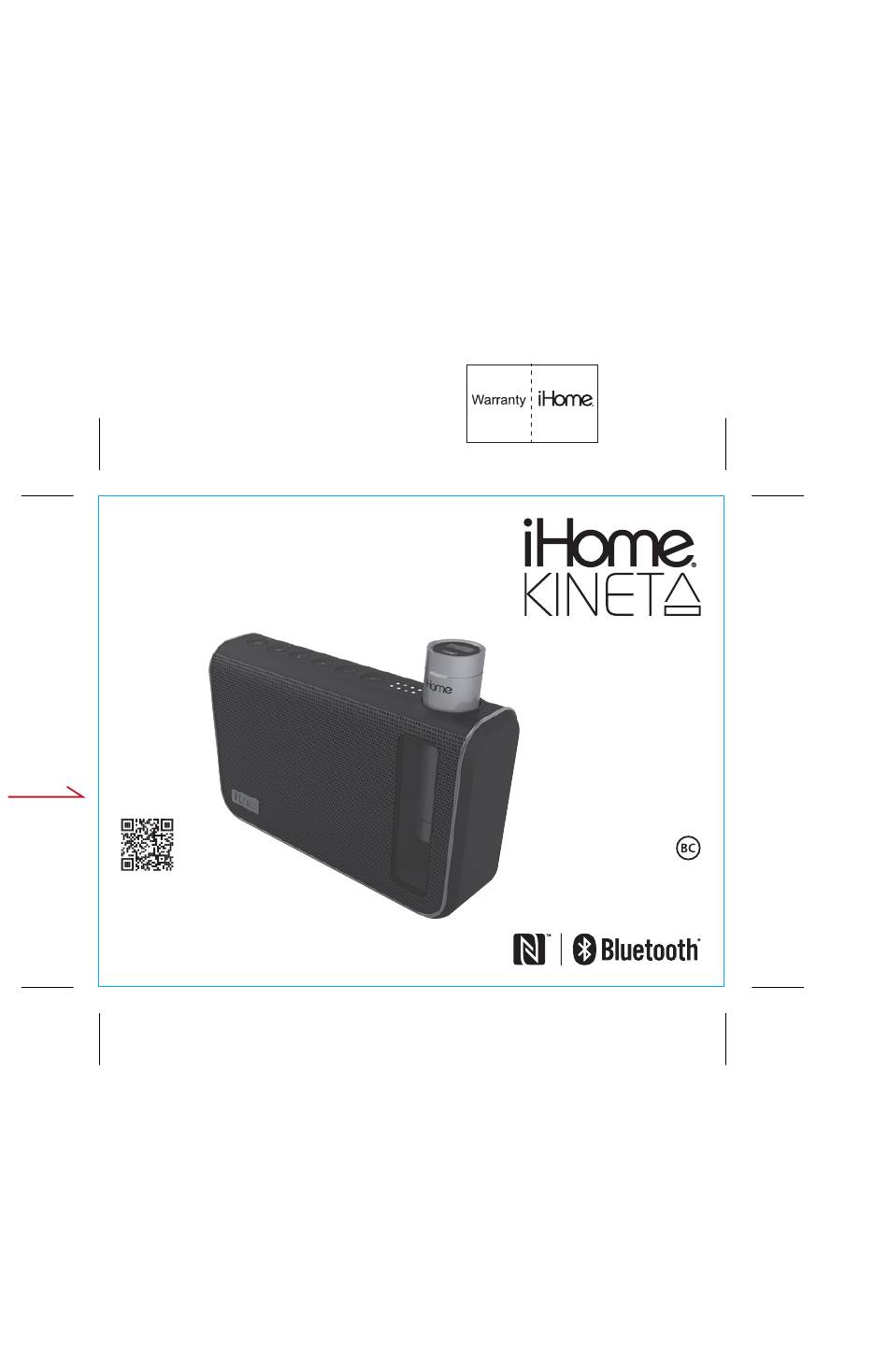

- Page 1 請留意排版 iKN100 IB (English) Size: 130 x 102 mm Color: 1C + 1C (Black text on white paper) 20 pages,100gsm2 WF PAPER Date: July 27, 2015 Model: iKN100 portable stereo speaker system with speakerphone and removable power CHARGE BEFORE instruction manual Questions? Contact Customer Service at 1-800-288-2792...
- Page 2 Introduction Thank you for purchasing the iHome Kineta K3. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, tablet or other Bluetooth audio device and mobile charging on the go with the included removable K-Cell rechargeable battery.
- Page 3 Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
-
Page 4: Table Of Contents
Table of Contents Included / Meet Your K3 ....................4-5 Getting Started: Charging the Unit and K-Cell via AC Adaptor ..........6 Battery Level Meters ......................7 Charging the K-Cell via USB....................8 Charging Devices Using the K-Cell ..................9 Using Bluetooth: Pairing Your Device Using NFC ..............10 Using Bluetooth: Pairing Your Device Manually..............11 Pairing with a Different Device / Playing Audio Via Bluetooth ..........12 Speakerphone Operation ....................13... - Page 5 Included • K3 system • K-Cell • AC adaptor • USB charging cable K3 system K-Cell USB cable AC adaptor...
-
Page 6: Included / Meet Your K3
Meet Your K3 Bluetooth Talk/End Pairing External Battery Power Button Button Button Play/Pause Button K-Cell level meter Mode Status indicators: Power Bluetooth Speakerphone Microphone Volume Down Volume Up Internal Battery level meter Button Button Left Side Back Panel Aux-in Jack Reset Port DC Jack K-Cell Eject... -
Page 7: Getting Started: Charging The Unit And K-Cell Via Ac Adaptor
Charge unit fully with K-Cell inserted before use. For first time charge, charge for at least 3 hours. Use iHome K-Cell battery ONLY. Do NOT attempt to use with/insert other USB battery cells. Pull back the jack cover on the left of the unit to access jacks. -
Page 8: Battery Level Meters
Using the Battery Level Meters The unit has one battery level meter on top of the unit for the internal battery and one for the removable K-Cell external battery. The table below shows the charge status indicated by each meter when unit is connected to AC power. -
Page 9: Charging The K-Cell Via Usb
Using the Charging the K-Cell via USB Charge K-Cell fully before use. For first time charge, charge for at least 3 hours. Connect the included micro USB cable to the micro USB Charging Port on the top of the K-Cell and connect the other standard USB plug to a computer, USB AC adaptor (not included) or other USB power source. -
Page 10: Charging Devices Using The K-Cell
Using the Charging Devices Using the K-Cell Charge K-Cell fully before use. For first time charge, charge for at least 3 hours. Connect the USB cable plug included with your device to the standard Charging Port on the top of the K-Cell and connect the other end to the device you wish to charge. -
Page 11: Using Bluetooth: Pairing Your Device Using Nfc
Bluetooth status indicator will flash blue quickly while the unit attempts to pair. 4. “iHome Kineta K3” should appear on your device’s menu. If your device asks if you wish to pair, accept (select “Yes” or similar). Once paired with a device, the Bluetooth status indicator will glow solid blue, confirmation tones will sound and your music will play through the unit. -
Page 12: Using Bluetooth: Pairing Your Device Manually
Bluetooth status indicator will flash blue quickly, indicating the unit is in pairing mode. 4. “iHome Kineta K3” should appear in your device’s Bluetooth menu. If “Not Paired”, “Not Connected” or similar message appears, select “iHome Kineta K3” to connect it. If prompted for a passcode, enter “1234”... -
Page 13: Pairing With A Different Device / Playing Audio Via Bluetooth
Using the Pairing with a Different Device When you power ON the speaker, it will automatically link with the most recently connected Bluetooth device as long as that device is still within range (approx. 30 feet). To pair with a different device follow steps 1 - 4 under ”Pairing Your Device”... -
Page 14: Speakerphone Operation
Using the Speakerphone Operation NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call. When a call is received, playing music is muted to hear the ring tone. The Speakerphone status indicator Talk/End Button will flash green. above the 1. -
Page 15: Playing Audio Via Aux In
Using the Playing Audio via Aux In 1. Connect one end of a 3.5mm stereo audio cable (not included) to the Aux-in jack on the left side of the unit and connect the other end to the headphone or line-out jack on your audio device. DC 10V 2.5A Power Button on the unit to turn it on. -
Page 16: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 17 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free...
-
Page 18: Fcc Information
FCC Information FCC ID: EMOIKN100 FCC Radiation Exposure Statement IC : 986B-IKN100 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Troubleshooting
(approx.30 feet). To pair with a different device you must turn off Bluetooth capability on the already paired device, or take it out of range. For further information and to see the latest instructions, visit www.ihome.com/support... -
Page 20: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
