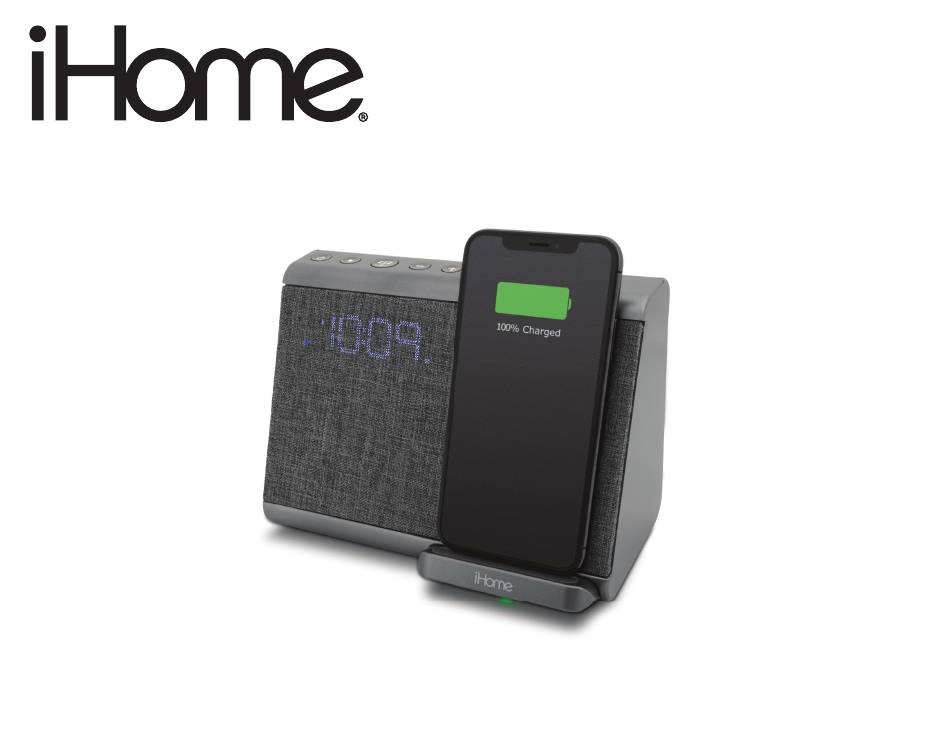

- Page 1 Model: iBTW39v2 Bluetooth Bedside/Home Office Speaker System with Qi Wireless Charging instruction manual Questions? Contact Customer Service at 1-800-288-2792...
-
Page 2: What's Included
What’s iBTW39v2 AC adapter Included: Meet Your iBTW39v2 Snooze/Display Play/Pause/Voice Control Button +/– Settings/Volume Buttons Power Button Speaker Wireless Charging Pad (under fabric) Microphone Device Charging Rest Back Wireless Charging Indicator (below charging rest) Bottom Charging Port Battery (1A) Door... -
Page 3: Quick Setup
• Select ‘iHome iBT39v2’ on your device’s Bluetooth menu to connect! Step Three Setting Your Clock • Press and hold the Time Set Button until the display flashes. -
Page 4: Charging Devices Via Usb Port
Automatic DST This product can automatically change your clock in March and November for daylight savings time! To enable, hold the Time Set Button for a full 5 seconds. Press the +/- buttons to select DST ON/OFF. The Display Time Display Alarm 1 Active Indicator PM Time Indicator Low Backup Battery Indicator... -
Page 5: Setting The Clock
Setting the Clock Press and hold the Time Set Button located on the back of the unit for 2 seconds until the clock display flashes and a beep sounds. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). Make sure you set the correct AM/PM time. -
Page 6: Previewing The Alarm And Turning The Alarm On/Off
You will wake to the currently linked Bluetooth device. If no device Wake to Bluetooth: is detected, the alarm will default to current Tone. Wake to Tone: Press the Alarm Button to confirm. Press the – or + Buttons as needed to listen to and to select one of the four built-in wake-to tones (t1 - t4). - Page 7 This unit will wirelessly charge Qi compatible wireless charging phones. Place Qi compatible device face up on charging rest. Check the Wireless Charging Indicator on the iBTW39v2 for charging status: LED glows solid amber for 10 seconds: Device is charging properly. Solid green LED: Device is charged.
-
Page 8: Pairing Your Bluetooth Device
If no device is successfully paired within 3 minutes the iBTW39v2 will default to previous mode. Once the iBTW39v2 is paired to a device, it will attempt to autolink when the device is within range (about 33 feet). To reset Bluetooth, press and hold the Bluetooth Button for 10 seconds. -
Page 9: Playing Audio Via Bluetooth
Playing Audio Via Bluetooth “bt” and the Bluetooth indicator appear on the display when the unit is on and your device is connected. Press the Button on the unit to play or pause audio from your linked Bluetooth device. 2. Press the – or + Buttons to adjust the volume on the unit. 3. -
Page 10: Replacing And Installing Clock Backup Battery
Replacing and Installing Clock Backup Battery The unit comes with 1 CR2450 back-up battery installed to provide continuous alarm operation and clock settings in the event of a power failure. Remove the battery pull tab before use. When the Battery Low Red LED located in the middle of the display is flashing, it is time to replace the back-up battery. -
Page 11: Troubleshooting
Unit doesn’t respond (no sound) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBTW39v2. • Make sure the Power is ON. • Make sure unit is not connected to an outlet controlled by a switch. - Page 12 IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read and follow all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference.
- Page 13 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user manual. Service methods not covered in the operating instructions should be referred to qualified service personnel. 14. Magnetic Interference: This product’s speakers contain powerful magnets which could cause interference or damage to sensitive equipment such as hard drives, CRT televisions and monitors, as well as medical, scientific, and navigational devices.
-
Page 14: Fcc Information
FCC Information FCC Radiation Exposure Statement FCC ID: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Limited One Year Warranty
Limited One Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
