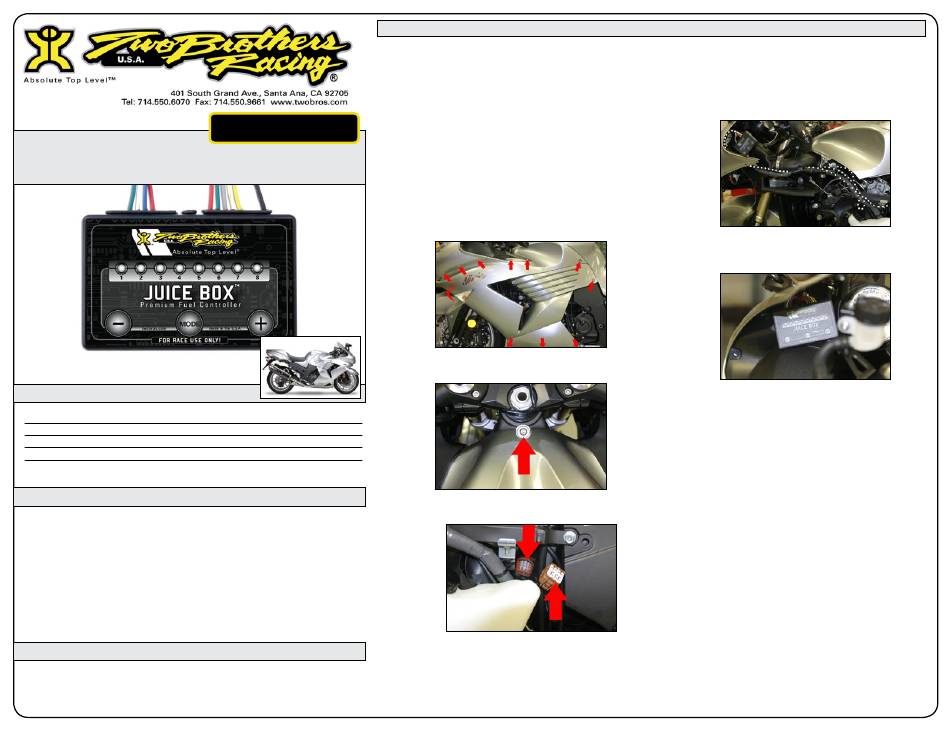

Two Brothers Racing Juice Box 008-149 Installation & Operation Manual

Two Brothers Racing
Juice Box™ - Fuel Controller
2006-08 Kawasaki ZX-14R Installation & Operation Manual
Part # 008-149
Parts Incuded
Qty. Description
1 Juice Box™ Fuel Control Kit
3 Zip T ies
1 Adhesive Velcro Square
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified motorcycle
technician. If you have any doubts as to your ability to install this performance part,
please consult with your local motorcycle dealer. Read all instructions first before
starting installation. Make sure the vehicle and exhaust system are completely cool
before starting the installation. Also, make sure the vehicle is secure during installation.
Be sure to save all stock components for possible use later.
The Juice Box™ is legal ONLY for closed course race vehicles. The Juice Box™ is not
applicable, nor inteded for use on EMISSIONS CONTROLLED street, highway or off-road
vehicles. The Juice Box™ is not applicable, nor inteded for use on aircraft.

Warranty

two brothers racing warrants that this product carries a warranty for 2 years from date of purchase against original
defects in materials and workmanship. should this product fail to perform for either of the above reasons, two brothers
racing will repair or replace it with an equivalent product at no charge, except for postage, to the original retail purchaser.
to obtain the benefits of this warranty, the retail purchaser must return the product and proof of purchase to the place of
original purchase.
V.A.L.E.
TM
1.
V a r i a b l e a x i s l o c k i n g e x h a u s t
2.
3.
Part Number
008-149 (#9140059)
4.

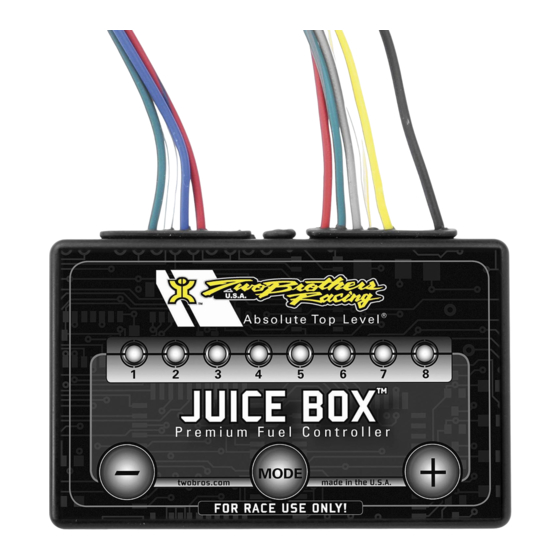

Thank you for purchasing a genuine T wo Brothers Racing
JUICE BOX™. T his product represents a radical step
forward in tuning fuel-injected motorcycles and ATVs for
optimal performance using "load-based" technology.
We at T wo Brothers Racing hope that you will find this
development as exciting and useful as we do. And
remember: Proper Fuel = Maximum Power!
Make sure the vehicle is completely cool before starting
the installation. Also, make sure the vehicle is secure and
will not roll around.
Remove the eleven bolts that secure the left side panels.
Remove the two plastic pop-rivets, one inside the front
left panel near the front wheel and above the left front
turn signal and one where the right and left lower panels
join behind the front wheel. Gently pull the left side
panels off. (Fig 1)
Fig 1
Remove the bolt that secures the tank plastic to the frame
near the steering stem. (Fig 2)
Fig 2
Locate the brown 16 pin block connector directly behind
the throttle bodies, under the tank and disconnect. (Fig 3)
Fig 3

Installation Instructions

5. Connect the JUICE BOX™ connectors to these
connectors. Route the JUICE BOX™ harness along the
main stock harness and up to the front of the bike. Attach
the ground lead (black wire) to the silver bracket with bolt
that attaches to the frame near where the ram air tube
enters the air box. (Fig 4)
Fig 4
6. Attach the adhesive backed hook and loop material to the
back of the JUICE BOX™ and the black left side trim panel
just left of the instrument cluster. (Fig 5)
Fig 5
7. Start the bike. T he green LED should scroll left to right and
back for about 3-5 seconds and then go to 1-2 steady or
slowly flashing green LED's. If the number 1 green LED
and number 8 red LED's continue flashing after startup
or idling, an injector wiring error is indicated. Re-check
the wires from the JUICE BOX™ and make sure they are
connected to the proper wire of your bike's stock harness.
MAKE SURE you have the correct wires selected in
the stock harness. DO NOT PROCEED UNLESS ABOVE
CONDITIONS ARE MET.
8. Bike reassembly is opposite of disassembly.
9. NOTE: Re check your wire routing and JUICE BOX™
location and make certain that in no way the wires can
come into contact with any moving parts or high heat
source and that the JUICE BOX™ is mounted in a way as
to not cause a handling problem with the machine.
Continued on page 2
