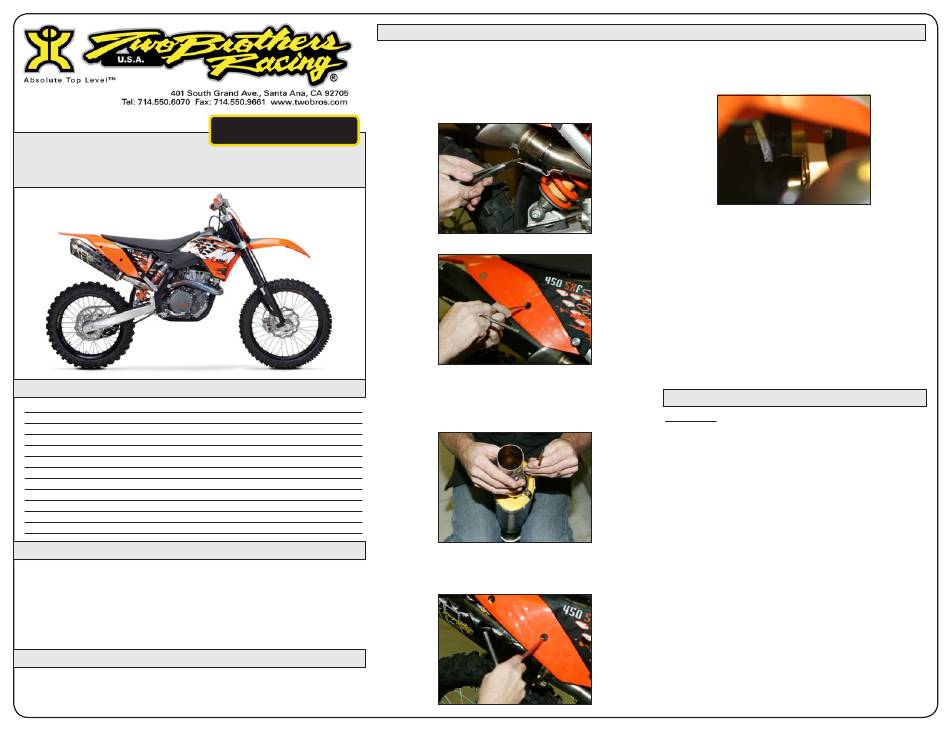

Two Brothers Racing 005-1840406V Installation Instructions

KTM
450 SX-F /
2007-08 2009
V.A.L.E.™ Slip-on Exhaust System with M-7 Canister
Part # 005-1840406V / 005-1840407V
Parts List
Qty. Description
1 Muffler Canister
1 S-bend Tube with V.A.L.E. Assembly
1 HARDWARE KIT
2 X-Ring (half)
4 6x14mm Socket Head Cap Screws
4 6mm Split Lock Washer
1 8mm Spacer
1 6x35mm Socke Head Cap Screw
1 5mm Long Handle Ball End Hex Key
1 T20 T orx Screw Hex Key
1 TBR Sticker Kit
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified
motorcycle technician. If you have any doubts as to your ability to install this
performance part, please consult with your local motorcycle dealer. Read
all instructions first before starting installation. Make sure the vehicle and
exhaust system are completely cool before starting the installation. Also,
make sure the vehicle is secure on a centerstand or ideally a service lift during
installation. Be sure to save all stock components for possible use later.
Warranty
two brothers racing products are intended for closed course competition purposes only, and therefore are sold "as is"
without warranty. two brothers racing specifically disclaims any warranties of merchantability or fitness for a particular
purpose and disclaims all responsibility for consequential and incidental damages or any other losses arising from the use
of these products or parts.
1.
2.
V.A.L.E.
TM
V a r i a b l e a x i s l o c k i n g e x h a u s t
250 SX-F
3.
4.
Part Number
Varies
005-18401S
005-184-3
005-7-2-3
005-SH614
005-WL6
005-S-8
005-SH635
005-9-18610
005-9-15820
015-10212
5.
Make sure the bike is completely cool before starting
the installation. Make sure the bike is secure on the
sidestand or ideally a rear service stand.
Remove spring from mufler joint.
Remove muffler by removing the two mounting bolts.
Attach T BR slip-on to muffler using the 4 6x14mm
S.H.C.S. and lock-washers provided. Leave loose for now.
*You may need to adjust slip tube by rotating it until it
fits in without any tension.
If everything is aligned correctly tighten the 4 6x14mm
S.H.C.S. joining tube to muffler. Double check the
muffler mount bolts.
Installation Instructions
*If Installing on a 250 SX-F, use the supplied 8mm
spacer on the rear mounting hole and the supplied
longer 6x35mm bolt provided.
6. Before you run the bike, clean off all fingerprints and
dirt, as any oily residue will etch the metal and become
somewhat permanent when the system gets hot. Run
the bike and enjoy. It is normal for some white smoke to
appear the first time you start the bike. T his is packing/
manufacturing oil from inside the pipe burning off.
Check for gaps or leaks. If you find a leak, a little high
temperature silicon sealant should fix it. After 50 to 100
miles, recheck all fasteners for tightness.
Care & Cleaning
Care & Cleaning
Keep system free of dirt and moisture. Store in a cool, dry place. Make sure vehicle is
completely cool before maintenance.
Stainless Header System: Polished stainless steel pipes will turn a light golden hue
after a few heat cycles, this is a normal characteristic of high quality stainless steel.
Clean using a mild water based spray cleaner. Always apply cleaner or polish with a soft,
clean cloth.
Titanium Header System: Polished titanium pipes will experience color shift ranging
from deep blue/purple through amber after a few heat cycles. This is a normal
characteristic of high quality titanium. Clean using a mild water based spray cleaner.
Always apply cleaner or polish with a soft, clean cloth.
Polished Aluminum Canisters: Use an aluminum or mag wheel polish to restore the
bright finish to factory spec.
Brushed Aluminum Canisters: Clean using a mild water based spray cleaner. Always
apply cleaner or polish with a soft, clean cloth.
Carbon Fiber Canisters: Clean using a mild water based spray cleaner. Always apply
cleaner or polish with a soft, clean cloth. Always make sure the fiberglass packing inside
is in good condition and not burned out, as exhaust heat inside an empty canister will
deteriorate the carbon fiber sleeve.
TBR sells repack kits (Road - #005-10038, Offroad - #005-10038MX) that include
everything you need to easily do it yourself.
Titanium Mufflers: For cleaning use a mild water based spray cleaner. Always apply
cleaner or polish with a soft, clean cloth. Always make sure the fiberglass packing inside
is in good condition and not burned out, as exhaust heat inside an empty canister will
deteriorate the carbon fiber sleeve.
TBR sells repack kits (Road - #005-10038, Offroad - #005-10038MX) that include
everything you need to easily do it yourself.
Repack all road canisters every 3,000 miles. Part #005-10038
Repack all offroad canisters after every 10 hours of use. Part #005-10038MX
NEVER dyno test your bike with carbon fiber or titanium canisters installed - the
intense heat and lack of cooling air can quickly burn through the canister material. Two
Brothers Racing does not provide a warranty for burned canisters.
