NINJA 650R
FullV.A.L.E.™ Exhaust System with M-2 Canister
Part # 005-31801
Parts List
1

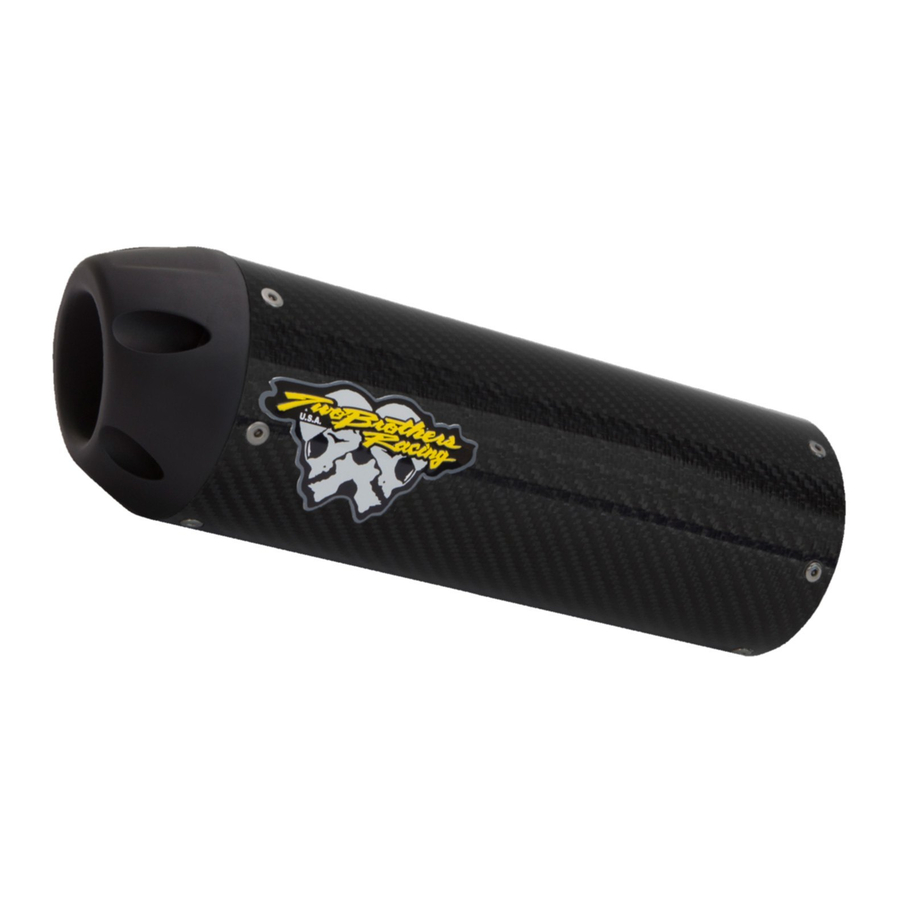

M-2 Muffler Canister
1
Header Kit
1
Muffler Clamp
1
HARDWARE KIT
2
X-Lite™ V.A.L.E.™ Retaining Ring
4
6x20mm Socket Head Cap Screw
4
6mm Split Lock Washer
1
P1 Power Tip™ (Installed)
1
8x16mm Flange Bolt
3
8x30mm Socket Head
4
8mm Flange Nut
1
Support Bracket
1
5mm Long Handle Ball end hex key
1
T20 Torx Hex Key
1
TBR Sticker Kit
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified motorcycle
technician. If you have any doubts as to your ability to install this performance part,
please consult with your local motorcycle dealer. Read all instructions first before
starting installation. Make sure the motorcycle and exhaust system are completely cool
before starting the installation. Also, make sure the bike is secure on a centerstand
or ideally a service lift during installation. Be sure to save all stock components for
possible use later.
1. Make sure the bike is completely cool before starting the
installation. Make sure the bike is secure on the sidestand
or ideally a service lift.
2. Remove the right side fairing to expose the muffler
assembly.
3. Remove the right foot rest assembly to access muffler
mounting bolts.
4. Remove muffler mounting hardware.
Varies
005-31801H
Varies
005-318-3C
005-7-2-3
005-SH620
005-WL6
005-P1
005-FB816
005-SH830
005-FN8
005-318-B
005-9-18610
005-9-15820
015-10212
5. Remove header nuts from cylinder head and remove
header assembly.
6. Attach supplied muffler mounting bracket to the three
rubber mounting supports. Use supplied nuts and bolts.
7. Loosely attach TBR muffler to TBR header using the
supplied 6x20mm bolts,washers and X-ring.
