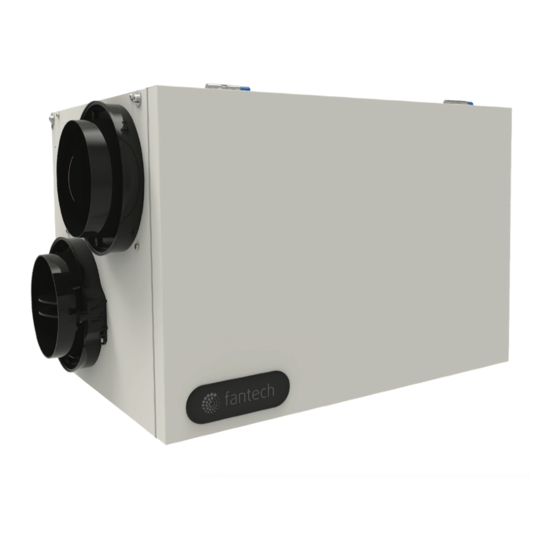

SER150
Energy Recovery Ventilators
Your ventilation system should be installed in conformance with the appropriate provincial/state requirements or, in the
absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE's "Good Engineering
Practices".
United States
10048 Industrial Blvd., Lenexa, KS, 66215
Tel.: 800.747.1762 • Fax: 800.487.9915
Canada
50 Kanalflakt Way, Bouctouche, NB, E4S 3M5
Tel.: 800.565.3548 • Fax: 877.747.8116
Fantech reserves the right to modify, at any time and without notice, any or all of its products' features, designs,
components and specifications to maintain their technological leadership position.
Please visit our website www.fantech.net for more detailed technical information.
Installation Manual
Item #: 427470
Rev Date: 2017-07-28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fantech SER150
Summary of Contents for Fantech SER150
- Page 1 50 Kanalflakt Way, Bouctouche, NB, E4S 3M5 Tel.: 800.565.3548 • Fax: 877.747.8116 Fantech reserves the right to modify, at any time and without notice, any or all of its products’ features, designs, components and specifications to maintain their technological leadership position.
- Page 2 Note Warning/ Information Technical Practical tip Important information note PLEASE READ THIS MANUAL BEFORE INSTALLING UNIT For residential use only Before installation careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler operating at a higher static pressure.
-
Page 3: Table Of Contents
TABLE OF CONTENTS DETERMINING YOUR AIRFLOW REQUIREMENT ........... . . 4 INSTALLATION EXAMPLES Fully dedicated system . -
Page 4: Determining Your Airflow Requirement
DETERMINING YOUR AIRFLOW REQUIREMENT Room Count Method Room classification Number of rooms CFM (L/s) CFM Required Master bedroom x 10 L/s (20 CFM) if yes add 10 L/s (20 CFM) Basement yes or no if no = 0 Bedrooms x 5 L/s (10 CFM) Living room x 5 L/s (10 CFM) Others... -
Page 5: Installation Examples
INSTALLATION EXAMPLES Suggested installation for: Example only – duct configuration may differ depending on the model. • Hydronic baseboard • Infloor heating FULLY DEDICATED SYSTEM • Electric baseboard BEST FOR NEW CONSTRUCTION • Mini split heat pump Benefits: Provides the best Stale air is drawn from key areas of the home requiring local exhaust fresh air distribution in the (bathroom, kitchen, laundry room). -
Page 6: Partially Dedicated System
ERV’s airflow must be balanced on site, using the procedure found in the section “AIRFLOW BALANCING” * In the case of a multi-zone system, please contact Fantech customer Make sure the ERV is service prior to installing any installation type requiring the use of the furnace interlock"... -
Page 7: Simplified Installation
ERV’s airflow must be balanced on site, using the procedure found in the section “AIRFLOW BALANCING” * In the case of a multi-zone system, please contact Fantech customer service prior to installing any installation type requiring the use of the furnace interlock"... -
Page 8: Exterior Ducting Installation
EXTERIOR DUCTING INSTALLATION WEATHERHOOD LOCATION OUTSIDE CORNER INSIDE CORNER • Decide where your intake and exhaust hoods will be located. 36" (1m) 36” (1m) Locating the Intake Weatherhood • Should be located upstream (if there are prevailing winds) from the 3' (900mm) exhaust outlet. -
Page 9: Interior Ducting Installation
INTERIOR DUCTING INSTALLATION • To maximize airflow through the ductwork system, all ducts should be kept short and have as few bends or elbows as possible. • 45º elbows are preferable to 90º. • Use “Y“ ducts instead of “T” ducts whenever possible. •... -
Page 10: Erv Installation
ERV INSTALLATION LOCATION The ERV must be located in a conditioned space where it will be possible to conveniently service the unit. Typically the ERV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will be mounted. -
Page 11: Start Up Procedure
INSTALLING DRAIN LINE Through normal operation and during its defrost mode, the ERV may produce some condensation. This water should flow into a nearby drain, or be taken away by a condensate pump. The ERV and all condensate lines must be installed in a space where the temperature is maintained above the freezing point. A “P”... - Page 12 Airflow balancing (Cont'd) Adjusting airflows A damper is integrated into the Fresh Air to Building collar. This damper replaces the installation of a separate damper into the Fresh Air to Building ducting line. The damper-collar is pre-set in the fully opened position. If the procedure requires a reduction in airflow to the fresh air duct, simply turn positioning knob located on the side of the collar clockwise until desired airflow is obtained.
-
Page 13: Low Voltage Control Systems
Low Voltage Control Systems * Please see instruction manuals for individual controls for proper wiring and set up of control systems. CENTRAL CONTROLS These control options can only be used individually Ensure that unit is not CONTROLS FEATURES CONNECT TO plugged when connecting ECO-Touch®... -
Page 14: Wiring Diagram
WIRING DIAGRAM... - Page 15 WIRING DIAGRAM (CONT'D) WIRING DIAGRAM TO Standard Accessory Control Contact Standard Furnace Interlock Wiring FURNACE THERMOSTAT TERMINALS FOUR WIRE TWO WIRE heating only FOR A FURNACE CONNECTION TO A COOLING SYSTEM: On some newer furnaces and older FURNACE thermostats, energizing the R and 24-VOLT TERMINAL BLOCK G terminal at the furnace has the...
-
Page 16: Troubleshooting
TROUBLESHOOTING Problem Causes Solutions Air is too dry Dehumidistat control is set too low Increase the desired level of humidity. Change ventilation mode from continuous mode to standby. ERV out of balance Have contractor balance ERV airflows Air is too humid Dehumidistat control is set too high Reduce the desired level of humidity. -
Page 17: Erv Maintenance Chart
Lines beginning of the warranty period. Vacuum the Inside of the Annually • The fans found in all Fantech ERVs Unit require no lubrication, and are factory balanced to prevent vibration and Clean and Un-block Annually promote silent operation. -
Page 18: Erv Core Washing Instruction
ERV core washing instructions For proper maintenance of your energy recovery core please follow these instructions Remove both filters by sliding them out. Remove the core from the unit. With one of your core's air inlets facing down, place it in a large sink, bathtub, or shower. -
Page 19: Parts List
PARTS LIST SER150 BOM # Description (99209) R2E 190 Radical, Rep. Kit 405520 Electrostatic Filters Kit 8.5” x 15” 402041 Energy Recovery Cell 9” x 9” x 15” 427473 Capacitors 8uF 410012 Kit,PCB Replacement,Board,AC 422677 Door Switch 410867 Auto-Transformer 411963... - Page 20 Fantech reserves the right to make technical changes. For updated documentation please refer to www.fantech.net Fantech®...
