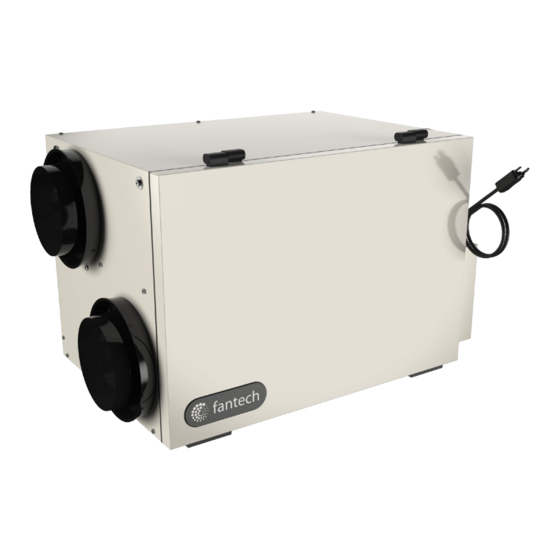

Fantech SER 1504 Installation Manual
Energy recovery
Hide thumbs
Also See for SER 1504:
- Installation, operation and maintenance manual (32 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
SER Series
Energy Recovery Ventilators
Your ventilation system should be installed in conformance with the appropriate provincial requirements or, in the absence of
such requirements, with the current edition of the National Building Code, and / or ASHRAE's "Good Engineering Practices".
United States
10048 Industrial Blvd., Lenexa, KS, 66215
Tel.: 800.747.1762 • Fax: 800.487.9915
Canada
50 Kanalflakt Way, Bouctouche, NB, E4S 3M5
Tel.: 800.565.3548 • Fax: 877.747.8116
Fantech reserves the right to modify, at any time and without notice, any or all of its products' features, designs,
components and specifications to maintain their technological leadership position.
Please visit our website www.fantech.net for more detailed technical information.
Installation Manual
SER 1504 • SER 2004 • SER 3204D
Item #: 401455
Rev Date: 2016-02-08
fantech
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fantech SER 1504
Summary of Contents for Fantech SER 1504
- Page 1 Tel.: 800.565.3548 • Fax: 877.747.8116 fantech Fantech reserves the right to modify, at any time and without notice, any or all of its products’ features, designs, components and specifications to maintain their technological leadership position. Please visit our website www.fantech.net for more detailed technical information.
- Page 2 Your ventilation system should be installed in accordance with the local building code that is in effect, in absence of such requirements, it is recommenced to check with local authorities having jurisdiction in your area prior to installing this product fantech...
-
Page 3: Table Of Contents
SER3204D ............... . . 21 fantech... -
Page 4: Determining Your Airflow Requirement
* ASHRAE 62.2-2010 Table 4.1, Ventilation and Acceptable Indoor Air Quality in Low-Rise Residential Buildings. Bathroom: If the ERV is going to provide the required local exhaust ventilation for each bathroom with each a continuous 20 CFM (10 L/s), this ventilation rate can be considered as part of the whole-building ventilation rate. fantech... -
Page 5: Installation Examples
3. The ERV's airflow must be balanced on site using the procedure found in section "AIRFLOW BALANCING" FEL 4 (4” Miter Elbow) Exhaust CG 4 (4” Adjustable Grill) Bathroom Bedrooms Central Control - optional Fresh air to living room Fresh Air 460 mm Exhaust Air fantech... -
Page 6: Partially Dedicated System
1 m (3' 3") Stale air coming from different areas of the min. house (ie bathroom, kitchen). recommended Cold air return * Unit air flow should be balanced while ERV is on "High" speed and fur- nace blower is running. fantech... -
Page 7: Simplified Installation - Option 1
1 m (3' 3") Outside Stale air coming from different areas of the min. house (ie bathroom, kitchen). recommended Cold air return * Unit air flow should be balanced while ERV is on "High" speed and fur- nace blower is running. fantech... -
Page 8: Simplified Installation - Option 2
1 m (3' 3") Outside min. Stale air coming from different areas of the recommended house (ie bathroom, kitchen). Cold air return * Unit air flow should be balanced while ERV is on "High" speed and fur- nace blower is running. fantech... -
Page 9: Exterior Ducting Installation
Cut a insulation over the duct and and exhaust hoods. hole for both the intake and pull the vapor barrier over the exhaust hoods. sleeve. Secure with appropriate tape or sealant. fantech... -
Page 10: Interior Ducting Installation
In this method, the exhaust air is not ducted back from bathrooms, kitchens, etc to the ERV with “dedicated lines”. As per building codes and installation requirements for combustion appliances: Air return ducts, or openings for air return, should not be placed in enclosed spaces containing combustion appliances that are subject to spillage. fantech... -
Page 11: Erv Installation
(3/4") bolt (provided) in the in the links so a loop is hooks, making sure the top 4 corners of the unit created in the chain. The unit is level. and tighten. spring will then support the unit's weight and absorb vibrations. fantech... -
Page 12: Start Up Procedure
• For optimal performance, ERV unit should be re-balanced after a major renovation or after the installation of extra grilles or registers. fantech... -
Page 13: Airflow Adjustment
Reading should also be taken at a minimum here distance of 457mm (18") from the unit or Measure elbow. Measurement should also be made here Minimum prior to any transition in the duct work so 457mm (18") entire airflow is measured. fantech... -
Page 14: Low Voltage Control System
HIGH speed for 60 minutes (Red). • Press button a fourth time to cancel the timer (LED turns off). • Rotary dial Dehumidistat MDEH1 • Multiple units can be used • We recommend setting the relative humidity above 80% during the summer fantech... -
Page 15: Ser1504, Ser2004
Wiring Diagram – SER1504, SER2004 fantech... -
Page 16: Ser3204D
Wiring Diagram – SER3205D fantech... -
Page 17: Electrical Connections
WIRE JOINT FURNACE 24-VOLT TERMINAL BLOCK COOLING SYSTEM WIRE Never connect a 120 volt AC circuit to the terminals of the accessory control contacts. Only use the low voltage class 2 circuit of the furnace blower control. fantech... -
Page 18: Troubleshooting
LED is flashing Everything is in good operation No power is being transmitted to the Control Board Make sure unit is plugged. Transformer may need replacing Note: It is best to get the unit checked by a certified HVAC Contractor/Technician. fantech... -
Page 19: Erv Maintenance Chart
Lines beginning of the warranty period. Vacuum the Inside of the Annually • The fans found in all Fantech ERVs Unit require no lubrication, and are factory balanced to prevent vibration and Clean and Un-block Annually promote silent operation. -
Page 20: Parts List
Energy Recovery Cell 401109 422711 Door Switch 410867 410867 Capacitors 410012 410040 PCB, UNICTRL 402004 402004 Auto-Transformer 411963 411963 Control Switch 410213 410213 PCB, Wiring Panel 411719 411719 Kit Drain Plug 40315 40315 Motor Assembly 405520 40323 Door Kit 405537 405539 fantech... -
Page 21: Ser3204D
Electrostatic Filters Kit 11.5” x 11” 40328 Energy Recovery Cell 422712 Door Switch 410867 Capacitors, 6uF 411222 Electronic Board 402004 Auto-Transformer 411963 Control Switch 410213 PCB, Wiring Panel 411719 Kit Drain Plug 40315 Motor Assembly 405520 Door Kit 405540 fantech... - Page 22 Notes fantech...
- Page 23 Notes fantech...
- Page 24 Fantech reserves the right to make technical changes. For updated documentation please refer to www.fantech.net Fantech® fantech...
