IMPORTANT - PLEASE READ THIS MANUAL
BEFORE INSTALLING UNIT
CAUTION -
Before installation, careful consideration must be given to how this system
will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace
or air handler, operating at a higher static. After installation, the compatibility of the two
pieces of equipment should be confirmed by measuring the airflow's of the Heat Recovery or
Energy Recovery Ventilators.
It is always important to assess how the operation of any HRV/ERV may interact with vented
combustion equipment (i.e. Gas Furnaces, Oil Furnaces, Wood Stoves, etc.).
NEVER -
install a ventilator in a situation where its normal operation, lack of operation or
partial failure may result in the backdrafting or improper functioning of vented combustion
equipment!!!
Your ventilation system should be installed in conformance with the appropriate provincial or state requirements
or in the absence of such requirements with the current edition of the National Building Code, and / or
ASHRAE's " Good Engineering Practices".

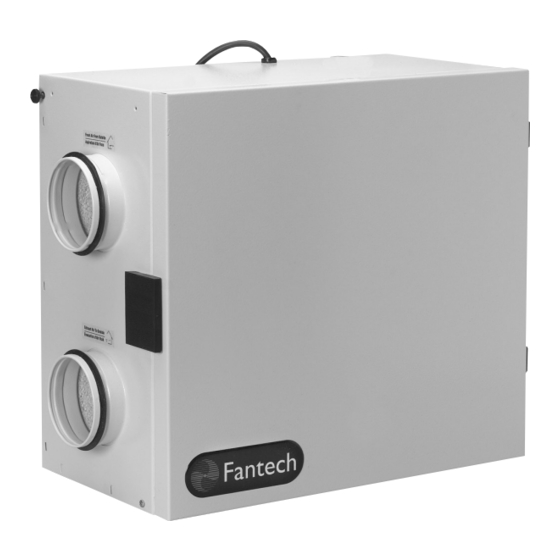

SH, VH & SE Models
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
SH, VH & SE Series
Heat & Energy Recovery Ventilators
SH704 • VH704 • SE704
1
Advertisement
Table of Contents
Related Manuals for Fantech SH704
Summary of Contents for Fantech SH704
- Page 1 Your ventilation system should be installed in conformance with the appropriate provincial or state requirements or in the absence of such requirements with the current edition of the National Building Code, and / or ASHRAE’s “ Good Engineering Practices”. SH, VH & SE Models SH704 • VH704 • SE704 INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
* Always consult your local code for sizing requirements in your area. during this time period. If there is no * If additional exhaust capacity is required, installation of a fantech bath kit in main bath area proof of purchase available, the date is recommended. -
Page 3: Sh704
WARRANTY Limited lifetime on aluminum core, 7 years on motors, and 5 years on parts. Distributed by: Fantech, reserves the right to modify, at any time and without notice, any or all of its products’ fea- tures, designs, components and specifications to maintain their technological leadership position. - Page 4 – – – – Specifications and Ratings • Model: SH704 • Insulated with 1" (25 mm) aluminum foil-face • Supply & exhaust ducts: 4˝ (100mm) • Total assembled weight: 25 lbs (11kg) high density polystyrene foam to prevent con- • Mounting: Wall bracket included •...
-
Page 5: Vh704
WARRANTY Limited lifetime on aluminum core, 7 year on motors, and 5 year on parts. Distributed by: Fantech, reserves the right to modify, at any time and without notice, any or all of its products’ fea- tures, designs, components and specifications to maintain their technological leadership position. - Page 6 50 Kanalflakt Way, Project #: Sarasota, FL. 34234 Bouctouche, NB E4S 3M5 Location: (T) 1.800.747.1762 (T) 1.800.565.3548 (F) 1.800.487.9915 (F) 1.877.747.8116 Architect: (T) 1.941.309.6000 (T) 1.506.743.9500 (F) 1.941.309.6099 (F) 1.506.743.9600 Engineer: www.fantech.net www.fantech.ca Article #: 412120 info@fantech.net info@fantech.ca Contractor: Rev Date: 120805...
-
Page 7: Se704
4˝ 90˚ Elbow • CG 4 – 4˝ Adjustable Grille Distributed by: Fantech, reserves the right to modify, at any time and without notice, any or all of its products’ fea- tures, designs, components and specifications to maintain their technological leadership position. - Page 8 50 Kanalflakt Way, Project #: Sarasota, FL. 34234 Bouctouche, NB E4S 3M5 Location: (T) 1.800.747.1762 (T) 1.800.565.3548 (F) 1.800.487.9915 (F) 1.877.747.8116 Architect: (T) 1.941.309.6000 (T) 1.506.743.9500 (F) 1.941.309.6099 (F) 1.506.743.9600 Engineer: www.fantech.net www.fantech.ca Article #: 412122 info@fantech.net info@fantech.ca Contractor: Rev Date: 120805...
-
Page 9: Installation
3 prong plug-in power card. Place bumpers on back of unit (included) INSTALLING DRAIN LINE - (SH704 & VH704 ONLY) - Drainline not included in kit Through normal operation and during its defrost mode, the HRV may produce some condensation. This water should flow into a nearby drain, or be taken away by a condensate pump. - Page 10 INSTALLING DUCTS GOING TO / FROM OUTSIDE A well designed and installed ducting system will allow the HRV to operate at its maximum efficiency. Always try to keep duct PRACTICAL runs as short and straight as possible. See Installation Diagrams for installation examples. TIPS INSTALLING THE DUCTING •...
-
Page 11: Exhaust Air Ducting
HRV/ERV to the living areas in the house is recommended whenever possible, although flexible duct can be used in moderation when necessary. Warning: The SH704 & VH704 should be installed with a 4” (100mm) duct system that has less than 80 ft (25m) of equivalent duct length on the supply and on the exhaust side. -
Page 12: Examples
INSTALLATION EXAMPLES Fully Dedicated System (suggested for new construction) Stale air drawn from key areas of home (bathroom, kitchen, laundry) Fresh air supplied to main living areas Example diagram only-duct configuration may change depending on model... -
Page 13: Partially Dedicated System
INSTALLATION EXAMPLES (CONT'D) DIRECT CONNECTION of the SUPPLY AIR STREAM to the FURNACE COLD AIR RETURN (Stale air drawn from key areas of home) Partially Dedicated System Stale air drawn from key areas of home (bathroom) Fresh air supplied to main living areas via the forced air system. NOTES: 1.Furnace blower may be required to operate when HRV/ERV is on to provide good air distribution. -
Page 14: Simplified Installation
INSTALLATION EXAMPLES (CONT'D) Example diagram only-duct configuration may change depending on model DIRECT CONNECTION of both the HRV/ERV SUPPLY AIR STREAM and EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN Simplified Installation Option 1 (Return/Return Method) • It is mandatory that the furnace blower run continuously or HRV/ERV operation be interlocked with the furnace blower... - Page 15 INSTALLATION EXAMPLES (CONT'D) Example diagram only-duct configuration may change depending on model DIRECT CONNECTION of both the HRV/ERV SUPPLY AIR STREAM & EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN & SUPPLY AIR SIDE Simplified Installation Option 2 (Supply/Return Method) •...
-
Page 16: Air Flow Balancing
AIR FLOW BALANCING * Fantech’s superior design and use of EBM motors results in a steep fan curve that usually does not require balancing. Commissioning the system after installation is recommended which include confirming the proper operation of the system and how it interacts with other components within the home. -
Page 17: Maintenance
The motor - The motors are factory HEAT RECOVERY CORE (SH704 & VH704 ONLY) balanced and lubricated for life. They require no maintenance. The heat recovery core needs to be checked and cleaned every six months. The core can be cleaned using a mild soap and water. -
Page 18: Troubleshooting
(eg. Over a sofa) -Outdoor temperature extremely cold -Use superior grilles such as Fantech CG grille A small duct heater (1kw) could be used to temper the supply air -Placement of furniture or closed doors is restricting the movement of... -
Page 19: Electrical Connections
ELECTRICAL CONNECTIONS SH704 & VH704 Fantech SE704 50 Kanalflakt Way Bouctouche, NB, Canada E4S-3M5 Tel:/Tel: (506) 743-9500 Fax/Tcpr:(506) 743-9600 The duplication and usage of this document or the contents thereof, without proper authorization is strictly prohibited. Contravention will be prosecuted. - Page 20 United States Canada Fantech, reserves the right to modify, at any time and without notice, any or all of its products’ features, designs, components and 1712 Northgate Blvd., 50 Kanalflakt Way, specifications to maintain their technological leadership position. Sarasota, FL. 34234 Bouctouche, NB E4S 3M5 Phone: 800.747.1762;...
