- Page 1 TELEDYNE FOXY R1 - R2 Clarity Control Module Code/Rev.: M164/80G Date: 8/24/2020 Phone: +420 251 013 400 DataApex Ltd. Fax: +420 251 013 401 Petrzilkova 2583/13 clarity@dataapex.com 158 00 Prague 5 www.dataapex.com The Czech Republic...
- Page 2 Clarity ® , DataApex ® and ® are trademarks of DataApex Ltd. Microsoft ® and Windows TM are trademarks of Microsoft Corporation. DataApex reserves the right to make changes to manuals without prior notice. Updated manuals can be downloaded from www.dataapex.com. Author: JaKa...
-
Page 3: Table Of Contents
Contents 1 Teledyne Foxy R1 - R2 Control Module 2 Requirements 3 Installation Procedure 3.1 Teledyne Foxy R1 - R2 fraction collector communication 3.2 Clarity Configuration 4 Using the control module 4.1 Method Setup - FC - Fraction Table 4.2 Method Setup - FC - Vial Numbers 4.3 Hardware Configuration... - Page 4 Teledyne Foxy R1 - R2 Table of Contents To facilitate the orientation in the Teledyne Foxy R1 - R2 manual and Clarity chromatography station, different fonts are used throughout the manual. Meanings of these fonts are: Instrument (blue text) marks the name of the window to which the text refers.
-
Page 5: Teledyne Foxy R1 - R2 Control Module

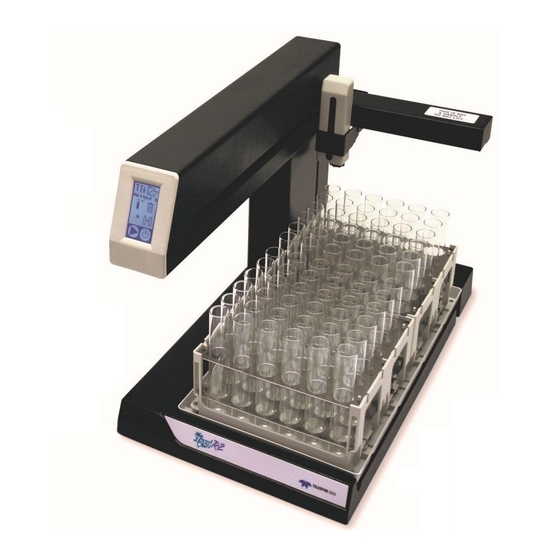

1 Teledyne Foxy R1 - R2 Control Module 1 Teledyne Foxy R1 - R2 Control Module This manual describes the setting of the Teledyne Foxy R1 - R2 fraction collector. The control module enables direct control of the instrument over... -
Page 6: Requirements
Teledyne Foxy R1 - R2 2 Requirements 2 Requirements Clarity Installation USB with appropriate control license allowed - LC Control (p/n A24). Free LAN or COM port in the PC. Note: Modern computers usually have only one (if any) serial (COM) port installed. -
Page 7: Installation Procedure
3 Installation Procedure 3.1 Teledyne Foxy R1 - R2 fraction collector communication The Teledyne Foxy R1 - R2 is controlled either by serial (RS232) communication with a standard serial DB9F- DB9M straight cable (p/n SK02) described in the picture below or by LAN communication using a standard crossover cable (p/n SK08). -
Page 8: Clarity Configuration
Teledyne Foxy R1 - R2 3 Installation Procedure 3.2 Clarity Configuration Fig 3: How to Add Teledyne Foxy R1 / R2 Control Module Start the Clarity station by clicking on the icon on the desktop. Invoke the System Configuration dialog accessible from the Clarity window using the System - Configuration... - Page 9 DataApex UNI Setup dialog will appear. Fig 4: Teledyne Foxy R1 / R2 Setup Set the correct communication Port and click on the AutoDetect button to establish communication with the device. You may fill in the custom Device Name.
-
Page 10: Using The Control Module
Method Setup dialog depending on the type of the instrument. A new Teledyne Foxy R1 - R2 fraction collector section enabling the monitoring of the current fraction collector state will be also created in the Device Monitor window. -
Page 11: Method Setup - Fc - Fraction Table
4.1 Method Setup - FC - Fraction Table Method Setup - FC - Fraction Table tab is used for setting the automatic fraction collection program of the Teledyne Foxy R1 - R2 fraction collector. The actions of the fraction collector can be displayed in Data Acquisition... - Page 12 Teledyne Foxy R1 - R2 4 Using the control module waste/collect valve, this field should be left empty and the total tubing volume between the detector and fraction collector tray should be typed into the Delay Volume Detector - Valve field.
- Page 13 Teledyne Foxy R1 - R2 4 Using the control module starts when the detector signal increases above the Level Start stops when the detector signal decreases below the Level Stop Slope - The fraction collection: starts when the first derivative of the detector signal increases above...
- Page 14 Teledyne Foxy R1 - R2 4 Using the control module starts when both start signal conditions are fulfilled simultaneously, detector signal increases above Level Start value and also the first derivative of the detector signal increases above Slope Start value. If only one of the start signal conditions is fulfilled the fraction collection will not start.
- Page 15 Teledyne Foxy R1 - R2 4 Using the control module stops when any of the stop signal conditions is fulfilled (whatever occurs first), detector signal decreases below Level Stop value or the first derivative of the detector signal first decreases and then increases above the negative of the Slope Stop value.
-
Page 16: Method Setup - Fc - Vial Numbers
4.2 Method Setup - FC - Vial Numbers Method Setup - FC - Vial Numbers tab is used for setting the behavior of the Teledyne Foxy R1 - R2 fraction collector. Fig 7: Method Setup - FC - Vial Numbers Start Vial Number Vial Number Sets the number of the vial where the first collected fraction will be stored. - Page 17 Teledyne Foxy R1 - R2 4 Using the control module Waste - the acquisition continues, but the fraction table is ignored and the samples are automatically discarded. Shutdown - the acquisition is immediately stopped and the analysis aborted. Vial Change Options Waste During Vial Change This option prevents spilling when the vial is changed during collection.
-
Page 18: Hardware Configuration
Method Setup - LC Method Setup - FC Method Setup - Valves dialog) displays the configuration of the Teledyne Foxy R1 - R2, namely the communication type and its parameters. Fig 8: Hardware Configuration Teledyne Foxy R1 / R2... -
Page 19: Device Monitor
Device Monitor icon. Device Monitor - Fraction Collector Fig 9: Device Monitor - Teledyne Foxy R1 / R2 Fraction Collector Current Position Displays whether the fraction collector is currently wasting or the position to which it is currently collecting. - Page 20 Teledyne Foxy R1 - R2 4 Using the control module moment, it will start a waste cycle and then resume the function of the fraction table. - 16 -...
-
Page 21: Data Acquisition Window
Teledyne Foxy R1 - R2 4 Using the control module 4.5 Data Acquisition window Fig 10: Data Acquisition window Data Acquisition window can display the fractions in the graph using the background color and also the start and stop fraction events and marker of the Fraction Delay. -
Page 22: Dataapex Uni Setup
Ruby Script Displays selected Ruby Script. correct TELEDYNEISCOFOXYRXFC.RB script for the Teledyne Foxy R1 - R2 instrument can be found in the UTILS/UNI_ DRIVERS/ TELEDYNE subdirectory (accessible through the button) of the Clarity installation folder (C:\CLARITY\BIN by default). Port Defines the communication port used, possible values dependent on the type of communication of the device and/or available ports in the PC. - Page 23 Rack Selection Allows the user to select the correct rack type installed on the Teledyne Foxy R1 - R2 fraction collector. The Teledyne Foxy R1 - R2 fraction collector may support up to two racks depending on the model, but both settings can be read from the fraction collector itself by using the Autodetect button.
-
Page 24: Report Setup
Teledyne Foxy R1 - R2 5 Report Setup 5 Report Setup The fraction collector section on the method report can be enabled by checking the Instrument Control checkbox on the Method tab of the Report Setup dialog. Fig 12: Report Setup... -
Page 25: Troubleshooting
Note: Instead of COM1, type the communication port used to communicate with the Teledyne Foxy R1 - R2 fraction collector. This port number is displayed when the FC Status button in the Method Setup - FC dialog is invoked.
