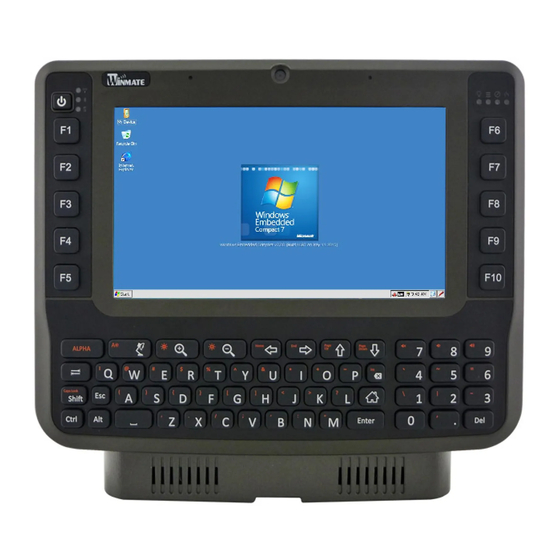

- Page 1 Winmate FM08 Vehicle Mounted Computer ® ® Microsoft Windows 7 Professional for Embedded System ® ® Microsoft Windows Embedded 8.1 Industry Pro Quick Start Guide...
-
Page 2: Table Of Contents
Standby / Wakeup Behavior vi. Defroster vii. Antenna Installation viii. RAM Mounts Installation a. Component of RAM Mounts kits b. RAM Mounts assembly Keyboard Mounting Installation For more detail information about this device, please refer to the FM08 User Manual available at http://www.winmate.com/... -
Page 3: Features
FM08 Quick Start Guide Features... -
Page 4: Unpacking
FM08 Quick Start Guide ii. Unpacking Computer FM08 Dock with latch locking key Power cable (5 m) with 2 x fuse kit USB Cable (0.3 m) Stylus Kit with Screw Cable clamp kit 2 x WiFi External Antenna ... -
Page 5: Docking And Undocking The Device
FM08 Quick Start Guide Users are highly recommended to purchase this power cable for Note testing purpose iii. Docking and Undocking the Device a. Dock the device into vehicle dock To dock the device, perform the following: 1. With the device screen side facing out, align and insert the device into the guide pins on the vehicle dock. -
Page 6: Cabling Installation
1. Place the device on the vehicle dock and make sure the device is Off 2. Connect the CN2 to the FM08 vehicle dock by aligning the connector pins and then push it, twist to fasten the connection. -
Page 7: Connecting The Power Cable On The Vehicle
FM08 Quick Start Guide 4. Switch the power switch On, located on the back of the vehicle dock 5. Press the On button, the device is ready for testing b. Connecting the power cable on the vehicle This power cable should only be used on the 12, 24, 36, or 48 Warning Volt forklifts. - Page 8 FM08 Quick Start Guide Fuse Specification : Two Fuses , 15A, 250Volt, UDA Type Fuses Warning All power wiring must use the supplied power cable 4. Slide tubing over wires , remove the wires and insert it to the fuse holder, crimp it wire to the vehicle‟s positive power source.
-
Page 9: Power On Behavior
FM08 Quick Start Guide 7 Secure the power cable to the device using cable clamps and place the device in the dock. See Power cable routing below Use the proper cable clamps and not to over tighten it to Warning... -
Page 10: Power Button
The Power button is located at lower right of the FM08 Note • The FM08 need to be docked in a powered vehicle dock or UPS battery has a sufficient charge to power the device. • If no external power available and the UPS... -
Page 11: Defroster
FM08 Quick Start Guide Power Button Action Button Indicator Backlight Press the On button for “2 seconds” until the screen On and then release Standby or the button. The battery indicator will Sleep Mode Off after the screen is Off, the... - Page 12 FM08 Quick Start Guide 2. The default status of Defroster is Enabled in the auto on mode 3. Depending on the defroster trip point, to trigger the Defroster ON, the defroster on trip point need to be lower than 0 or 5 deg. C. The defroster on trip point default is “0” and can be...
-
Page 13: Antenna Installation
FM08 Quick Start Guide vii. Antenna Installation The FM08 vehicle dock is equipped with SMA Connector for additional external antenna (WiFi or optional WWAN), to install the Antenna please perform the following: 1. Remove the rubber cap on the SMA connector before installing the antenna 2. -
Page 14: Ram Mounts Installation
FM08 Quick Start Guide viii. RAM Mounts Installation a. Component of RAM Mounts kits The docking of this device is designed to be mounted to RAM Mount solutions, which provides various types of mount types to fit any industrial use or vehicle. Each mounting kit consists of:... -
Page 15: Keyboard Mounting Installation
FM08 Quick Start Guide 1.2 Place the upper clamp with ball on the beam, insert the bolt 1.3 Place the lower clamp below the beam, align the bolts with the holes in the lower clamp 1.4 Place the nuts and then tighten the Step 2. - Page 16 FM08 Quick Start Guide Winmate Part RAM Mounts Component Description Number Part Number 4 VESA Holes on Winmate Keyboard adapter the plate to device 821009131600 plate (designed by Winmate) and 4 AMPS holes to RAM Ball SUS304 M5 x Screw...
- Page 17 If the customer discovers a defect, Winmate Communication Inc. will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period, with transportation charges prepaid.
