Winmate FM07A User Manual

7-inch vehicle mount computer freescale i.mx 6 dual core android 6.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

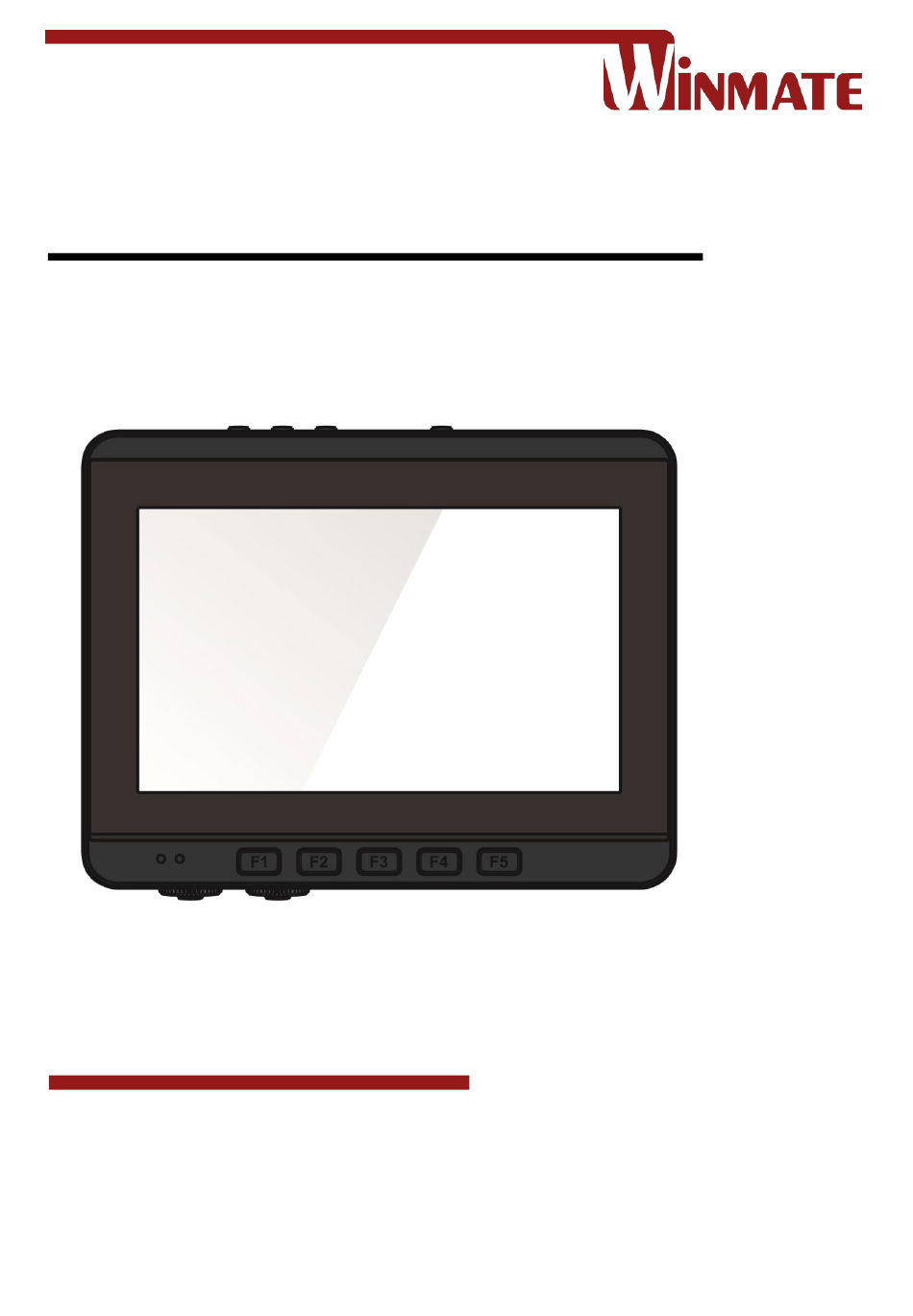

FM07A
7-inch Vehicle Mount Computer
Freescale i.MX 6 Dual Core
Android 6.0
User Guide
Version 1.0
Document Part No. 9152111I109D
Please read this instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM07A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate FM07A

Summary of Contents for Winmate FM07A

  • Page 1 FM07A 7-inch Vehicle Mount Computer Freescale i.MX 6 Dual Core Android 6.0 User Guide Version 1.0 Document Part No. 9152111I109D Please read this instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    7-inch Vehicle Mount Computer FM07A User Guide TABLE OF CONTENTS READ ME FIRST .............................. 5 (FR) ........................6 NFORMATIONS DE SÉCURITÉ (EN) ..........................6 AFETY NFORMATION ............................6 BOUT UIDE CHAPTER 1: INTRODUCTION ........................7 1.1 I ............................7 NTRODUCTION 1.2 P...
  • Page 3 Warranty Winmate Inc. warrants that each of its products is free from material and workmanship defect for a period of one year starting from the invoice date. If the customer discovers a defect, Winmate Inc. will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period, with transportation charges prepaid.
  • Page 4 7-inch Vehicle Mount Computer FM07A User Guide FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions:  This device may not cause harmful interference.  This device must accept any interference received...

  • Page 5: Read Me First

    Read Me First Read Me First Follow and adhere to all warnings and instructions in this manual. For your safety, please read all safety and operating instructions before using the product. Keep this manual for future reference. Attention: Pour réduire le risque d’incendie ou de choc électrique ne pas exposer l’appareil à la pluie ou à...

  • Page 6: Informations De Sécurité (Fr)

    About This Guide This User Guide provides instruction for the system administrator to follow when configuring and using the FM07A Vehicle Mount Computer. This User Guide has been developed for a FM07A with Android 6.0 operating system.

  • Page 7: Chapter 1: Introduction

    The FM07A is a rugged vehicle mounted computer delivering flexibility and mobility in a vehicle-mount form factor; designed to be easily mounted on a vehicle. The device is designed to help minimize errors, streamline orders and inventory management as well as improve operational efficiencies.

  • Page 8: Package Contents

    7-inch Vehicle Mount Computer FM07A User Guide 1.2 Package Contents Standard Before using this device, make sure that all the items listed below are present in your package:    FM07A Computer User Guide Driver CD Part No. 9171111I104E Varies by product specifications Part No.

  • Page 9: Components

    Chapter 1: Introduction 1.3 Components 1.3.1 Front View Item Description 7-inch Touch Acts as one of the inputs for the device Screen Function Keys 5 programmable function keys that can be configured by Win-Set ® Utility Power LED indicator On: Power is on Off: Power is off LED Indicators Storage LED indicator...
  • Page 10 7-inch Vehicle Mount Computer FM07A User Guide 1.3.2 Rear View Item Description 1 Watt Speaker Emits sound RAM Mount RAM base dimensions: 38.1 x 30 mm VESA Mount VESA dimensions : 75 x 75 mm...
  • Page 11 Chapter 1: Introduction 1.3.3 Side View Left Side Right Side Item Description USB Connector (DB9) that supports a connection of two USB USB Connector devices. SIM Card Slot is located under protection cover secured with 4 SIM Card Slot screws Press Reset button to clear the memory and reboot the device Reset Button forcibly.
  • Page 12 7-inch Vehicle Mount Computer FM07A User Guide 1.3.4 Top and Bottom View Top Side Bottom Side Item Description WWAN Antenna For WWAN antenna (Optional). GPS Antenna For GPS antenna (Optional). Wi-Fi Antenna (Main) For Wi-Fi antenna. Power Button Press power button to start the system.

  • Page 13: Chapter 2: Hardware

    This chapter describes system hardware of FM07A Vehicle Mount Computer. 2.1 System Hardware 2.1.1 Central Processing Unit The FM07A is running on Freescale i.MX 6 Dual Core processor with the frequency 1 GHz, and the operating system of this device is Android 6.0. 2.1.2 Input and Output Connectors The FM07A device supports the following I/O connectors: •...

  • Page 14: Power Cable Installation

    Wiring Instruction 1. Place the device on the vehicle dock and make sure the device is Off. 2. Connect the M12 power cable to FM07A by aligning the connector pins and then push it, twist to fasten the connection. 3. Connect the AC plug to the electrical outlet.
  • Page 15 Chapter 2: Hardware 2.2.3 Connecting the power cable for installation on the vehicle WARNING!/ AVERTISSEMENT! This power cable should only be used on the 24 or 36 Volt forklifts. Note that, this power cable cannot work for 12 Volt forklifts. Ce câble d'alimentation ne doit être utilisé...
  • Page 16 10 seconds. 2.2.4 Vehicle DC Power Supply The power input voltage range for the FM07A is between 9 to 24V DC with ignition control. Warning!/ Avertissement! Longer cable length may cause voltage drop resulting in failure to boot the device , if you are unable to boot the device ,please check the line loss of your cable and make sure the power input for power connector of the unit is higher than 9V.

  • Page 17: Power Control

    2.3 Power Control 2.3.1 Power Button Power button is located on the top of the device. When the FM07A is connected to the external power and the power button is ON, the device can be powered on. 2.3.2 Ignition Control The FM07A supports power ignition function.
  • Page 18 Pin assignment and signal names of power cable 2.4.2 LAN Connector The FM07A has M12 type 12 pin LAN connector. Use LAN cable (supplied with FM07A) to connect the FM07A to the Ethernet. Pin assignment and signal names of LAN cable...
  • Page 19 Chapter 2: Hardware 2.4.3 RS-232 Connector The FM07A has DB-9 RS-232 connector. Use serial cable to connect the FM07A to external devices such as printer or scanner. Pin assignment and signal names of RS-232 connector Signal Description Data Carrier Detect – Input Receive Data –...
  • Page 20 7-inch Vehicle Mount Computer FM07A User Guide 2.4.4 DIDO &CANBus Connector The DIDO & CANBus connector is a DB-15 male connector located on the bottom side of the device. The connector supports a CANBus cable or a DIDO cable. Pin assignment and signal names of DIDO &CANBus connector and cable...
  • Page 21 Chapter 2: Hardware 2.4.5 USB 2.0 Connector The FM07A has DB-9 USB 2.0 connector located on the side that can support two USB devices such as printer or scanner. Pin assignment and signal names of USB 2.0 (D-9 Female) connector and cable...

  • Page 22: Antenna Connections

    7-inch Vehicle Mount Computer FM07A User Guide 2.5 Antenna Connections The FM07A is equipped with an 802.11 radio and can be ordered with external remote mount antennas. GPS and WWAN require external remote mount antennas. 1. WWAN External Antenna Connectors (Optional).

  • Page 23: Chapter 3: Software

    This section includes the software and hardware installation, the FM07A configuration, the wireless communication, and some other optional features. Since the FM07A configuration varies by your order, utility programs for its configurations and operations, the examples describe in this section are to be used as a guideline only;...
  • Page 24 7-inch Vehicle Mount Computer FM07A User Guide Description Icon Back Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further.
  • Page 25 Chapter 3: Software 3.1.4 Quick Settings You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > Device > Sound to change the volume.
  • Page 26 7-inch Vehicle Mount Computer FM07A User Guide 3.1.5 Status and Notification Icons To open the status bar appears at the top of every screen. On the left are notification icons and on the right are status icons, along with the current time.

  • Page 27: Control Panel

    Chapter 3: Software 3.2 Control Panel 3.2.1 Using the Touch Screen The touch screen is a touch-sensitive device that allows you to control and make selections on the device by controlling the location of the pointer on the screen. Note: Do not use sharp or pointed objects on the touch screen.

  • Page 28: System Settings

    7-inch Vehicle Mount Computer FM07A User Guide 3.3 System Settings 3.3.1 Display In the Android 6.0 user can adjust the screen brightness. Pull down from the top of the screen to get the notifications area. You can also access display settings in settings: To adjust the brightness of the screen: 1.
  • Page 29 Chapter 3: Software 3.3.2 Region and Language The instruction for installing, changing and uninstalling language in this section are applicable to FM07A with Android 6.0 OS. To access region and language settings, perform the following: Settings > Language & Input > Language...
  • Page 30 7-inch Vehicle Mount Computer FM07A User Guide 3.3.3 Sound To access sound settings, perform the following: Settings > Sound & Notification In this option you can adjust volume, change phone ringtone, and other volume settings.
  • Page 31 Chapter 3: Software 3.3.4 Touch Lock Press F1 and F2 simultaneously to perform touch lock. While the touch is locked, all function keys and touch will not be able to work, until you slide the bar to unlock the touch lock. Press F1 and F2 simultaneously one more time to perform unlock touch function, or you can slide the bar to unlock the touch lock.

  • Page 32: Ethernet

    7-inch Vehicle Mount Computer FM07A User Guide 3.3.6 Brightness Press F4 and F5 simultaneously to perform brightness adjustment. The adjustment slide bar will appear on screen transparently. Slide to the right side to increase the volume and slide to the left side to decrease the brightness.
  • Page 33 Chapter 3: Software Step 3 Ethernet APP main menu appears Setting Description Check Ethernet connection parameters: IP mode, IP address, DNS address Check Ethernet and others Configure Ethernet Enable Ethernet connection and configure its such as connection type Advanced Settings Configure advanced parameters of the Ethernet 3.4.2 Configuring Ethernet Settings Go to All Apps...

  • Page 34: Winset

    7-inch Vehicle Mount Computer FM07A User Guide 3.4.3 Checking the Ethernet Settings To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. 3.5 Winset 3.5.1 System Information...
  • Page 35 Chapter 3: Software 3.5.2 Function Buttons Winmate FM07A Vehicle Mounted Computer comes with preinstalled APP called Winmate® Key Mapping (WKM) which let users to assign functions of function keys F1 ~ F5. To set function keys open Winset You can set the application which the favorite you want as a shortcut in corresponding key.
  • Page 36 7-inch Vehicle Mount Computer FM07A User Guide Choose the function key and then select a Default application that will be opened by pressing on the function key you’ve selected. Press DEL to reset a function of the function key to previous settings.

  • Page 37: Winmate® Home Manager (Whm)

    3.6 Winmate® Home Manager (WHM) Winmate FM07A Vehicle Mounted Computer comes with preinstalled APP called Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 38 7-inch Vehicle Mount Computer FM07A User Guide Item Description Home Manager User can set which app to run up automatically after booting. User can set WHM password. Default password is “0000”. Password Manager About In this menu user can check information about WHM...
  • Page 39 Chapter 3: Software 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key, the system will go back to the same application which you have selected.
  • Page 40 7-inch Vehicle Mount Computer FM07A User Guide 3.6.2 How to Reset WHM Settings 1. If you want to reset the home manager settings, pull down the left side to open the status bar and open HomeManager service.
  • Page 41 Chapter 3: Software 2. System will request the password to login. Default password is “0000”. 3. Restart the system and you will go back to the normal Launcher. 4. In the Home manager->Home Selector Tab-> click the “Clear and Rest Default Home”. Specify the “Launcher 3”...
  • Page 42 7-inch Vehicle Mount Computer FM07A User Guide 3.6.3 How to Change WHM Password 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change...

  • Page 43: Bluetooth

    3. To turn the Bluetooth on or off, tap Bluetooth. A check mark indicates the Bluetooth adapter is turned on. 4. Click the Bluetooth icon in the windows notification area, a contextual menu for Bluetooth is displayed. NOTE: When FM07A is connected to other devices by Bluetooth, the flash light will be ON.
  • Page 44 7-inch Vehicle Mount Computer FM07A User Guide To add a device: 1. Go to Settings > Bluetooth. Choose the Bluetooth device that you want to connect and follow onscreen prompt to continue pairing and using the Bluetooth device.

  • Page 45: Connecting To Wi-Fi Networks

    2. Input the SSID (name) of the network, if the network is secured, tap the security menu and then tap the type of security deployed on the network. 3. Enter any required security credentials. 4. Tap Save. Note: When FM07A is connected to other devices by Wi-Fi, the flash light will be ON.

  • Page 46: Using The Wireless Wan (3G/Lte)

    7-inch Vehicle Mount Computer FM07A User Guide 3.9 Using the Wireless WAN (3G/LTE) The FM07A supports data 4G/LTE connection. Before using the data connection program, please insert the Micro-SIM card to your vehicle mount computer. Caution/ Attention Please power off the tablet before installing the Micro SIM card, or the device might be damaged by the incorrect installation behaviors.

  • Page 47: Camera Features

    Pull down from the right top of the screen to get the notifications area. The more bars encompassed, the better the signal is. 3.10 Camera Features Your FM07A device has a built in camera. 3.10.1 Taking Pictures To open Camera: 1.
  • Page 48 7-inch Vehicle Mount Computer FM07A User Guide The Camera icon indicates Camera mode. To take a picture: 1. Frame your subject. If you want to make fine adjustments to focus, watch for the focus ring. To focus on a different part of the image, touch it. To zoom in, pinch two fingers outwards. To zoom out, pinch two fingers inwards.

  • Page 49: Software Update

    3.11 Software Update Follow the software update guide to update the software. All the programming guides can be found in the driver CD included in the package. Use USB cable to connect your FM07A device to external computer to perform OTA Updates.
  • Page 50 7-inch Vehicle Mount Computer FM07A User Guide 3.11.2 OTA Update Guide OTA is a tool which can help you to update OS image. To receive Android OS image file contact our sales representatives. Once you get the image file follow the guideline below.
  • Page 51 Chapter 3: Software 4. Check "I agree to update" and click "UPDATE". 5. Wait for download finish it will take some time.
  • Page 52 7-inch Vehicle Mount Computer FM07A User Guide 6. Click "REBOOT NOW"”. 7. Wait for OTA to update. Important: Do not disconnect the power source! Do not remove the battery! 8. When Update finish, the computer opens desk screen.
  • Page 53 Chapter 3: Software 3.11.3 OS Image Update Guide 1. Decompress the archive FSL_MFG_TOOL_WM.zip 2. Go to the directory “FSL_MFG_TOOL_WM\Profiles\MX6Q Linux Update\OS Firmware\files\android”. 3. Move the following items to one folder: the u-boot-6q.bin, boot.img, system.img, userdata_img.tar.gz and recovery.img 4. In FSL_MFG_TOOL_WM folder that you decompressed in Step 1 click “MfgTool2.exe”. MfgTool_MultiPanel window pops up.
  • Page 54 7-inch Vehicle Mount Computer FM07A User Guide 7. Go to Settings > About tablet > Additional system updates 8. Warning menu pops up. Confirm the system update by clicking YES. Important: Ensure that OTG and power already connected. Do not disconnect the OTG from the source of power while system is updating.
  • Page 55 Chapter 3: Software 10. In the dialog click Yes to shut down and restart the system. 11. After the system reboot you will be able to see the system change. No Device Connected > HID-compliant. 12. Click Start to upgrade the system. 13.

  • Page 56: Chapter 4: Vehicle Mounting

    The rear cover of the FM07A supports VESA mount (75 x 75 mm). VESA Mounting Installation Instructions: 1. Attach the VESA Plate to the rear cover of the FM07A using 4 x M4 mm Phillips screws 2 .Follow instructions provided by VESA mount parts supplier.
  • Page 57 Chapter 4: Vehicle Mounting 4.3.1 Mounting Kit 1 – No Drill Solution You can order Mounting Kit 1 from Winmate. Part No. 98K000A0005Y. Winmate Part RAM Mount Part Component Description Number Number Clamp Clamp base with 2.25” Ball Mounts - on the...
  • Page 58 7-inch Vehicle Mount Computer FM07A User Guide 4.3.2 Mounting Kit 2 – Drill Solution You can order Mounting Kit 2 from Winmate. Part No. 98K000A0006P Winmate Part RAM Mount Part Component Description Number Number RAM round base 3.68” Round Base with 2.25”...
  • Page 59 4.1 Insert the RAM arm over the ball on the vehicle RAM mount (shown here). 4.2 Insert the ball on the dock into the RAM arm and tighten the knob. 4.3.4 Mounting Kit 3 – Keyboard Mounting Installation You can order Mounting Kit 3 from Winmate. Part No. 98K000A000AO...
  • Page 60 7-inch Vehicle Mount Computer FM07A User Guide Winmate Part RAM Mount Component Description Number Part Number Winmate Keyboard 4 VESA Holes on the plate to Adapter Plate 82W709131700 device and 4 AMPS holes to (designed RAM Ball Winmate) Screw 913511101125...

  • Page 62: Appendix A: Product Specifications

    Appendix A: Product Specifications Appendix A: Product Specifications FM07A- 7-inch Vehicle Mount Computer Item Specifications System Processor Freescale i.MX 6 Dual Core, 1 GHz System Memory 1 GB LPDDR3 Storage 16 GB eMMc Operating System Android 6.0 Display Size / Technology 7"...
  • Page 63 7-inch Vehicle Mount Computer FM07A User Guide FM07A- 7-inch Vehicle Mount Computer Item Specifications Environment Considerations Operating Temperature -20°C to 60°C (-4° to 140° F) Humidity 10% to 95% RH, non-condensing IP Rating IP65 Shock MIL-STD-810G Method 516.6 Procedure I, 30 g for 18 ms, 300 m/s2 MIL-STD-810G Method 514.6 Procedure I, 1.60/ 1.96/ 2.18 g rms for XYZ/ 5-...
  • Page 64 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
