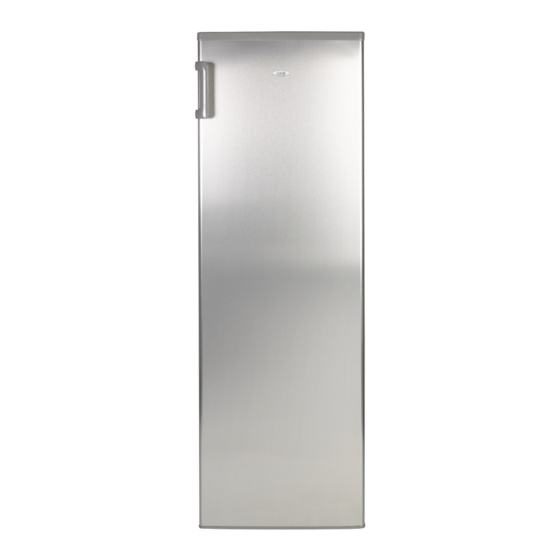

- Page 1 Tall Silver Larder Fridge Instruction Manual LTL55S12...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................9 Cleaning Before Use .............................. 9 Before Using Your Unit ............................9 Interior Accessories ..............................9 Product Overview ........................10 Operation ........................... 11 Switching On Your Unit ............................11 Adjusting the Temperature ..........................11 Noises Inside the Unit! ............................11... -
Page 4: Unpacking
Thank you for purchasing your new Logik Larder. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Location
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Stand the refrigerator, use a flat bladed screw driver to remove the 4 screw covers at the rear of the refrigerator lid. 3. Unscrew and life the refrigerator lid from the rear and remove it, then lift it. 4.
- Page 7 INSTALLATION 6. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts. 7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. 8.
- Page 8 INSTALLATION 10. With the reassembled top hinge located in the hole in the top inside left corner of the upper door, fix the top hinge using the 3 screws. Remove the decorative block of top cover to the other side. Replace the top cover using screws, replace the circular hole plugs.
-
Page 9: Levelling The Unit
INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 10: Product Overview
Product Overview Internal Light And Thermostat Control Dial Upper Adjustable Door Glass Shelves Shelves Salad Bin Cover Lower Door Shelf Salad Bin Adjustable Feet Egg Tray... -
Page 11: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off. -
Page 12: Shopping For Chilled Foods
Shopping for Chilled Foods • Take a quick look at the chilled food package and make sure it is in perfect condition. • Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold. -
Page 13: Cleaning
Cleaning Defrosting Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor. Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. Hold and unscrew the light bulb cover. 3. Remove the plastic light bulb cover. 4. -
Page 15: Specification
Specification Model LTL55S12 Fresh Food Storage Compartment 300L Storage Temperature 0-8 °C, average ≤ 4°C Energy Consumption 0.388 kWh / 24h Energy consumption 141 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 18 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Adjustable Glass Shelf 1055271 Salad Bin Cover 1055221 Salad Bin 1110574 Upper Door Shelf 1051907 Lower Door Shelf 1051908 Egg Tray 1051976...
