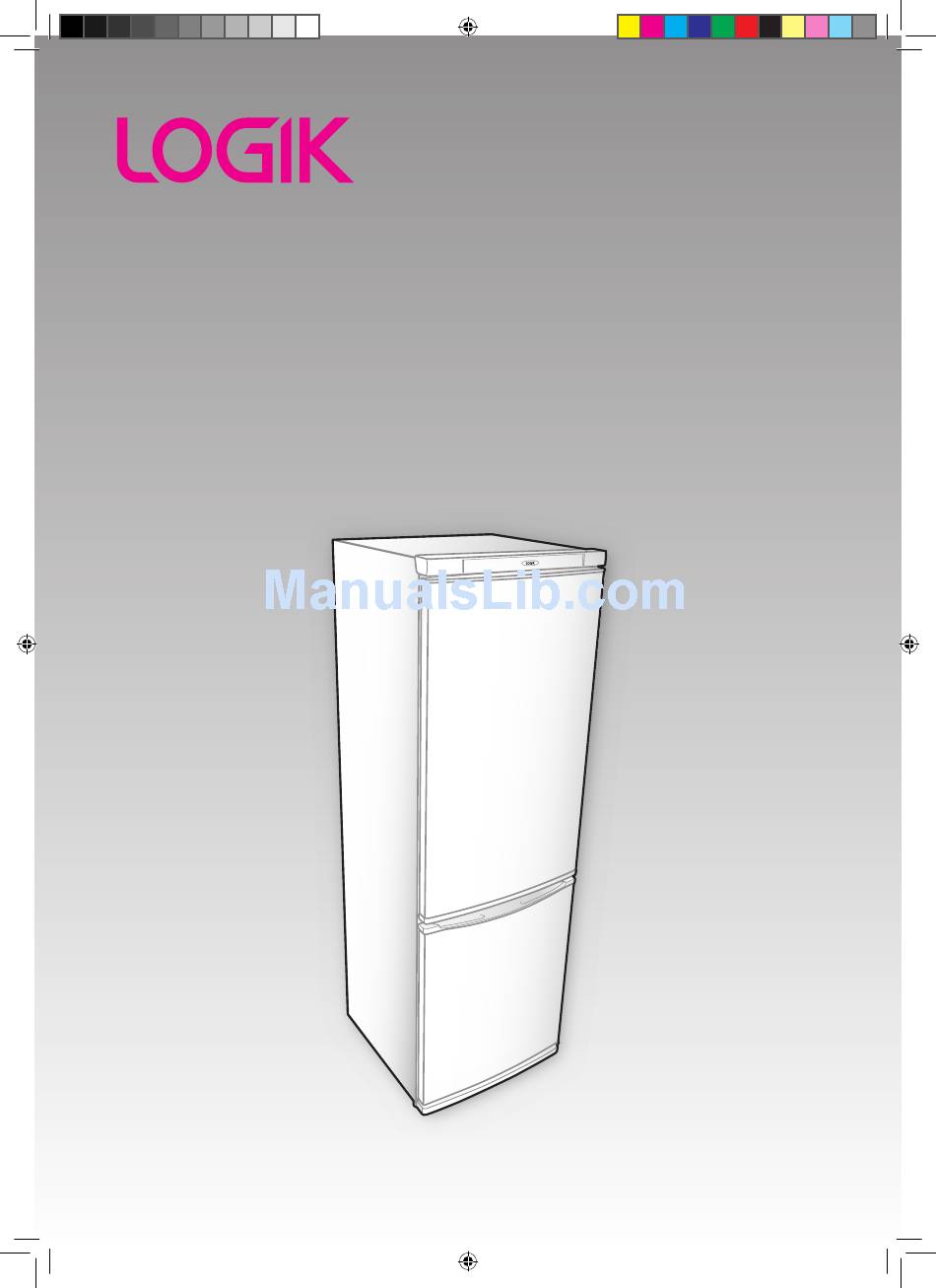

- Page 1 Fridge Freezer Instruction Manual LFC60W11 LFC60W11_IB_final110511.indd 1 11/05/2011 9:59 AM...
- Page 2 LFC60W11_IB_final110511.indd 2 11/05/2011 9:59 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................9 Cleaning Before Use .............................. 9 Before Using Your Unit ............................9 Product Overview ........................10 Operating Instructions ......................11 Switching Your Unit On ............................11 Adjusting the Temperature ..........................11 Noises Inside the Unit! ............................12... -
Page 4: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. You must spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You must read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator (must be at least 50 cm away). Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 3. Tip and support the unit (be careful not to damage the cooling circuit) to allow you to get your hands underneath the kickplate. Remove the kick plate by pulling the bottom down and forward off the fixing clips. 4.
- Page 7 INSTALLATION 9. Unscrew the two top hinge cover screws and remove. Using a craft knife carefully remove the section of the cover shown. Replace the top hinge cover and ensure the top hinge fixing holes are visible. Fix with the screws removed earlier.
- Page 8 INSTALLATION 14. Remove the fridge door top bushing and insert it into left hole. (The bushing key must be in the correct position to allow it to be inserted correctly.) 15. Unscrew the right door catcher and remove. Refit the left door catcher (You may need Unscrew to clear the fixing holes of excess foam insulation.) and screw down.
-
Page 9: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. -
Page 10: Product Overview
Product Overview Thermostat and Control Dial Fridge Door Shelves Fridge Glass Shelves Lower Fridge Shelf Vegetable Drawers Lower Fridge Door Shelf Small Freezer Drawers Freezer Door Large Freezer Drawer Ice Tray Egg Tray LFC60W11_IB_final110511.indd 10 11/05/2011 9:59 AM... -
Page 11: Operating Instructions
Operating Instructions Switching Your Unit On 1. Connect the mains cable plug to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 6 is the coldest and position 0 turns the unit off. -
Page 12: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 13: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 14: Cleaning
Cleaning Defrosting With proper use, there should not be any frost accumulated in the freezer compartment of this unit. However, in case of improper use (door left open) of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time if this occurs then defrost the unit fully as detailed below. -
Page 15: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect from the mains supply by removing the plug from the socket. 2. Hold both sides by the fixing clips, squeeze lightly to release the clips and lower the cover away from the bulb. -
Page 16: Specification
Specification Model LFC60W11 Overall Dimension (W x D x H) 595 x 649 x 1850 mm Total Gross Volume 335 L Fresh Food Storage Compartment 231 L Volume Frozen Food Storage Volume 75 L Defrosting Type No Frost Freezer: ≤ -18 °C, Storage Temperature Fridge: 0-8 °C, average ≤... -
Page 17: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. - Page 18 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 19 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Fridge Glass Shelf 47002779 Lower Fridge Shelf 47002780 Vegetable Drawer 42037484 Small Freezer Drawer 42037487 Large Freezer Drawer 42037485 Egg Tray 42000227...
