Summary of Contents for Logik LTT68S10

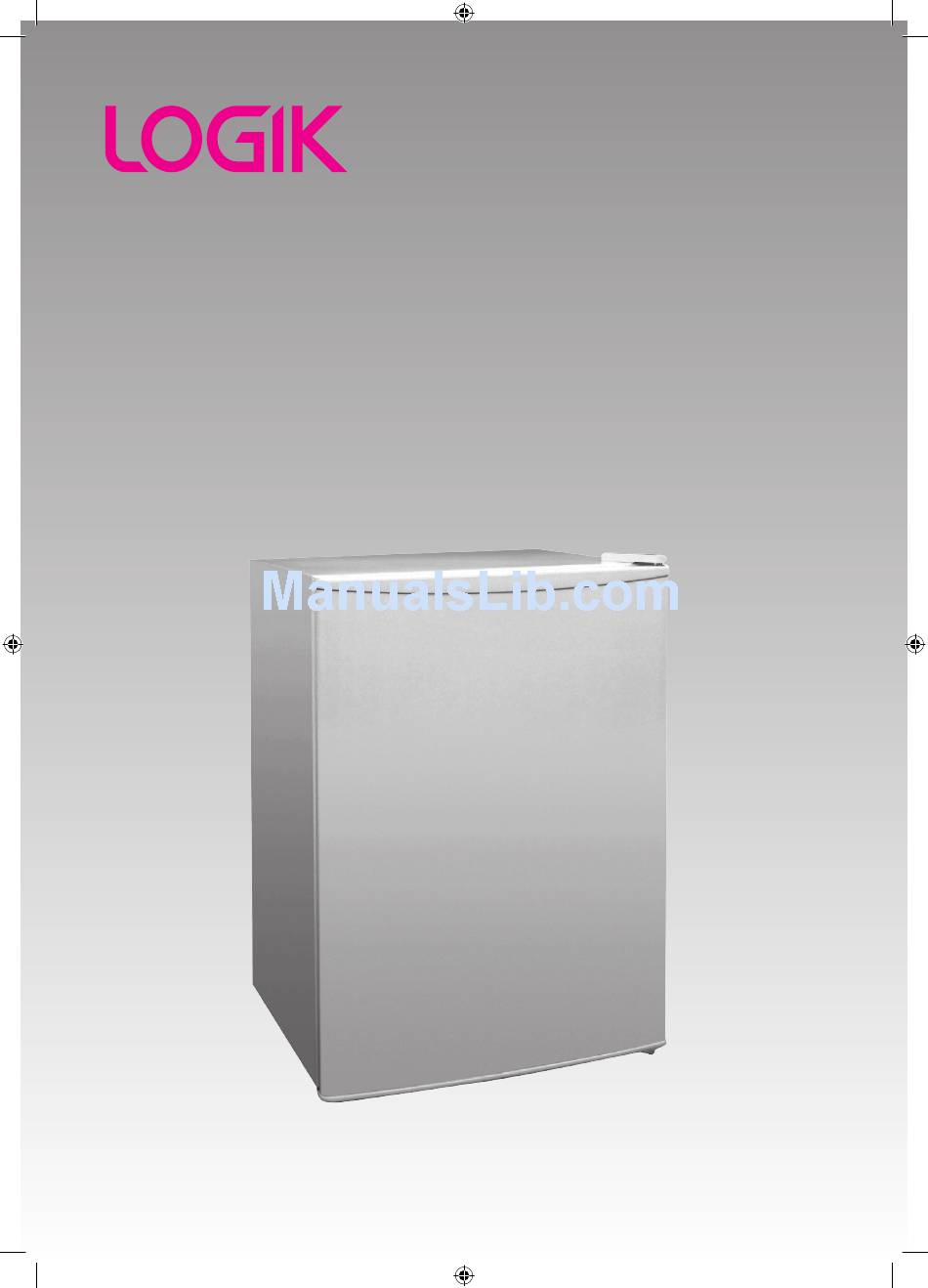

- Page 1 Table Top Fridge Instruction Manual LTT68S10 LTT68S10_IB_final100309.indd 1 09/03/2011 3:52 PM...
- Page 2 LTT68S10_IB_final100309.indd 2 09/03/2011 3:52 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................7 Cleaning Before Use .............................. 7 Before Using Your Unit ............................7 Product Overview ........................8 Operation ............................. 9 Switching On Your Unit ............................9 Adjusting the Temperature .......................... -
Page 4: Unpacking
Thank you for purchasing your new Logik Fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Undo the two screws from the bottom bracket. Remove both feet from the unit. 3. Place the two screws, the bottom bracket and the feet to one side. 4. Slide the door down about 15cm (6”) and off the top hinge pin. Lift it away from the unit.
-
Page 7: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 8: Product Overview
Product Overview Ice Box Thermostat Control Dial Adjustable Shelves Door Shelves Levelling Feet Drip Tray Ice Tray LTT68S10_IB_final100309.indd 8 09/03/2011 3:52 PM... -
Page 9: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the inside the unit next to the ice box. Connect the mains cable to the mains socket. 2. -
Page 10: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 11: Cleaning
Cleaning Defrosting Frost might build up in the unit after the it has been used for a period of time. Scrape away the frost using a plastic scraper. Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 12: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Servicing This unit should be serviced by an authorised engineer and only genuine spare parts should be used. -
Page 13: Specification
Specification Model LTT68S10 Overall Dimension (W x D x H) 472 x 450 x 632mm Total Gross Volume Fresh Food Storage Compartment Volume Defrosting Type Manual Defrost Storage Temperature 0-8 °C, average ≤ 4°C Energy Consumption 0.39kWh / 24h Energy Grading Power Consumption Features and specifications are subject to change without prior notice. -
Page 14: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 15 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 16 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LTT68S10-002) LTT68S10_IB_final100309.indd 16 09/03/2011 3:52 PM...
- Page 17 LTT68S10_IB_final100309.indd 17 09/03/2011 3:52 PM...
- Page 18 LTT68S10_IB_final100309.indd 18 09/03/2011 3:52 PM...
- Page 19 LTT68S10_IB_final100309.indd 19 09/03/2011 3:52 PM...
- Page 20 LTT68S10_IB_final100309.indd 20 09/03/2011 3:52 PM...
