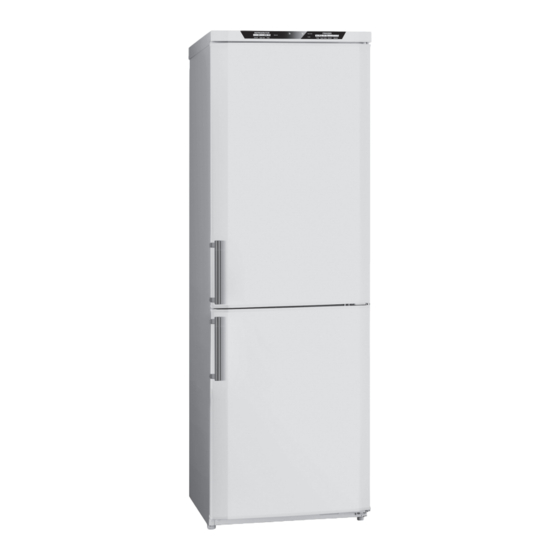

- Page 1 LOGIK LFC60W10 SKU: 154677 Refrigerator and freezer service manual RD-38WC4S （ BCD-295WY/HC ） MODEL : - 1 -...
-
Page 2: Table Of Contents
Content 1.Safety precautions ………………….……………………………………2~5 2.Specification……………………………………………………………..5~5 3.Parts identification…………...………………………………………….6~6 4.Cooling system diagram………….………………………….………….7~7 5.Circuit diagram………………………………………………..………..8~8 6.Maintenance service and Troubleshooting …………..……………….8~15 7.Quality information report……………………………….……………16~16 8.Exploded view and part list……………………………………………17~21 - 2 -... - Page 3 - 3 -...
- Page 4 - 4 -...
-
Page 5: Specification
2.Specification models RD-38WC4SFY net capacity (L) color white power supply(V/Hz) 220-240 Defrost power (W) net weight (kg) gross weight(kg) unit dimension (W*D*H)(mm) 595X664X1834 packing dimension (W*D*H)(mm) 643×703×1905 container quantity (PCS) noise 42.5 - 5 -... -
Page 6: Parts Identification
3.Parts identification - 6 -... -
Page 7: Cooling System Diagram
4.Cooling system diagram when the refrigeration is just powered on. The refrigerant flows in the sequence: Compressor Condenser Dry filter Capillary tube Evaporator . - 7 -... -
Page 8: Circuit Diagram
5.Circuit diagram 6.Maintenance service and Troubleshooting. TROUBLESHOOTING ◆ The solution for digital display code problem: There are total 2 sensors，one is near Evaporator which can be only seen when open wind channel plate in freezer chamber,this is evaporator temperature sensor. The other is in Freezer Chamber room，touching the temperature, which is temperature control capillary tube(the temperature sensor inside the cabinet). - Page 9 Both sensors are connected on the main board which realize the connection. So when display shows Erro problem, we need to check the sensor itself have problem or not，meanwhile, need to check the connect well or not between the sensors and main board. Detail method show below: The testing method of sensor：...
- Page 10 Using the multimeter with the ohm switch to measure the resistor of sensor, if sensor is bad ,change a new one. Or else ,go on next step. Measure the resistor of plug, If the resistance figure shows infinity, that means connection between the main board and plug have problem.
- Page 11 Remove the electron box cover Checking the connection of main board have problem or not. The solution for “E2”problem: Open the door and put out all the drawers Remove the wind channel plate in freezer chamber. Put off the foam - 11 -...
- Page 12 The location of the evaporator temperature sensor always fixed on the suction tube as attached (sometimes it fixed on the right middle of the evaporator). Take off the evaporator temperature sensor ,and Measure the resistor , if sensor is bad ,change a new one.
- Page 13 chamber 4.2 Is there multi-moisture food and too close to the back wall of the refrigerator? 4.3 Is the ambient temperature too low? 4.4 Is the electric parts on good condition, specially the thermostat wich will cause the unit non-stopping . 5.1 Is the refrigerator stably placed? 5.2 Does the refrigerator bump other objects? 5.3 Whether the internal accessory of the refrigerator is in the right place.
- Page 14 than norm. b, higher temperature of condenser. c, larger electric current of compressor d, there maybe ice on the suction tube. e, when gas is too much, some gas liquid might goes back into compressor, compressor will be damaged by liquid. The air in system will cause lower efficiency of cooling.
- Page 15 inception, after period of time the ice appears in the capillary and becomes more and more, till blocks the hole of capillary completely. In the moment you can find the ice on the evaporator defrosts. The noise of liquid flow disappears. The pressure of absorbing becomes negative.
-
Page 16: Quality Information Report
● In case of any detailed technical inf ormation please check with the technical specifications. 7. Quality information report Quality information Thank you very much for purchasing our products. In order to provide you with more satisfied products, please kindly fill in the questionnaire as the items indicated below. We shall strive for best to optimize our products based on your suggestion。...
