Prestige APS57TM Installation And Reference Manual

Vehicle remote start / keyless system
Hide thumbs Also See for APS57TM:

Advertisement

Quick Links

Download this manual
Thank you for trus�ng Pres�ge products! If you are a consumer, please note:
Professional installation is strongly recommended.
This manual assumes the installer has adequate knowledge of the following exper�se. Therefore, it does not
cover these topics in detail:
•
12-volt electronics
•
Testing and verifying circuits
•
Making safe and lasting wiring connections
•
Factory ignition, power, lighting, data bus and sensing systems
•
Factory systems and components to avoid
•
Safe wire routing, circuit protection and product placement
•
Access to vehicle-specific technical information
In addi�on, this manual assumes the installer has the proper tools, skill and facilities to perform a professional installa�on.
Performing an improper installation could result in damage to the vehicle or its components, improper system function,
unsafe vehicle operation or physical injury. Such instances would not be covered by the vehicle manufacturer's warranty,
nor by Voxx Electronics, Inc.
Detailed Descriptions
2
Wire Harness Colors and Functions
Power Connector
2
No�fica�on Connector
3
Input / Output Connector
4
6
External Components
RF Antenna Kit
6
Data Bus Interface (DBI)
6
Telema�cs
6
Weblink Programming
6
7
Setup Options
7
Remote Programming
Keyless Control
8
Remote Start Control
10
14
System Operation
14
Remote Opera�on
2020 Voxx Electronics Corpora�on. All rights reserved.
APS57TM
Vehicle Remote Start / Keyless System
Installation and Reference Guide
Quick Reference
15
System Programming
15
Programming Mode Entry / Exit
Feature Bank Op�ons
16
17
Data Port Protocol
17
Tach Func�on
17
Alarm Override
Silent Lock and Unlock
18
User Selectable LED
18
18
System Diagnostics
Troubleshoo�ng Remote Start
18
19
Wiring Diagrams
Door Lock Connec�ons
19
Full System Connec�ons
22
APS57TM_RevD_07/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the APS57TM and is the answer not in the manual?

Questions and answers

Related Manuals for Prestige APS57TM

Summary of Contents for Prestige APS57TM

  • Page 1 APS57TM Vehicle Remote Start / Keyless System Installation and Reference Guide Thank you for trus�ng Pres�ge products! If you are a consumer, please note: Professional installation is strongly recommended. This manual assumes the installer has adequate knowledge of the following exper�se. Therefore, it does not cover these topics in detail: •...
  • Page 2 Detailed Descriptions: Wire Harness Colors and Func�ons Power Connector (6-pin High-Current Connector) See page 22 for the full system diagram. These wires are listed in order of their placement in the harness connector. 1. YELLOW – Starter Output for Remote Start (+) The YELLOW wire supplies 12-Volt (+) to the vehicle’s starter wire when remote start is enabled, and turns off once the vehicle is started.
  • Page 3 Detailed Descriptions: Wire Harness Colors and Func�ons Notification Connector (4-pin connector) See page 22 for the full system diagram. These wires are listed in order of their placement in the harness connector. 1. WHITE – Parking Light Relay Output (Internal Relay Pin 30) At its default setting, the WHITE wire supplies 12-Volt (+) or Ground (-) to the vehicle's park light wire based on the connec�on of the relay input (WHITE/RED wire).
  • Page 4 Detailed Descriptions: Wire Harness Colors and Func�ons Input / Output Connector (14-pin connector) See page 22 for the full system diagram. These wires are listed in order of their placement in the harness connector. 3 5 7 9 11 13 4 6 8 10 12 14 1.
  • Page 5 Detailed Descriptions: Wire Harness Colors and Func�ons Input / Output Connector (14-pin connector) (Cont.) See page 22 for the full system diagram. These wires are listed in order of their placement in the harness connector. 10. DARK BLUE – Trunk Release Output (-) At its default setting, the DARK BLUE wire connects to the vehicle trunk release wire or relay and supplies Ground (-) when ac�vated from the remote control.
  • Page 6 Detailed Descriptions: External Components RF Antenna / LED / Programming Port The long-range antenna kit (included) plugs into a 6-pin connector on the Pres�ge module. 1. Mount the supplied antenna/receiver to a clear spot on the vehicle’s windshield that will not block the driver’s vision.
  • Page 7 Detailed Descriptions: Setup Op�ons Bank 1: Add / Remove Remote Controls See page 15 for Programming Instruc�on. Remote programming is located in Feature Bank 1. This system will Auto Program basic func�ons of the remote with one (1) bu�on press. Basic func�ons are channels 1-3, Lock, Unlock, and Trunk / Start. Feature Bank 1 Descrip�on 1 Auto Program/Lock...
  • Page 8 Detailed Descriptions: Setup Op�ons Keyless Control (Bank 2) See page 15 for Programming Instruc�on. Op�ons Feature Bank 2 1 Chirp 2 Chirp 3 Chirp 4 Chirp 5 Chirp 6 Chirp 1 Lock / Unlock Func�on 500ms 3.5sec 500ms L, DBL UL DBL L, 500ms UL DBL L, DBL UL 500ms L, 350ms UL...
  • Page 9 Detailed Descriptions: Setup Op�ons Keyless Control (Bank 2) (cont.) See page 15 for Programming Instruc�on. Feature 8: Horn Output Duration Func�on: Set the horn output to activate for a set time. Setting Choices: • Option 1 - Output pulses for 16 milliseconds. •...
  • Page 10 Detailed Descriptions: Setup Op�ons Remote Start Control (Bank 3) See page 15 for Programming Instruc�on. Op�ons Feature Bank 3 1 Chirp 2 Chirp 3 Chirp 4 chirp 5 Chirp 6 Chirp 1 Defrost Output 2 RS Start No�fica�on 3 RS Run�me 15min 20min 45min...
  • Page 11 Detailed Descriptions: Setup Op�ons Remote Start Control (Bank 3) (cont.) See page 15 for Programming Instruc�on. Feature 5: Engine Confirmation Func�on: Determine how the system knows if remote start was successful. Setting Choices: • Option 1 - Determined by measurement from the Purple/White Tach Input wire. •...
  • Page 12 Detailed Descriptions: Setup Op�ons Remote Start Control (Bank 3) (cont.) See page 15 for Programming Instruc�on. Feature 12: Diesel (Pre-Start) Delay Func�on: After remote start ignition is activated, set delay of crank to accommodate diesel engines. Setting Choices: • Option 1 - Vehicle starts immediately a�er remote start igni�on. •...
  • Page 13 Detailed Descriptions: Setup Op�ons Remote Start Control (Bank 3) (Cont.) See page 15 for Programming Instruc�on. Feature 20: Pulse During Crank Output Function (BLACK/YELLOW) Func�on: Set the functionality of the programmable output. Setting Choices: • Option 1 - Pulse During Crank. •...

  • Page 14: Remote Control Operation

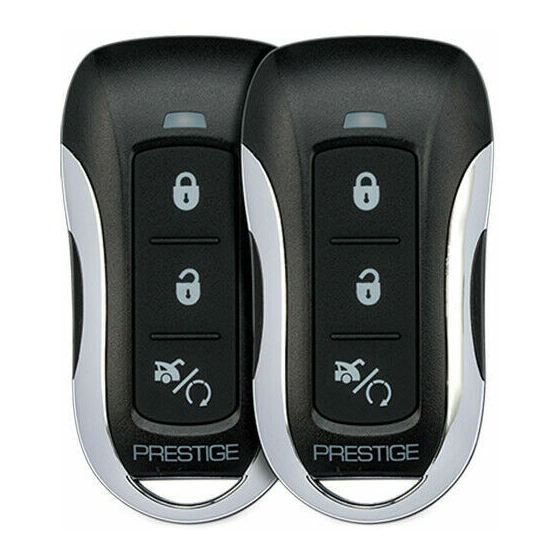

    Detailed Descriptions: System Opera�on Remote Control Operation This system includes two (2) remote controls. The matrix below describes the basic func�ons of each remote. See Owners Guide for complete remote opera�on matrix. Three Bu�on Remotes (1-Way) Button Action Function Press 1x Lock Hold 3 Seconds Panic ON/OFF...
  • Page 15 Quick Reference: System Programming Programming Mode Entry and Exit Procedure Once the system is installed and powered up, you will use the vehicle igni�on, override bu�on and a programmed remote control to set all system op�ons. Feature op�ons are divided into categories, or Banks, as described throughout this sec�on.
  • Page 16 Quick Reference: System Programming Bank 1: Transmitter Programming Options See page 7 for a detailed descrip�on. Feature Bank 1 Descrip�on 1 Auto Program/Lock Press Lock bu�on on remote 2 Unlock Press Unlock bu�on on remote 3 Trunk/Start Press Start bu�on on remote Bank 2: Keyless Options See pages 8-9 for detailed descrip�ons.
  • Page 17 Quick Reference: System Programming & Diagnos�cs Data Port Protocol Selection The default data port protocol of this model is ADS (iDatalink 2-Way). This model is capable of detec�ng the correct data port protocol (ADS or DBI) and automa�cally configuring Feature Bank 2; Feature 18. To ini�alize the detec�on procedure: 1.

  • Page 18: Silent Lock And Unlock

    Quick Reference: System Programming & Diagnos�cs Silent Lock and Unlock Program the Pres�ge system to Lock and Unlock without no�fica�on beeps. 1. Turn the igni�on ON then OFF. 2. Press and release the valet bu�on three (3) �mes. The system will respond with one (1) beep for ON or two (2) beeps for OFF.
  • Page 19 Quick Reference: Wiring Diagrams Door Lock Connections Negative-Trigger Door Locks Verification: The vehicle wires register Ground when the Lock and Unlock switches are ac�vated. RED ( - ) Lock Output Lock Vehicle Door Lock Control Relays Unlock GREEN ( - ) Unlock Output Positive-Trigger Door Locks Verification: The vehicle wires register 12V+ when the Lock and Unlock switches are ac�vated.
  • Page 20 Quick Reference: Wiring Diagrams Door Lock Connections Single-Wire Negative Multiplex Door Locks (Relays required) Verification: The vehicle wire registers variable Ground values when the Lock and Unlock switches are ac�vated. Please consult the vehicle-specific wire and loca�on chart for resistor values. Ground Fused +12 Volt RED ( - ) Lock Output...
  • Page 21 Quick Reference: Wiring Diagrams Door Lock Connections Reverse-Polarity Door Locks (Relays required) Verification: The vehicle wires rest at Ground and register 12V+ when the Lock and Unlock switches are ac�vated. Fused +12 Volt Battery Souce RED ( - ) Lock Output Lock To Door Lock Motor Unlock...
  • Page 22 4180070 183BP 183BP Green/Orange Tach Input Black/Yellow Pulse During Crank Output (-) Green/Yellow Glow Plug Input (+) Black/Red Pulse A er Shutdown Output (-) Dk. Blue Trunk Output (-) Black/Blue Factory Disarm Output (-) Brown/Black Brake Input (+) Black/Lt. Green Factory Arm Output (-) Dk.
