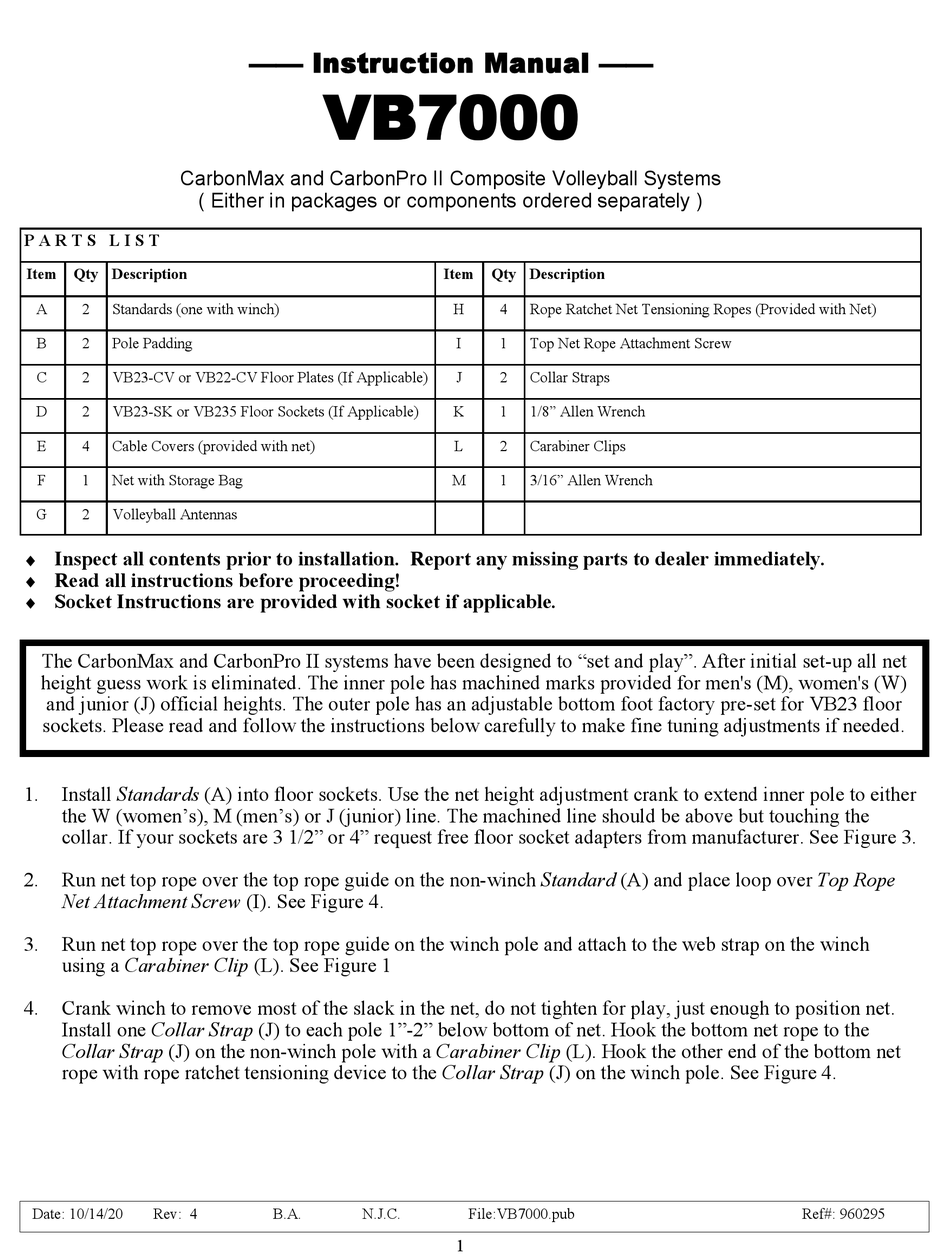

Bison VB7000 Instruction Manual

CarbonMax and CarbonPro II Composite Volleyball Systems
( Either in packages or components ordered separately )
P A R T S L I S T
Item Qty Description
A 2 Standards (one with winch)
B 2 Pole Padding
C 2 VB23-CV or VB22-CV Floor Plates (If Applicable)
D 2 VB23-SK or VB235 Floor Sockets (If Applicable)
E 4 Cable Covers (provided with net)
F 1 Net with Storage Bag
G 2 Volleyball Antennas
Inspect all contents prior to installation. Report any missing parts to dealer immediately.

Read all instructions before proceeding!

Socket Instructions are provided with socket if applicable.

The CarbonMax and CarbonPro II systems have been designed to "set and play". After initial set-up all net
height guess work is eliminated. The inner pole has machined marks provided for men's (M), women's (W)
and junior (J) official heights. The outer pole has an adjustable bottom foot factory pre-set for VB23 floor
sockets. Please read and follow the instructions below carefully to make fine tuning adjustments if needed.
1. Install Standards (A) into floor sockets. Use the net height adjustment crank to extend inner pole to either
the W (women's), M (men's) or J (junior) line. The machined line should be above but touching the
collar. If your sockets are 3 1/2" or 4" request free floor socket adapters from manufacturer. See Figure 3.
2. Run net top rope over the top rope guide on the non-winch Standard (A) and place loop over Top Rope
Net Attachment Screw (I). See Figure 4.
3. Run net top rope over the top rope guide on the winch pole and attach to the web strap on the winch
using a Carabiner Clip (L). See Figure 1
4. Crank winch to remove most of the slack in the net, do not tighten for play, just enough to position net.
Install one Collar Strap (J) to each pole 1"-2" below bottom of net. Hook the bottom net rope to the
Collar Strap (J) on the non-winch pole with a Carabiner Clip (L). Hook the other end of the bottom net
rope with rope ratchet tensioning device to the Collar Strap (J) on the winch pole. See Figure 4.
Date: 10/14/20 Rev: 4
—— Instruction Manual ——
VB7000
B.A. N.J.C.
Item Qty Description
H 4 Rope Ratchet Net Tensioning Ropes (Provided with Net)
I 1 Top Net Rope Attachment Screw
J 2 Collar Straps
K 1 1/8" Allen Wrench
L 2 Carabiner Clips
M 1 3/16" Allen Wrench
File:VB7000.pub
1
Ref#: 960295
