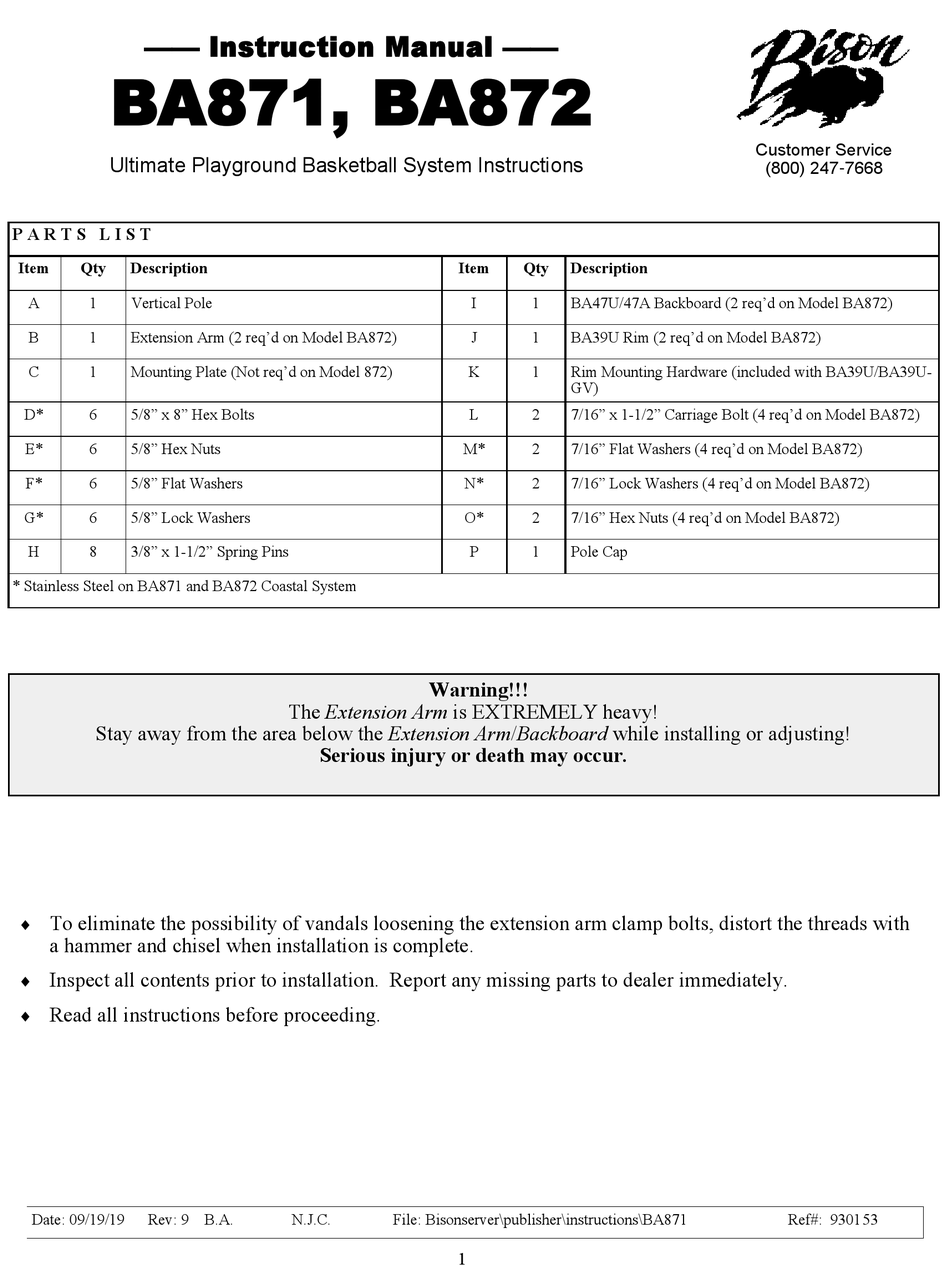

—— Instruction Manual ——
BA871, BA872
Ultimate Playground Basketball System Instructions
P A R T S L I S T
Item
Qty
Description
A
1
Vertical Pole
B
1
Extension Arm (2 req'd on Model BA872)
C
1
Mounting Plate (Not req'd on Model 872)
D*
6
5/8" x 8" Hex Bolts
E*
6
5/8" Hex Nuts
F*
6
5/8" Flat Washers
G*
6
5/8" Lock Washers
H
8
3/8" x 1-1/2" Spring Pins
* Stainless Steel on BA871 and BA872 Coastal System
Stay away from the area below the Extension Arm/Backboard while installing or adjusting!
To eliminate the possibility of vandals loosening the extension arm clamp bolts, distort the threads with
a hammer and chisel when installation is complete.
Inspect all contents prior to installation. Report any missing parts to dealer immediately.
Read all instructions before proceeding.
Date: 09/19/19
Rev: 9 B.A.
Item
M*
N*
O*
Warning!!!
The Extension Arm is EXTREMELY heavy!
Serious injury or death may occur.
N.J.C.
File: Bisonserver\publisher\instructions\BA871
1
Qty
Description
I
1
BA47U/47A Backboard (2 req'd on Model BA872)
J
1
BA39U Rim (2 req'd on Model BA872)
K
1
Rim Mounting Hardware (included with BA39U/BA39U-
GV)
L
2
7/16" x 1-1/2" Carriage Bolt (4 req'd on Model BA872)
2
7/16" Flat Washers (4 req'd on Model BA872)
2
7/16" Lock Washers (4 req'd on Model BA872)
2
7/16" Hex Nuts (4 req'd on Model BA872)
P
1
Pole Cap
