Introduction
Features and Functions
The iLux
units, CLSI-C6 and CLSI-C6M, are wall-
mounted complete integrated lighting systems that can
function as standalone devices and/or be part of a
®
Crestron
solution total control system network
®
(Cresnet
). The units are functionally identical except that
the CLSI-C6M includes a built-in motion sensor.

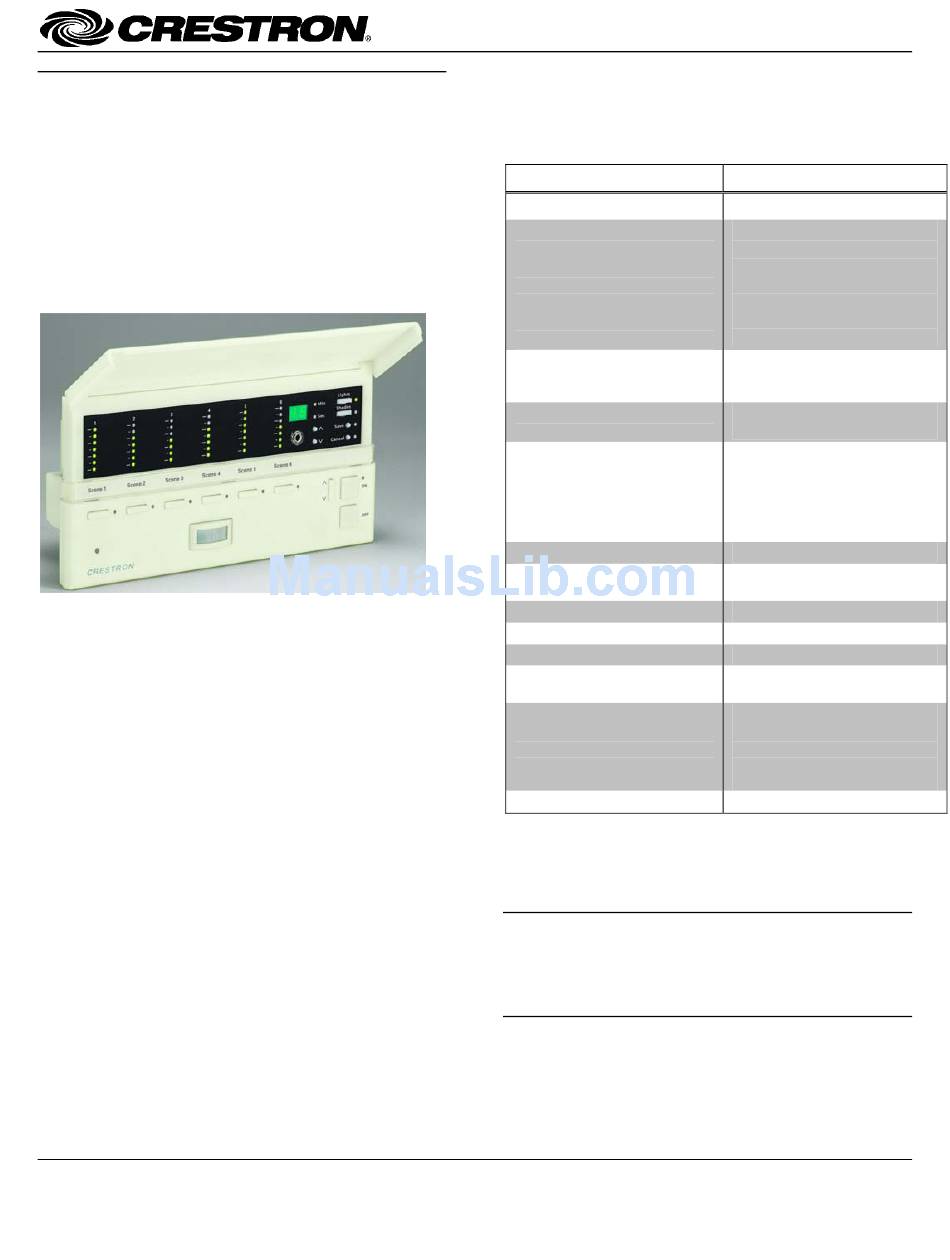

CLSI-C6M with Cover Open, Shown in Almond
Each unit provides automated control of up to six
channels of lighting loads, including incandescent,
magnetic low-voltage, neon/cold cathode, and non-
dimmable loads. Each unit also provides automated
control of up to six groups of shade and drape controllers
for motorized window treatments, screens, and lifts.
Front panel operation provides manual control of lighting
loads and shade groups as well as access to up to sixteen
scenes (lighting level/shade position combinations).
A built-in IR receiver allows for wireless operation using
an optional infrared remote generating standard RC5
commands; a built-in motion detector (CLSI-C6M only)
enables automated control based on room occupancy.
Up to 16 Crestron keypads (sold separately) can be used
with each unit for control of rooms that have several
entrances or work areas. Each unit also supports up to
eight additional CLSI-C6 units, enabling systems of up to
54 lighting channels and 54 shade groups.
Each unit provides control system integration through two
separate Cresnet control networks; one for local devices
and one for connection to a 2-Series control system.
Each unit is available in three colors: almond, black, or
white. The letter at the end of the product name, 'A', 'B',
or 'W', denotes the color (e.g., a CLSI-C6MA is an
almond unit).
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
iLux
Lighting Systems
Specifications
Following are specifications for the iLux units.
CLSI-C6 & CLSI-C6M Specifications
SPECIFICATION
Power Requirements
Load Ratings
Max load per channel:
Min load per channel:
Max load per unit:
Load Types
IR Receiver
Motion Detector
(CLSI-C6M only)
Type
Range
Default Net ID
Control System Update Files
2-Series Control System
Firmware
Cooling Requirement
Environmental Temperature
Humidity
Overall Dimensions:
Height
Width
Depth
Weight
1.
The latest versions can be obtained from the Crestron website. Refer
to NOTE after last footnote.
2.
Crestron 2-Series control systems include the AV2 and PRO2. Consult
the latest Crestron Product Catalog for a complete list of 2-Series
control systems.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Installation Guide – DOC. 6413A
DETAILS
Line Power, 230 VAC, 50/60Hz
800 W/VA
(3.5 Amps @ 230 VAC)
25 W/VA
(0.108 Amps @ 230 VAC)
2300 W/VA
(10 Amps @ 230 VAC)
Incandescent, magnetic low
voltage, neon/cold cathode, and
non-dim lighting.
For use with Crestron IR remote
(sold separately).
Infrared
20 to 30 feet at 4-foot elevation
(6 to 9 meters at 1.2 meter
elevation)
1F
1, 2
Version 2.004.CUZ or later
CLSI-C6.v1.02.02.upg or later
63 BTU/Hr (approximate)
32° to 104°F (0° to 40°C)
10% to 90% RH
(non-condensing)
4.48 in (11.38 cm)
8.89 in (22.58 cm)
2.47 in (6.25 cm) for CLSI-C6
2.60 in (6.61 cm) for CLSI-C6M
22.8 oz (646.37 g)
(2014211)
08.06
Specifications subject to
change without notice.
